Model
Power source
Input power (IEC)
Mains lead length
Radius of operation
Net weight
Dimensions (L×W×H)
Attachments:
Dusting brush
Crevice nozzle
Extension wand
Mini turbine nozzle
Attachment holder
Specifications are subject to change Without notice for further improvement
MC-E4101
MC-E4103
Destination : Europe
MC-E4101
230-240V
50Hz
1400-1500W
6.7m
7m
6.5kg
330×320×1100
*
*
*
-
-
© 2005 Matsushita Electric Industrial Co., Ltd. All
rights
distribution is a violation of law.
ORDER NO.ECD0503003C2
Vacuum Cleaner
MC-E4103
230-240V
50Hz
1400-1500W
6.7m
7m
6.5kg
330×320×1100
*
*
*
*
*
reserved.
Unauthorized
copying
and
Advertisement
Table of Contents
Related Manuals for Panasonic MC-E4101
Summary of Contents for Panasonic MC-E4101
-

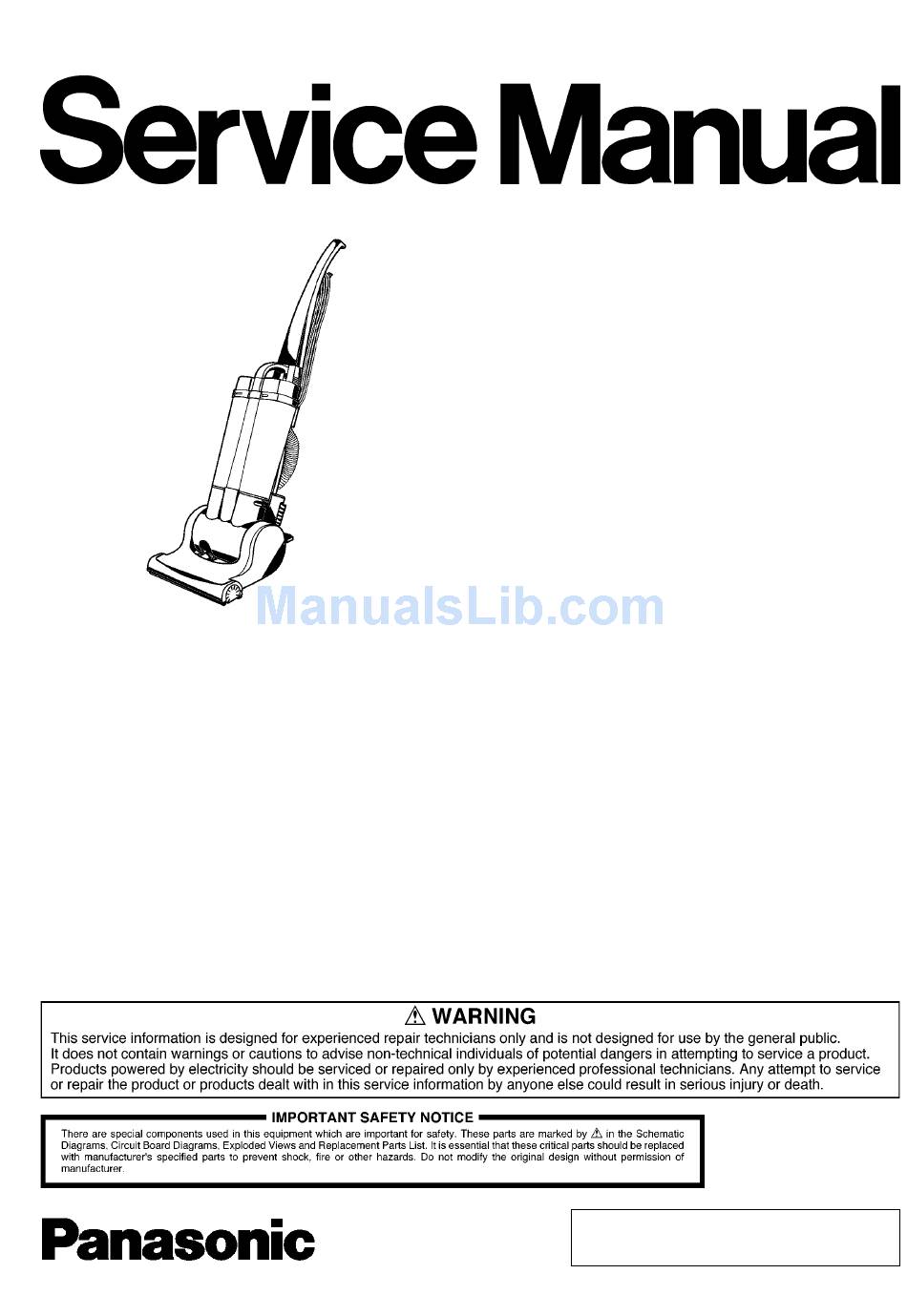

Page 1: Vacuum Cleaner
ORDER NO.ECD0503003C2 Vacuum Cleaner MC-E4101 MC-E4103 Destination : Europe Model MC-E4101 MC-E4103 Power source 230-240V 230-240V 50Hz 50Hz Input power (IEC) 1400-1500W 1400-1500W Mains lead length 6.7m 6.7m Radius of operation Net weight 6.5kg 6.5kg Dimensions (L×W×H) 330×320×1100 330×320×1100 Attachments:... -
Page 2: Pictorial Diagram
1 PICTORIAL DIAGRAM MC-E4001/MC-E4003 2 SCHEMATIC DIAGRAM MC-E4001/MC-E4003... -
Page 3: Replacement Of Main Parts
3.2. BEATER BAR BELT 3 REPLACEMENT OF MAIN PARTS 1. Remove the base plate and motor shaft belt as explained previously in paragraph 3.1 Motor shaft belt, point 1-2. IMPORTANT: Before replacing part always 2. Lift the beater bar assembly and remove the belt from the DISCONNECT THE CLEANER FROM THE ELECTRIClTY beater bar pulley and motor pulley.(Fig.3) SUPPLY. - Page 4 3.3. BEATER BAR ASSEMBLY 3.4. MOTOR PULLEY UNlT 1. Remove the base plate as explained previously in 1. Remove the base plate as explained previously in paragraph 3.1 Motor shaft belt, point 1. paragraph 3.1 Motor shaft belt, point 1. 2.
- Page 5 3.5. MOTOR 5. Take out the motor and remove two lead wires. 1. Remove base plate, pedal and motor pulley as explained previously in paragraph 3.4 Motor pulley unit, points 1-4. 2. Insert a flat-head screwdriver between nozzle housing and pry out the plastic shaft.
-
Page 6: Carbon Brush
3.6. CARBON BRUSH 4. Replace the carbon brush holder with new one and insert NOTE: Replace both carbon brushes at the same time. into the motor. (Fig.14) 1. Remove upper body and take out the motor as explained previously in paragraph 3.5 Motor, points 1-4. 2. - Page 7 3. Remove the thermal cut-out connection of P.C.B. (Power 3. Take out main fuse unit and remove lead wires P.C.B.) (Fig.16) connections. (Fig.19) (and 3 gaick connect terminals from on-off switch and P.C.B unit.) 4. Replace the thermal cut-out with a new one and it connect both P.C.B.
-
Page 8: Mains Lead
3.9. MAINS LEAD 3.10. ON/OFF SWlTCH 1. Remove hose end and front body as explained previously in 1. Remove hose end and front body as explained previously in paragraph 3.8 MAIN FUSE. paragraph 3.8 MAIN FUSE. 2. Remove mains lead connections and take it out. (Fig. 20) 2. -
Page 9: Exploded View (Body Unit)
4 EXPLODED VIEW (BODY UNIT) MC-E4101/E4103... -
Page 10: Parts List (Body Unit)
5 PARTS LIST (BODY UNIT) safety Ref. No. Part No. Part Name & Description Remarks AMC95B-XD0AE Handle unit MC-E4101 AMC95B-XD0KE Handle unit MC-E4103 AMC32R-XD04E Attachment holder AMC93E-XD0K8 Main lead(Power cord) AMC61R-XD04E Crevice nozzle AMC40P-XD04E Extention wand AMC88R-XD04E Dusting brush unit... - Page 11 6 EXPLODED VIEW (DUST COMPARTMENT ASSEMBLY) 7 PARTS LIST (DUST COMPARTMENT ASSEMBLY) safety Ref. No. Part No. Part Name & Description Remarks AMC93K-XD0AE Dust cover assy MC-E4101 AMC93K-XD0SE Dust cover assy MC-E4103 AMC07Z-XD00E Caution label A AMC96K-XL03E Upper filter unit AMC0HK-XL00E...
-
Page 12: Troubleshooting Guide
8 TROUBLE SHOOTING GUIDE CONDITlON CHECK POINT METHOD OF INSPECTlON CAUSE/REMEDY Motor fails to rotate. Plug (fuse-1ink) Check fuse continuity. lf there is no continuity, replace it. (no noise is heard at all). (UK, lRLonly) Main fuse Check main fuse continuity. lf main fuse is blown, Check if there is any short-circuit before replacing it. - Page 13 9 PACKING INSTRUCTIONS and ATTACHMENTS MC-E4101/MC-E4103...
-
Page 14: Packing List
10 PACKING LIST safety Ref. No. Part No. Part Name & Description Remarks AMC61Z-XC00E Individual carton MC-E4101 AMC61Z-XD00E Individual carton MC-E4103 AMC87J-XD00E Cushion A unit AMC0TZ-XD00E Cushion C AMC75Z-XD00E Cushion plate AMC88J-XD00E Cushion B unit AMC72Z-XD00E Cushion plate A AMC46Z-XD00E...
