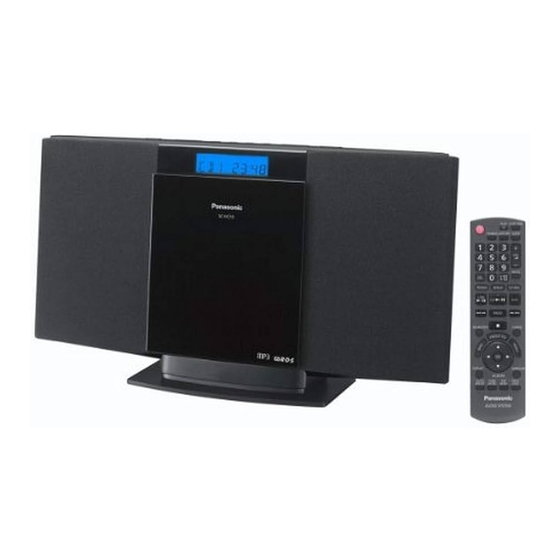

Panasonic SC-HC10 Operating Instructions

Changing the main unit and remote
9
control mode
The remote control and main unit are factory-set to "REMOTE 1" mode.
If you find the remote control unintentionally also controls other equipment, you can switch to operate in
"REMOTE 2" mode.
To switch to "REMOTE 2" mode (by main unit To return to "REMOTE 1" mode
only)
Repeat the steps (➡ left) but replace [2] with [1].
 Press [FM/AM/AUX] to select ''AUX''.
("REMOTE 1" will be displayed.)
 Press and hold [FM/AM/AUX] and then press
[2] until "REMOTE 2" is displayed.
 Press and hold [OK] and [2] for at least 2
seconds.
10
Caution for AC Mains Lead
For your safety, please read the following text The wire which is coloured Blue must be connected
carefully. to the terminal which is marked with the letter N or
coloured Black or Blue.
This appliance is supplied with a moulded three pin
The wire which is coloured Brown must be
mains plug for your safety and convenience.
connected to the terminal which is marked with the
A 5-ampere fuse is fitted in this plug.
letter L or coloured Brown or Red.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
WARNING: DO NOT CONNECT EITHER
and that it is approved by ASTA or BSI to BS1362.
WIRE TO THE EARTH TERMINAL WHICH
Check for the ASTA mark or the BSI mark on
IS MARKED WITH THE LETTER E, BY THE
the body of the fuse.
EARTH SYMBOL OR COLOURED GREEN
If the plug contains a removable fuse cover you OR GREEN/YELLOW.
must ensure that it is refitted when the fuse is
THIS PLUG IS NOT WATERPROOF–KEEP DRY.
replaced.
Before use
If you lose the fuse cover the plug must not be used
Remove the connector cover.
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
How to replace the fuse
your local dealer.
The location of the fuse differ according to the type
of AC mains plug (figures A and B). Confirm the AC
CAUTION!
mains plug fitted and follow the instructions below.
IF THE FITTED MOULDED PLUG IS
Illustrations may differ from actual AC mains plug.
UNSUITABLE FOR THE SOCKET OUTLET IN
YOUR HOME THEN THE FUSE SHOULD BE
1. Open the fuse cover with a screwdriver.
REMOVED AND THE PLUG CUT OFF AND
Figure A Figure B
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE
ELECTRICAL SHOCK IF THE CUT OFF PLUG
IS INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the
wiring code as stated below.
If in any doubt please consult a qualified electrician.
2. Replace the fuse and close or attach the fuse
IMPORTANT
cover.
The wires in this mains lead are coloured in
Figure A Figure B
accordance with the following code:
Blue: Neutral, Brown: Live.
Fuse
As these colours may not correspond with the
(5 ampere)
coloured markings identifying the terminals in your
plug, proceed as follows:
11
Specifications
g AMPLIFIER SECTION g SPEAKER SECTION
RMS Output Power Stereo mode Type 1 way, 1 speaker system (Bass reflex)
Front Ch (both ch driven) Speaker unit(s)
5 W per channel (6 Ω), 1 kHz, 10 % THD
Full range 8 cm Cone type
Phone jack Impedance
Terminal Stereo, 3.5 mm jack Output sound pressure 83 dB/W (1.0 m)
Output level (CD, 1 kHz, -20 dB) Frequency range 60 Hz to 25 kHz (-16 dB)
max. 0.385 mW + 0.385 mW, 32 Ω 90 Hz to 22 kHz (-10 dB)
Aux (Rear)
Sensitivity g USB PORT
Normal level 630 mV, 12.4 kΩ USB Standard USB 2.0 full speed
High level 100 mV, 12.4 kΩ Media file format support
Terminal USB device file system
Stereo, 3.5 mm jack
USB port power
g TUNER SECTION Bit Rate 16 kbps to 320 kbps
Preset Memory FM 30 stations
AM 15 stations g GENERAL
Frequency Modulation (FM) Power supply AC 220 to 240 V, 50 Hz
Frequency range Power consumption
87.50 MHz to 108.00 MHz (50 kHz step) Dimensions (W x H x D)
Antenna terminals 75 Ω (unbalanced)
384 mm x 214 mm x 112 mm
Amplitude Modulation (AM) (D = 69 mm minimum)
Frequency range Mass Approx. 2.0 kg
522 kHz to 1629 kHz (9 kHz step) Operating temperature range 0 °C to +35 °C
520 kHz to 1630 kHz (10 kHz step) Operating humidity range
35 % to 80 % RH (no condensation)
g DISC SECTION
Power consumption in standby mode:
Disc played [8 cm or 12 cm]
0.3 W (approx.)
(1) CD-Audio (CD-DA)
(2) CD-R/RW (CD-DA, MP3)
• Specifications are subject to change without
(3) MP3*
notice.
* MPEG-1 Layer 3, MPEG-2 Layer 3
• Total harmonic distortion is measured by the
Pick up
digital spectrum analyser.
Wavelength 785 nm
Laser power CLASS 1
Audio Output (Disc)
Number of channels
FL, FR, 2 channel
12
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check
points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for
instructions.
g Common problems "ADJUST TIMER"
• Play timer is not set. Adjust the play timer
Incorrect display or play will not start
accordingly.
• You have not inserted the disc properly. Insert
it correctly. "PGM FULL"
• The disc is scratched or dirty (Tracks skipped). • The number of programmed tracks is limited to
• There is moisture on the lens. Wait for about an 24. No further tracks can be programmed.
hour and then try again.
"NO PLAY"
MP3 cannot be read • A CD-ROM disc that is not in CD-DA or MP3
• You may not be able to play MP3 if you have format is inserted. It cannot be played.
copied a multi-session disc that has no data
"ERROR"
between sessions.
• Incorrect operation is performed. Read the
• When creating a multi-session disc, it is
instructions and try again.
necessary to close the session.
"F61" or "F76"
• The amount of data on the disc is too small. Set
• There is a power supply problem. Consult the
the amount of data to above 5 MB.
dealer.
Noise is heard or no sound
• Disconnect the USB device. Turn the unit off
• While playing MP3, noise may occur if the
and on again.
recording is poor.
"AUTO OFF"
• Keep this unit away from mobile telephones if
• The unit has been left unused for about 29
the interference is apparent.
minutes and will shut down in a minute. Press
• Turn the volume up.
any button to cancel it.
• Switch the unit off, check and correct the
"ILLEGAL OPEN"
connection and then switch the unit on. Causes
• Sliding door is not in correct position. Turn the
include straining of the speakers through
unit off and on again.
excessive volume or power and using the unit in
"REMOTE 1"
a hot environment.
• The main unit is in "REMOTE 1" mode. Switch
Humming heard during play
the remote control to "REMOTE 1" mode
• An AC mains lead or fluorescent light is near
(➡ Section 9).
the cords. Keep other appliances and cords
"REMOTE 2"
away from this unit's cables.
• The main unit is in "REMOTE 2" mode. Switch
A beat sound or noise is heard while receiving
the remote control to "REMOTE 2" mode
radio broadcast
(➡ Section 9).
• Switch the television or other audio player off or
g USB
separate it from the unit.
• Switch the portable audio player off if connected
No response when [USB q/ h] is pressed
to the AUX port.
• Disconnect the USB device and then reconnect
A low hum or noise is heard during AM it. Alternatively, turn the unit off and on again.
Fuse
broadcast
The USB drive or its contents cannot be read
cover
• Keep the antenna away from other cables and
• The USB drive format or its contents is/are not
cords.
compatible with the unit (➡ Section 8).
• Keep the AM antenna away from the unit.
• The USB host function of this product may not
The picture on the television near the unit work with some USB devices.
disappears or stripes appear on the screen • USB devices with storage capacity of more than
8 GB may not work in some instances.
• The location and orientation of the antenna are
incorrect.
Slow operation of the USB flash drive
• The television antenna wire is too close to the
• Large file size or high memory USB flash drive
unit. Separate the antenna wire of the television takes longer time to read.
from the unit.
Fuse
"NO PLAY"
No response when remote control buttons are
(5 ampere)
• Check the content.
pressed
• Only MP3 format files can be played.
• Check that the batteries are inserted correctly
• If there are more than 255 albums or folders
(➡ Section 2).
(audio and non-audio), some of the MP3 files
g Display
in these albums may not be read and played.
"--:--" Transfer these music albums to another USB.
• You plugged the AC mains lead in for the first Alternatively, reformat the USB device and save
time or there was a power failure recently. Set these music albums prior to saving the other
the time (➡ Section 6). non-audio folders.
"ADJUST CLOCK" "NODEVICE"
• Clock is not set. Adjust the clock accordingly. • The USB device is not inserted. Check the
connection.
6 Ω
13
Safety precautions
Placement Foreign matter
MP3 (*.mp3)
Set the unit up on an even surface away Do not let metal objects fall inside the unit.
FAT 12/16/32
from direct sunlight, high temperatures, high This can cause electric shock or malfunction.
Max 500 mA
Do not let liquids get into the unit. This can
humidity, and excessive vibration. These
cause electric shock or malfunction. If this
conditions can damage the cabinet and other
components, thereby shortening the unit's occurs, immediately disconnect the unit from
service life. the AC mains supply and contact your dealer.
Do not place heavy items on the unit. Do not spray insecticides onto or into the
18 W
unit. They contain flammable gases which can
Voltage
ignite if sprayed into the unit.
Do not use high voltage power sources. This
Service
can overload the unit and cause a fire.
Do not use a DC power source. Check the
Do not attempt to repair this unit by yourself.
source carefully when setting the unit up on a If sound is interrupted, indicators fail to light,
ship or other place where DC is used.
smoke appears, or any other problem that
is not covered in these instructions occurs,
AC mains lead protection
disconnect the AC mains lead and contact your
dealer or an authorized service centre. Electric
Ensure the AC mains lead is connected
shock or damage to the unit can occur if the
correctly and not damaged. Poor connection
unit is repaired, disassembled or reconstructed
and lead damage can cause fire or electric
by unqualified persons.
shock. Do not pull, bend, or place heavy items
Extend operating life by disconnecting the
on the lead.
unit from the AC mains if it is not to be used for
Grasp the plug firmly when unplugging the
a long time.
lead. Pulling the AC mains lead can cause
electric shock.
Do not handle the plug with wet hands. This
can cause electric shock.
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols on the products, Penalties may be applicable for
packaging, and/or accompanying incorrect disposal of this waste, in
documents mean that used accordance with national
electrical and electronic products legislation.
and batteries should not be mixed
For business users in the
with general household waste.
European Union
For proper treatment, recovery and
If you wish to discard electrical and
recycling of old products and used
electronic equipment, please
batteries, please take them to
contact your dealer or supplier for
applicable collection points, in
further information.
accordance with your national
legislation and the Directives
[Information on Disposal in
2002/96/EC and 2006/66/EC.
other Countries outside the
By disposing of these products and
European Union]
batteries correctly, you will help to
These symbols are only valid in the
save valuable resources and
European Union. If you wish to
prevent any potential negative
discard these items, please contact
effects on human health and the
your local authorities or dealer and
environment which could otherwise
ask for the correct method of
arise from inappropriate waste
disposal.
handling.
Note for the battery symbol
For more information about
(bottom two symbol examples):
collection and recycling of old
This symbol might be used in
products and batteries, please
combination with a chemical
contact your local municipality, your
symbol. In this case it complies with
waste disposal service or the point
the requirement set by the Directive
of sale where you purchased the
for the chemical involved.
items.
Notes on CD-R and CD-RW • This unit cannot play files recorded using
• This unit can play CD-R and CD-RW recorded packet write.
with CD-DA or MP3. • If the disc includes both MP3 and normal audio
• Use an audio recording disc for CD-DA and data (CD-DA), the unit plays the type recorded
finalise* it when you finish recording. in the inner part of the disc. If the disc includes
* A process performed after recording that both MP3 and other types of audio data (e.g.
enables CD-R or CD-RW players to play audio WMA or WAV), the unit plays only the MP3.
CD-R and CD-RW. • Depending on how you create the MP3 files,
• The unit may not be able to play some discs they may not play in the order you numbered
due to the condition of the recording. them or may not play at all.
• Do not use irregularly shaped CDs.
Notes on USB
• Do not attach extra labels and stickers.
• Supported format: Files with extension ".mp3"
• Do not use CDs with labels and stickers that are
or ".MP3".
coming off or with excessive adhesive under the
• CBI (Control/Bulk/Interrupt) is not supported.
labels and stickers.
• A device using NTFS file system is not
• Do not attach scratch-proof covers or any other
supported [Only FAT 12/16/32 (File Allocation
kind of accessories.
Table 12/16/32) file system is supported].
• Do not write anything on the CDs.
• Depending on the sector size, some files may
• Do not clean CDs with liquids (Wipe with a soft
not work.
and dried cloth).
• This unit can access up to 255 albums and
Creating MP3 files playable on this unit 2500 tracks.
• Maximum number of tracks and albums: 999 • The maximum number of tracks in a folder is
tracks and 255 albums. 999 tracks.
• Compatible compression rate: Between 64 kbps • Only one memory card will be selected when
and 320 kbps (stereo). 128 kbps (stereo) is connecting a multiport USB card reader,
recommended. typically the first memory card inserted.
• Disc formats: ISO9660 level 1 and level 2 • Disconnect the USB card reader from the unit
(except for extended formats) when you remove the memory card. Failure to
• The time for reading TOC depends on do so may cause malfunction to the device.
the number of the tracks, folders or folder • When you connect the digital audio player to
structures. the USB port, it charges all the time when the
unit is on.
Limitations on MP3
• This unit is compatible with multi-sessions and it
takes more time to start playing.
Sales and Support Information
Customer Care Centre • Or go on line through our Internet Accessory
• For customers within the UK: ordering application at www.pas-europe.com.
0844 844 3852 • Most major credit and debit cards accepted.
• For customers within the Republic of Ireland: • All enquiries transactions and distribution
01 289 8333 facilities are provided directly by
• Visit our website for product information Panasonic UK Ltd.
www.panasonic.co.uk • It couldn't be simpler!
• E-mail: customer.care@panasonic.co.uk • Also available through our Internet is direct
shopping for a wide range of finished products,
Direct Sales at Panasonic UK
take a browse on our website for further details.
• For customers: 0844 844 3856
• Order accessory and consumable items
Interested in purchasing an extended guarantee?
for your product with ease and confidence
Please call 0870 240 6284 or visit our website
by phoning our Customer Care Centre
www.panasonic.co.uk/guarantee.
Monday–Thursday 9:00 a.m.–5:30 p.m.,
Friday 9:30 a.m.–5:30 p.m.
(Excluding public holidays)
Maintenance
g Pull out the power plug from the outlet for g Care on the CD lens
maintenance beforehand and then wipe it
• Clean the lens regularly to prevent malfunctions.
using a soft and dried cloth.
Use a blower to remove dust and a cotton swab
• When dirt is heavy, wring the cloth moistened if it is extremely dirty.
in water tightly to wipe the dirt, and then wipe it • Do not use the lens cleaner of the CD type.
with a dried cloth.
• Do not use solvents such as benzine, thinner,
alcohol and detergent, which may deform the
coating of the outer case.
• When using a chemical cloth, follow the
precautions.
Operating Instructions
Compact Stereo System
SC-HC10
Model No.
Dear customer
Thank you for purchasing this product.
Before connecting, operating or
Supplied accessories
adjusting this product, please read the
instructions completely. Please keep
this manual for future reference.
Please check and identify the
Operations in these instructions are
supplied accessories.
described using remote control, but you
Use numbers indicated in parentheses can do the operations with the main
when asking for replacement parts. unit if the controls are the same.
Your unit may not look exactly as
(Product numbers correct as of January
illustrated.
2010. These may be subject to change.)
 
1 AC mains lead 1 Remote control
(K2CZ3YY00005) (N2QAYB000519)
Model number suffix "EB" denotes UK
model.
 
1 AM loop antenna 1 Antenna plug adaptor
(N1DYYYY00010) (K1YZ02000013)

1 FM indoor antenna
(RSAX0002)
• The included AC mains lead is for use with this unit only.
Do not use it with other equipment.
• Do not use an AC mains lead of other equipment.
Panasonic Corporation
Web Site: http://panasonic.net
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
RQTX1045-B
Winsbergring 15, 22525 Hamburg, Germany
© Panasonic Corporation 2010
CAUTION! CAUTION!
THIS PRODUCT UTILIZES A LASER.
• DO NOT INSTALL OR PLACE THIS UNIT
USE OF CONTROLS OR ADJUSTMENTS
IN A BOOKCASE, BUILT-IN CABINET OR
OR PERFORMANCE OF PROCEDURES
IN ANOTHER CONFINED SPACE. ENSURE
OTHER THAN THOSE SPECIFIED HEREIN
THE UNIT IS WELL VENTILATED. TO
MAY RESULT IN HAZARDOUS RADIATION
PREVENT RISK OF ELECTRIC SHOCK OR
EXPOSURE.
FIRE HAZARD DUE TO OVERHEATING,
DO NOT OPEN COVERS AND DO NOT
ENSURE THAT CURTAINS AND ANY OTHER
REPAIR YOURSELF. REFER SERVICING TO
MATERIALS DO NOT OBSTRUCT THE
QUALIFIED PERSONNEL.
VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT'S
WARNING:
VENTILATION OPENINGS WITH
TO REDUCE THE RISK OF FIRE, ELECTRIC
NEWSPAPERS, TABLECLOTHS, CURTAINS,
SHOCK OR PRODUCT DAMAGE,
AND SIMILAR ITEMS.
* DO NOT EXPOSE THIS APPARATUS
• DO NOT PLACE SOURCES OF NAKED
TO RAIN, MOISTURE, DRIPPING OR
FLAMES, SUCH AS LIGHTED CANDLES, ON
SPLASHING AND THAT NO OBJECTS
THE UNIT.
FILLED WITH LIQUIDS, SUCH AS VASES,
• DISPOSE OF BATTERIES IN AN
SHALL BE PLACED ON THE APPARATUS.
ENVIRONMENTALLY FRIENDLY MANNER.
* USE ONLY THE RECOMMENDED
ACCESSORIES. CAUTION
* DO NOT REMOVE THE COVER (OR BACK);
Danger of explosion if battery is incorrectly
THERE ARE NO USER SERVICEABLE replaced. Replace only with the same
PARTS INSIDE. REFER SERVICING TO or equivalent type recommended by the
QUALIFIED SERVICE PERSONNEL.
manufacturer. Dispose of used batteries
according to the manufacturer's instructions.
The socket outlet shall be installed near the
equipment and easily accessible.
THIS UNIT IS INTENDED FOR USE IN
The mains plug of the power supply cord shall
MODERATE CLIMATES.
remain readily operable.
To completely disconnect this apparatus from the MPEG Layer-3 audio decoding technology
AC Mains, disconnect the power supply cord plug licensed from Fraunhofer IIS and Thomson.
from AC receptacle.
This product may receive radio interference
caused by mobile telephones during use. If such
interference is apparent, please increase
separation between the product and the mobile
telephone.
Back of product
RQT4389ZAA
RQLS0418
Inside of product
EU
EB En
H0110HU0
