Page 1: User Manual
MedeaWiz® Sprite MedeaWiz® Sprite High Definition Video Player User Manual FW version 20160509 Manual version 1.05 Note that this manual may change periodically Please go to www.MedeaWiz.com for the latest version P a g e... -
Page 2: Table Of Contents
MedeaWiz® Sprite Table of Contents Introduction ..............................2 What’s in the box ............................3 Sprite Quick Start Guide ..........................4 On-Screen Menu for Setup ........................... 5 Menu Language............................. 6 Screen Saver ..............................7 Video Output Mode ............................8 Audio Output Mode ............................9 Play Mode .............................. -
Page 3: Introduction

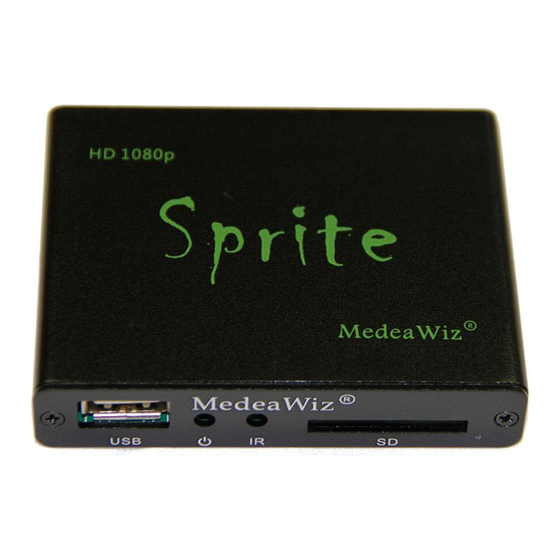

MedeaWiz® Sprite Introduction The MedeaWiz Sprite is a High Definition digital video repeater capable of HD 1080p HDMI output. It has a direct trigger input and a 2-way communications serial port. The Sprite will loop a video when power is applied, play a different video on a trigger or serial command, and then go back to the looping video. -
Page 4: What's In The Box
MedeaWiz® Sprite What’s in the box The Sprite comes with 1) IR remote control 2) AC adaptor, universal 100 to 240 Volt AC input, regulated 5 Volt DC output 3) AV cable, 3.5mm 4 pole to RCA red, white and yellow 4) I/O plug, 3.5mm 4 pole to screw terminals... -
Page 5: Sprite Quick Start Guide
MedeaWiz® Sprite Sprite Quick Start Guide The MedeaWiz® Sprite ships with the Video Output set to HDMI at 720p and the Control Mode set to “Trigger Low No Interrupt” Mode to use a pushbutton trigger. Most users can simply connect their HDMI monitor and install their SD memory card, with files named in the same way as the earlier model MedeaWiz players. -
Page 6: On-Screen Menu For Setup
MedeaWiz® Sprite On-Screen Menu for Setup Press the “Setup” button on the remote control to enter the on-screen menu. Use the orange “Arrow” keys to navigate, the green “Enter” key to make a selection, and the yellow “Return” key to go back one level. Pressing the “Return” key twice will exit the menu and begin file play. -
Page 7: Menu Language
MedeaWiz® Sprite Menu Language Select the language. P a g e... -
Page 8: Screen Saver
MedeaWiz® Sprite Screen Saver Select the time delay for the screen saver. The Screen Saver is only active in the “Off” manual play mode. It is not active in other control modes. P a g e... -
Page 9: Video Output Mode
MedeaWiz® Sprite Video Output Mode Select the video output needed to match your monitor. Select NTSC to use the Composite video output from the 3.5 mm AV jack using the yellow RCA plug from the included A/V cable. Select PAL for Composite video for some areas other than the Americas that use PAL video files and monitors. -
Page 10: Audio Output Mode
MedeaWiz® Sprite Audio Output Mode Select the audio output needed. Select HDMI to route the audio through the HDMI cable to your monitor or amplifier with HDMI input. Select A/V to route the audio to the 3.5mm 4 pole AV jack and use the red and white RCA plugs from the included A/V cable. -
Page 11: Play Mode
MedeaWiz® Sprite Play Mode Select the play mode needed for your application Selections with no external input control: Select Off to manually play files using the IR remote control. Select Video to play all video files in a circular loop. -
Page 12: Control Mode
MedeaWiz® Sprite Control Mode Select the external Control Mode for your application Select Trigger Low No Interrupt to use a pushbutton or other contact closure event. When triggered, the file 001.xxx will play to the end with no interruption. Select Trigger Low with Interrupt to use a pushbutton or other contact closure. When triggered, the file 001.xxx will play and will re-start if re-triggered. -
Page 13: Baud Rate
The default is 9600 bps. To use the legacy MedeaWiz DV-68K pushbutton control interface with the Sprite, set the baud rate to 4800. You will also need to fabricate or purchase an interface cable to adapt to the 4p4c modular connector on the DV-68K. -
Page 14: Sd/ Usb Start Mode
MedeaWiz® Sprite SD/ USB Start Mode Select the memory device to start from While files will play from the USB port from a USB drive, some HD video may not play well from some USB drives. For high bit rate files we recommend using the SD port with an SD card of sufficient speed to match your video file’s bit rate. -
Page 15: Restore Default Settings
MedeaWiz® Sprite Restore Default Settings Reset the Sprite back to the factory settings Select “Yes” and press “Enter” on the remote control to reset the Sprite to the factory settings 14 | P a g e... -
Page 16: Firmware Version
MedeaWiz® Sprite Firmware Version Displays the currently installed firmware version We may provide other versions of the firmware in the future. Check at www.MedeaWiz.com www.TeamKingsley.com for updates. 15 | P a g e... -
Page 17: Firmware Upgrade
MedeaWiz® Sprite Firmware Upgrade How to upgrade the firmware We may release upgraded firmware in the future. Please check http://www.medeawiz.com/ updates. 1) Use a blank USB drive or one with your video files on it. Do not use one that contains items not meant for the Sprite. -
Page 18: Wiring Connections Rear Panel
MedeaWiz® Sprite Wiring Connections Rear Panel Left to right 1) Power input. Regulated 5 Volts DC only. Center positive. 2) AV output. Composite video, stereo audio left and right 3) HDMI high definition video with audio 4) Control Input / Output. Pushbutton / trigger / serial input and serial output... -
Page 19: External Control - Wiring A Pushbutton To The I/O Port
MedeaWiz® Sprite External Control – Wiring a Pushbutton to the I/O Port Using a pushbutton or other dry contacts The Control Mode should be set to Trigger Low No Interrupt or Trigger Low with Interrupt. The screw terminal adaptor shown above on the right is now included with the Sprite. Note that the numbers near the screws match to the numbers on the plug at the left, which is used in examples later in this manual. -
Page 20: External Control - Wiring For Serial Communications To The I/O Port
MedeaWiz® Sprite External Control - Wiring for Serial Communications to the I/O Port The Sprite can be controlled by a Show Control or micro controller like a Basic Stamp, PIC, Atmel, Arduino, Raspberry Pi, Prop-1 or etc. using serial communications at 3.3V or 5V levels. -
Page 21: Plc Output Interfacing
MedeaWiz® Sprite PLC Output Interfacing The Sprite can be controlled from a Programmable Logic Controller using “dry contacts” like a push button, or voltage output. The sinking output is the preferred method if dry contacts are not available. The Sprite has an internal 10K pullup so the Sourcing output requires a low resistance from Output to Common to pull the Sprite’s internal voltage down to a “LOW”. -
Page 22: Motion Sensor Wiring
MedeaWiz® Sprite Motion Sensor Wiring There are many possibilities to add a motion sensor to the Sprite. One way is to use a common burglar alarm sensor with normally closed contacts. Wire the contacts like the pushbutton example and set the Sprite’s Control Mode to “Trigger High No Interrupt”... -
Page 23: Schematic Of I/O On The Sprite Circuit Board
MedeaWiz® Sprite Schematic of I/O on the Sprite circuit board 22 | P a g e... -
Page 24: Using Legacy Dv-68K And Tk Series Interfaces With The Sprite
MedeaWiz® Sprite Using legacy DV-68K and TK series interfaces with the Sprite The Sprite can work with the older DV-68K and TK-68K or TK-69K series of pushbutton controllers. For the DV-68K you will need to set the baud rate of the Sprite to 4800. -
Page 25: Serial Port Control From Your Show Controller Or Micro-Processor
MedeaWiz® Sprite Serial Port Control from your Show Controller or Micro-processor For simple file playing, the serial codes are the same as the codes for the earlier MedeaWiz models. The serial communications is on the 3.5mm 4 pole jack at 2400, 4800, 9600 or 19200, 8N1 at 3.3 to 5 Volt TTL levels. -
Page 26: Serial Port Control Commands
MedeaWiz® Sprite Serial Port Control Commands For Sprite FW version 20160509 Code Definition Remarks 0x00 Play file 000.xxx Play files 000.xxx up to 0x01 Play file 001.xxx file 200.xxx by sending a single hex byte. 0xC8 Play file 200.xxx Use numerical values, not CHAR values. - Page 27 MedeaWiz® Sprite 0xE3 0xE4 0xE5 0xE6 0xE7 0xE8 Mute KEY Mute the audio 0xE9 VOLUME Up Key Volume Increase 0xEA VOLUME Down Key Volume Decrease 0xEB 0xEC 0xED 0xEE 0xEF 0xF0 PAUSE Key Pause / Play 0xF1 FB Key Fast Rewind...
-
Page 28: Ir Remote Control
MedeaWiz® Sprite IR Remote Control We use a generic remote control that is used for various models of video repeaters and DVD players. Not all buttons / functions will respond, and some are only valid in certain modes. Most of our Customers will only use the remote for initial setup of the repeater. This is an IR control, and needs to be pointed directly at the front of the Sprite. -
Page 29: Power Supply
MedeaWiz® Sprite Power Supply The Sprite is one of the most energy efficient “green” video repeaters available today. Using only 5 Volt DC power at an average of 400 mA, it takes only about 2 Watts to run. The Sprite requires a regulated 5 Volt DC power supply, which is included. The power connection takes a barrel plug with 1.35mm ID and 3.5mm OD, center Positive. -
Page 30: Supported Video Formats
MedeaWiz® Sprite Supported Video Formats MedeaWiz DV-S1 Sprite ® Specification Card Reader SD / MMC up to 32GB USB Host 1x USB2.0 ; supports external hard disk up to 2TB Mp3(all max bitrate:320kbps) wma(standard/pro max bitrate:384kbps) Ogg(Q1-Q10 500kbs) flac(lever0-8 max bitrate:1.60mbps) -
Page 31: Trouble Faq
MedeaWiz® Sprite Trouble FAQ My video has a glitch or green area when looping or triggered This can happen if your video pixel size and frame rate are not matched to the settings on the Sprite. The file’s pixel size should be 1920 x 1080 for the 1080p or 1080i settings, and 1280 x 720 for the 720 settings. -
Page 32: Support
MedeaWiz® Sprite Support We do our very best to answer your calls and emails in a timely manner. We generally return calls and emails within 2 hours or less during business hours. We do monitor emails in the evenings and weekends and will try to respond outside of business hours. -
Page 33: Custom Orders
MedeaWiz® Sprite Custom Orders For large quantity orders we can offer: Custom firmware Sprite player without some or all accessories Sprite circuit board only to enclose in your OEM design Please email sales@MedeaWiz.com for a quote. 32 | P a g e...
