Page 1: User Manual

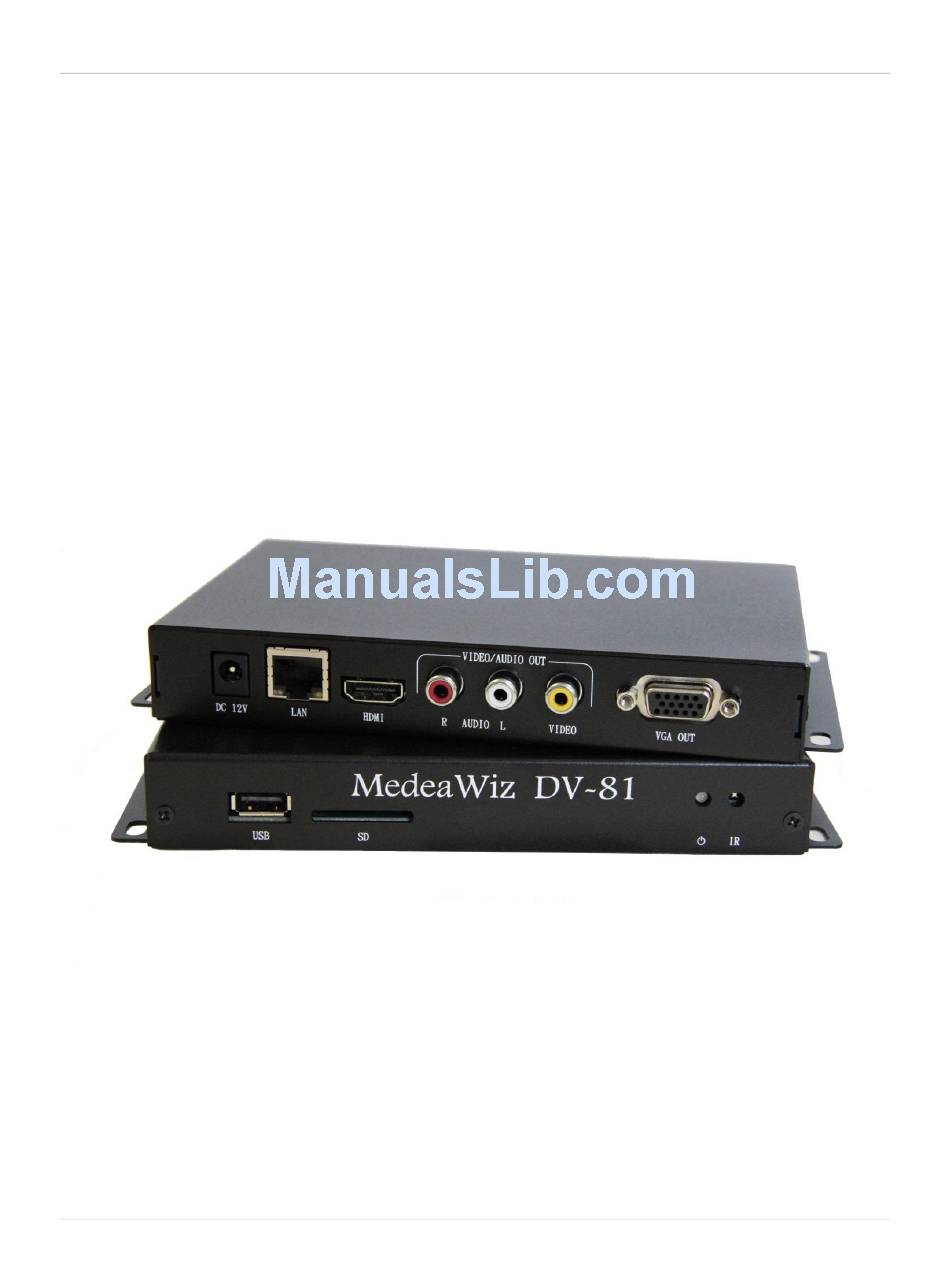

MedeaWiz® DV-81 Team Kingsley LLC MedeaWiz DV-81 High Definition Video Player User Manual Repeater FW version 1.435 Manual version 1.0 P a g e... - Page 2 MedeaWiz® DV-81 Team Kingsley LLC Contents: Introduction Quick Start Guide On Screen Menu System Menu Page Menu Language Subtitle Text Encoding Slideshow Interval Slideshow Mode Playback Mode Clock Information Time Zone Clock Setting Media Synchronize Mode Media Synchronize Key FTP Sync...
- Page 3 MedeaWiz® DV-81 Team Kingsley LLC Sound Menu Page Volume Night Mode Digital Output Display Menu Page Aspect Ratio Brightness Contrast TV System Over Scale IR Remote Control Serial Ports P a g e...
- Page 4 The DV-81 can be used as a stand-alone player or can be connected to a LAN and set to download new files at a pre-set time.
- Page 5 Auto Mode, and the PLAYBACK MODE set to MENU MODE. Most users can simply connect their HDMI monitor and install their SD memory card, with files named in the same way as the older model MedeaWiz players. * For Multi-Zone RSS firmware see bottom of page.
- Page 6 TTL levels. The DV-66K document will show you the pin-out for the 4-4 phone cable for serial communications. If you need to control the DV-81 by a PC, AMX or other true rs-232 (12 volt), you MUST use a level-shifting adaptor cable available separately.
- Page 7 MedeaWiz® DV-81 Team Kingsley LLC On Screen Menu Press the “Setup” button on the remote control to enter the on-screen menu. Use the ARROW keys to navigate, the OK key to make a selection, and the left arrow OR the RETURN key to go back one level. From the main menu press the RETURN key, then the PLAY/PAUSE key to exit the menu and begin file play.
- Page 8 MedeaWiz® DV-81 Team Kingsley LLC Menu Language Select the language for the Menu P a g e...
- Page 9 MedeaWiz® DV-81 Team Kingsley LLC Subtitle Text Encoding Select the encoding type for the Subtitle P a g e...
- Page 10 MedeaWiz® DV-81 Team Kingsley LLC Slideshow Interval Select the time that still images remain on the screen before advancing Slideshow settings are only used with still images (picture files) on the SD memory card with the player set to REPEAT playback mode.
- Page 11 MedeaWiz® DV-81 Team Kingsley LLC Slideshow Mode Select the still image transition type Slideshow settings are only used with still images (picture files) on the SD memory card with the player set to REPEAT playback mode. 10 | P a g e...
- Page 12 The MENU mode is used when looping a single file, named 000.xxx. Using the DV- 68K, TK-69K with push-buttons or other serial control device to trigger files 001.xxx up to 200.xxx, after the selected file plays, the DV-81 will resume looping file 000.xxx. (where .xxx is the proper file extension mpg, wma, mp4, etc.) The REPEAT mode is used to repeat all files on the memory card in sequence starting at file 000.xxx.
- Page 13 MedeaWiz® DV-81 Team Kingsley LLC Clock Information View the current time and date settings The POWER-OFF and POWER-ON setting is accomplished using the U-Poster 1.1 software on a Windows PC and storing the created file on the SD memory card along with your video files.
- Page 14 Select the local time zone Setting the time zone will ensure that the clock will have the correct time if you have the DV-81 connected to a network, and select “Sync with NTP” time-server. 13 | P a g e...
- Page 15 Clock Setting Set the clock if using time related functions If you have the DV-81 connected to a network, and select “Sync with NTP” time- server, the clock will set automatically to the correct time. Otherwise you can enter the time and date manually if the box is not checked.
- Page 16 Media Synchronize Mode Settings to synchronize players The Media Synchronize Mode can be used with multiple DV-81 players on a local network. The players should be in the Repeat Mode. At the end of the last file on the Master Player, the Master will transmit a queue to all of the Slave Players to start the first file.
- Page 17 MedeaWiz® DV-81 Team Kingsley LLC Media Synchronize Key Settings to place players in a Master / Slave group Set the Master and the Slaves to the same Key to group them together. You can have four separate groups using the four keys. The total number of players in one or more groups combined, is limited by the IP address server on your network to 255 total devices.
- Page 18 Settings to synchronize to your FTP server computer on your LAN Enter the FTP server connection settings. The DV-81 can update files on the SD memory card at the scheduled Power-Off time using a LAN local network connection and the U-Poster 1.1 software on a Windows PC.
- Page 19 Copy the new .fw and .md5 files to the drive. Insert the USB drive into the DV-81 and follow the on-screen instructions. Do not remove power or remove the USB drive until the update is competed.
- Page 20 MedeaWiz® DV-81 Team Kingsley LLC Firmware Version Information Shows the current firmware installed 19 | P a g e...
- Page 21 MedeaWiz® DV-81 Team Kingsley LLC Reset To Factory Defaults Will rest the player to the way it was before any changes were made. 20 | P a g e...
- Page 22 MedeaWiz® DV-81 Team Kingsley LLC Network Menu Page Set the network connection Check the DHCP box to obtain an IP address automatically, or leave un-checked to manually enter the settings. The WIFI can only be used with an external USB WIFI dongle, not included. The Ralink RT3070 is recommended.
- Page 23 MedeaWiz® DV-81 Team Kingsley LLC Sound Menu Page Adjust sound settings Volume: Set the volume to better match your amplifier if needed. Night Mode: Volume will decrease at night if selected. Digital Output: Select output type. The Optical outputs are an option that may not be installed.
- Page 24 MedeaWiz® DV-81 Team Kingsley LLC Display Menu Page 23 | P a g e...
- Page 25 MedeaWiz® DV-81 Team Kingsley LLC Aspect Ratio Set the Aspect Ratio to best match your file to the monitor Brightness Adjust Brightness if needed Contrast Adjust Contrast if needed 24 | P a g e...
- Page 26 MedeaWiz® DV-81 Team Kingsley LLC TV System Set the video output to best match your monitor The VGA output is always set to 1920 x 1080. 25 | P a g e...
- Page 27 MedeaWiz® DV-81 Team Kingsley LLC Over Scale Set the Over Scale to best match your file to the monitor 26 | P a g e...
-
Page 28: Remote Control
MedeaWiz® DV-81 Team Kingsley LLC Remote Control 27 | P a g e... -
Page 29: Supported Video Formats
MedeaWiz® DV-81 Team Kingsley LLC Supported Video Formats Supported Video Formats Video Codec M-JPEG MPEG-1/2 MPEG-4 Flash Video H.264 VC-1 Real Video .AVI /.MP4 / .MOV / .MPG / .DAT / .VOB / .AVI / .MP4 / .3GP / .ASF / .WMV / .TS / File Extension .MOV / .AVI... - Page 30 Team Kingsley LLC Serial Ports The DV-81 has 2 serial ports, an RJ11 and a DB9M. We use the RJ 9 port to connect the DV-68K, TK-69K or other control device. The RJ 9 port has 4 pins, Ground, Tx, Rx and +5vdc.
