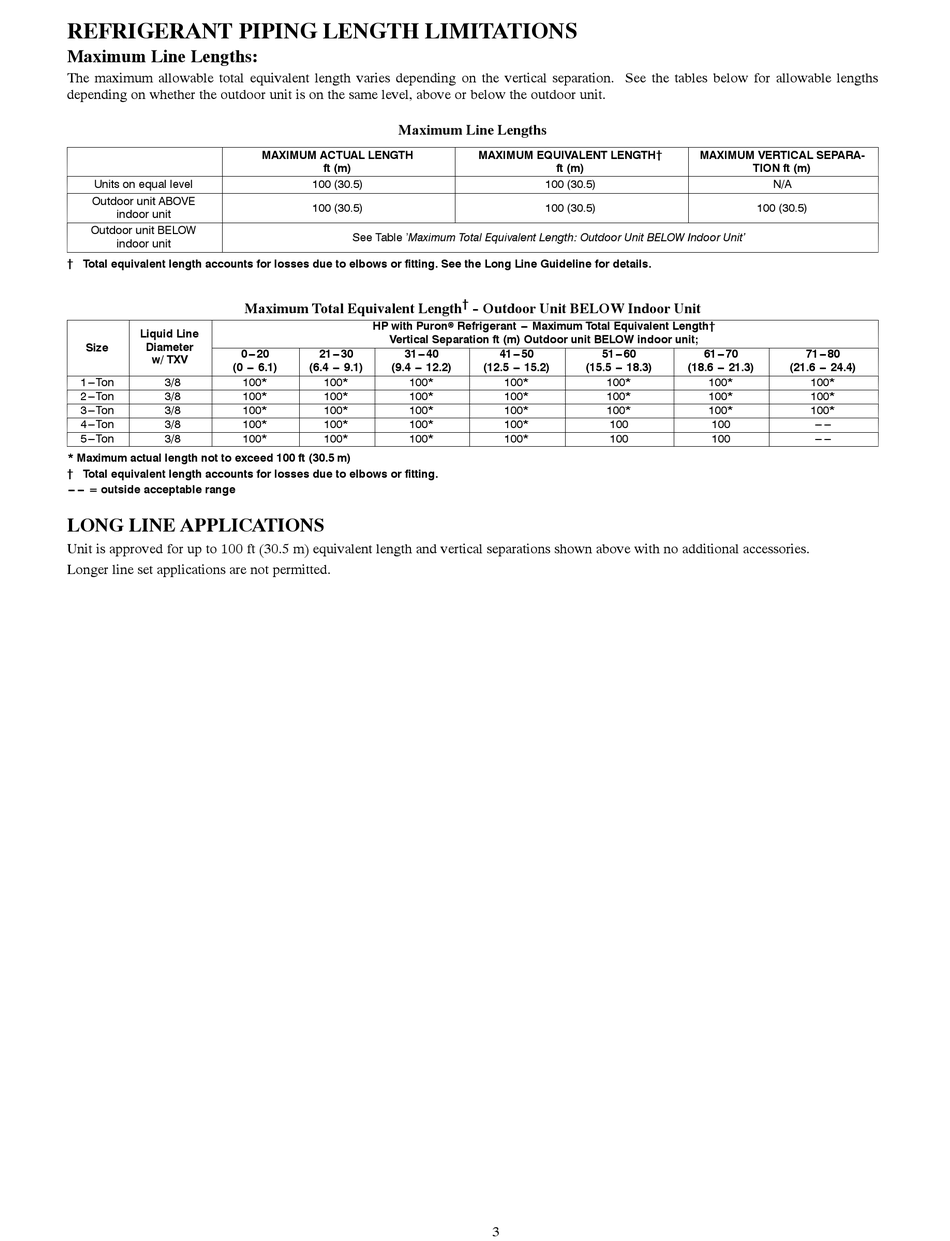

REFRIGERANT PIPING LENGTH LIMITATIONS

Maximum Line Lengths:
The maximum allowable total equivalent length varies depending on the vertical separation. See the tables below for allowable lengths
depending on whether the outdoor unit is on the same level, above or below the outdoor unit.
Units on equal level
Outdoor unit ABOVE
indoor unit
Outdoor unit BELOW
indoor unit
{ Total equivalent length accounts for losses due to elbows or fitting. See the Long Line Guideline for details.
Maximum Total Equivalent Length
Liquid Line
Diameter
Size
0--- 20
w/ TXV
(0 --- 6.1)
1 ---Ton 3/8 100*
2 ---Ton 3/8 100*
3 ---Ton 3/8 100*
4 ---Ton 3/8 100*
5 ---Ton 3/8 100*
* Maximum actual length not to exceed 100 ft (30.5 m)
{ Total equivalent length accounts for losses due to elbows or fitting.
--- --- = outside acceptable range

LONG LINE APPLICATIONS

Unit is approved for up to 100 ft (30.5 m) equivalent length and vertical separations shown above with no additional accessories.
Longer line set applications are not permitted.
Maximum Line Lengths
MAXIMUM ACTUAL LENGTH
ft (m)
100 (30.5)
100 (30.5)
See Table 'Maximum Total Equivalent Length: Outdoor Unit BELOW Indoor Unit'
HP with Puronr Refrigerant --- Maximum Total Equivalent Length{
Vertical Separation ft (m) Outdoor unit BELOW indoor unit;
21--- 30 31--- 40
(6.4 --- 9.1) (9.4 --- 12.2)
100* 100*
100* 100*
100* 100*
100* 100*
100* 100*
MAXIMUM EQUIVALENT LENGTH{
ft (m)
100 (30.5)
100 (30.5)
{ - - Outdoor Unit BELOW Indoor Unit
41--- 50 51--- 60
(12.5 --- 15.2) (15.5 --- 18.3)
100* 100*
100* 100*
100* 100*
100* 100
100* 100
3
MAXIMUM VERTICAL SEPARA-
TION ft (m)
N/A
100 (30.5)
61--- 70 71--- 80
(18.6 --- 21.3) (21.6 --- 24.4)
100* 100*
100* 100*
100* 100*
100 --- ---
100 --- ---
