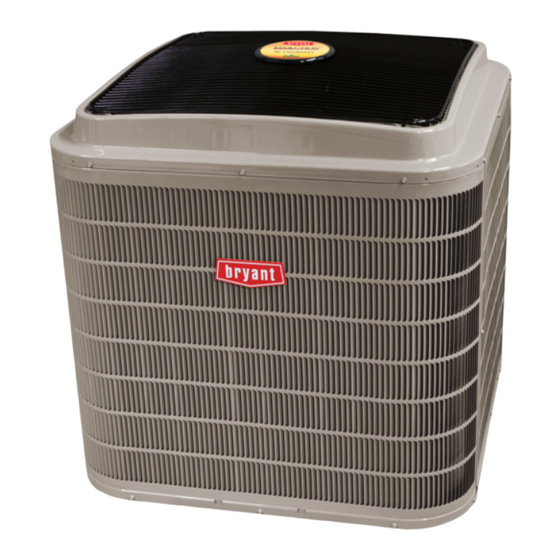

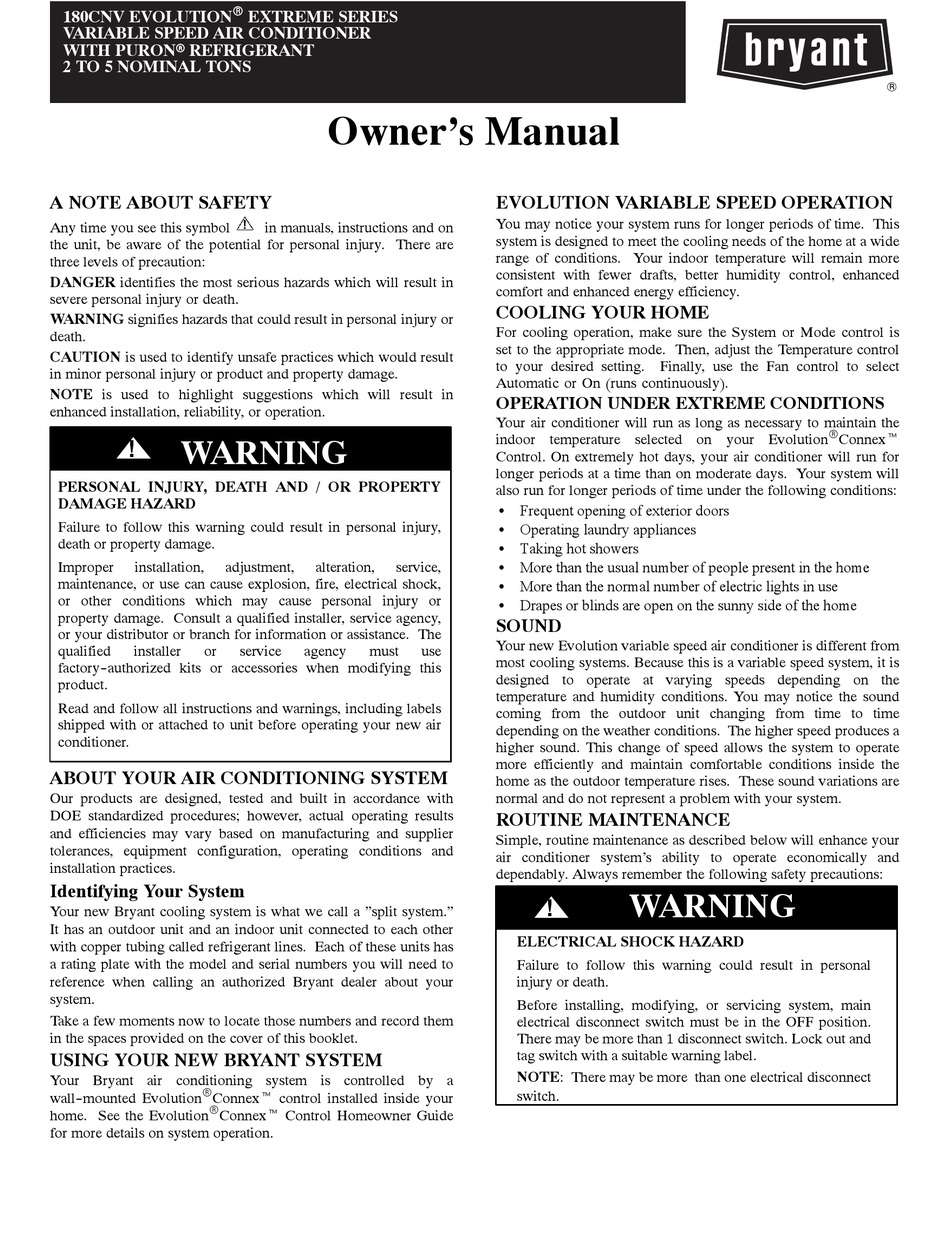

Bryant EVOLUTION EXTREME Series Owner's Manual

180CNV EVOLUTION
VARIABLE SPEED AIR CONDITIONER
WITH PURONr REFRIGERANT
2 TO 5 NOMINAL TONS

A NOTE ABOUT SAFETY

Any time you see this symbol
the unit, be aware of the potential for personal injury. There are
three levels of precaution:
DANGER identifies the most serious hazards which will result in
severe personal injury or death.
WARNING signifies hazards that could result in personal injury or
death.
CAUTION is used to identify unsafe practices which would result
in minor personal injury or product and property damage.
NOTE is used to highlight suggestions which will result in
enhanced installation, reliability, or operation.
WARNING
!
PERSONAL INJURY, DEATH AND / OR PROPERTY
DAMAGE HAZARD
Failure to follow this warning could result in personal injury,
death or property damage.
Improper installation, adjustment,
maintenance, or use can cause explosion, fire, electrical shock,
or other conditions which may cause personal injury or
property damage. Consult a qualified installer, service agency,
or your distributor or branch for information or assistance. The
qualified installer or
factory- -authorized kits or accessories when modifying this
product.
Read and follow all instructions and warnings, including labels
shipped with or attached to unit before operating your new air
conditioner.

ABOUT YOUR AIR CONDITIONING SYSTEM

Our products are designed, tested and built in accordance with
DOE standardized procedures; however, actual operating results
and efficiencies may vary based on manufacturing and supplier
tolerances, equipment configuration, operating conditions and
installation practices.

Identifying Your System

Your new Bryant cooling system is what we call a "split system."
It has an outdoor unit and an indoor unit connected to each other
with copper tubing called refrigerant lines. Each of these units has
a rating plate with the model and serial numbers you will need to
reference when calling an authorized Bryant dealer about your
system.
Take a few moments now to locate those numbers and record them
in the spaces provided on the cover of this booklet.

USING YOUR NEW BRYANT SYSTEM

Your Bryant air conditioning system is controlled by a
R
wall- -mounted Evolution Connext control installed inside your
R
home. See the Evolution Connext Control Homeowner Guide
for more details on system operation.
R EXTREME SERIES
Owner's Manual
in manuals, instructions and on
alteration, service,
service agency must

EVOLUTION VARIABLE SPEED OPERATION

You may notice your system runs for longer periods of time. This
system is designed to meet the cooling needs of the home at a wide
range of conditions. Your indoor temperature will remain more
consistent with fewer drafts, better humidity control, enhanced
comfort and enhanced energy efficiency.

COOLING YOUR HOME

For cooling operation, make sure the System or Mode control is
set to the appropriate mode. Then, adjust the Temperature control
to your desired setting. Finally, use the Fan control to select
Automatic or On (runs continuously).

OPERATION UNDER EXTREME CONDITIONS

Your air conditioner will run as long as necessary to maintain the
indoor temperature selected on your Evolution
Control. On extremely hot days, your air conditioner will run for
longer periods at a time than on moderate days. Your system will
also run for longer periods of time under the following conditions:
S Frequent opening of exterior doors
S Operating laundry appliances
S Taking hot showers
S More than the usual number of people present in the home
S More than the normal number of electric lights in use
S Drapes or blinds are open on the sunny side of the home

SOUND

Your new Evolution variable speed air conditioner is different from
use
most cooling systems. Because this is a variable speed system, it is
designed to operate at varying speeds depending on the
temperature and humidity conditions. You may notice the sound
coming from the outdoor unit changing from time to time
depending on the weather conditions. The higher speed produces a
higher sound. This change of speed allows the system to operate
more efficiently and maintain comfortable conditions inside the
home as the outdoor temperature rises. These sound variations are
normal and do not represent a problem with your system.

ROUTINE MAINTENANCE

Simple, routine maintenance as described below will enhance your
air conditioner system's ability to operate economically and
dependably. Always remember the following safety precautions:
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before installing, modifying, or servicing system, main
electrical disconnect switch must be in the OFF position.
There may be more than 1 disconnect switch. Lock out and
tag switch with a suitable warning label.
NOTE: There may be more than one electrical disconnect
switch.
WARNING
R
Connext
