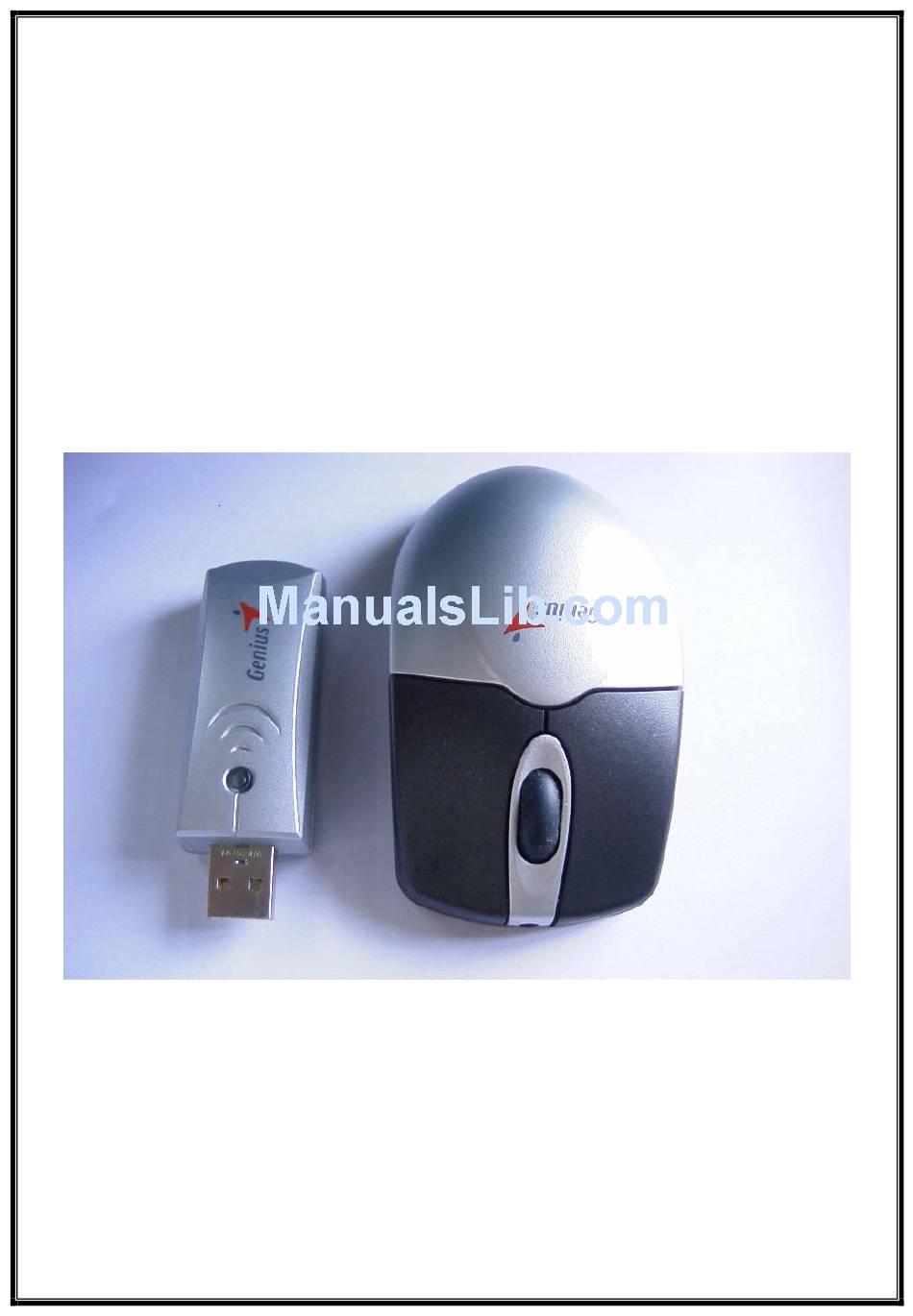

- Page 1 Service Manual Wireless WebScroll + NB Eye...
-
Page 2: Table Of Contents
Service Manual Table of Contents Wireless WebScroll + NB Eye .....................0 Chapter 1. INTRODUCTION......................2 a. Hardware ..........................2 b. Software ..........................2 Block Diagram for Wireless Webscroll + NB Eye TX ............2 Block Diagram for Wireless Webscroll + NB Eye RX ............3 Chapter 2. -
Page 3: Wireless Webscroll + Nb Eye
Service Manual Chapter 1. INTRODUCTION a. Hardware ♦ PC586 above ♦ Connection port : USB b. Software ♦ Win98 above ♦ Wireless Webscroll + NB Eye USB Driver c. Block Diagram for Wireless Webscroll + NB Eye TX Charge circuit RF Oscillation RF Amplify Battery... -
Page 4: Block Diagram For Wireless Webscroll + Nb Eye Rx
Service Manual d. Block Diagram for Wireless Webscroll + NB Eye RX Version 1.0 Page 3... -
Page 5: Chapter 2. Testing Procedures
Service Manual Chapter 2. Testing procedures a. Connection fail START Mouse TX REPLACE Mouse TX Receiver REPLACE Receiver Version 1.0 Page 4... -
Page 6: Chapter 3. Trouble Shooting Guide
Service Manual Chapter 3. Trouble Shooting Guide Problems Condition Probable Reasons Solutions 1. Pointer is 1. Power LED doesn’t light 1. TX PCB defect Change all the parts moving below automatically 1. ZD2 2. Change R25 3. Change R61 4. Change R15 5. -
Page 7: Chapter 4. Removal And Replacement
Service Manual Chapter 4. Removal and Replacement a.Wireless WebScroll + NB Eye TX Step Description Picture 1. Turn over To disassemble the mouse, you have mouse to turn over mouse. 2. Loose screws Using screwdriver to loose all screws. 3. Take apart After taking all screws off, you can rear flat take up the rear flat. -
Page 8: B.wireless Webscroll + Nb Eye Rx
Service Manual b.Wireless WebScroll + NB Eye RX Step Description Picture 1. Turn over To turn over the receiver. receiver 2. Loose screws Using screwdriver to loose all screws. 3. Take apart After taking all screws off, you can take up the rear flat and take apart the PCB from the case. -
Page 9: Modify Parts Procedures (For Pointer Moves Automatically)
Service Manual c. Modify Parts procedures (for pointer moves automatically) 1. Solder a 5V-3.3V Regulator(K1319003) on U2 2. Grounded PIN2 ON U2 3. Use Jumper to connect U2 PIN1 and J3 PIN14 4. R45 change to 20Ω (K1409021) 5. R15 change to 62K (K140A067) 6. - Page 10 Service Manual Version 1.0 Page 9...
-
Page 11: Chapter 5. Parts List
Service Manual Chapter 5. Parts list Description Parts number Description Parts number R 20Ω K1319003 K1409021 R 62K K140A067 R 820K K140A067 D IN4148 K140C024 ZD2 1N5817 K1705003 C7 0.01UF 0204 K150B027 L2 BEAD 0805 K1616001 Y1 26.590MZH K080C004 SPCBA WEBSCROLL +NB K010C026 EYE TX SPCBA 27M WIRELESS...
