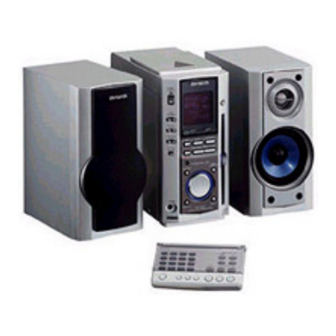

Compact disc stereo system
Hide thumbs Also See for XR-MS3:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
SERVICE MANUAL
COMPACT DISC
STEREO SYSTEM
• This Service Manual is the "Supplement" and replaces "Simple Manual"
XR-MS3 (HR), (S/M Code No. 09-008-422-6T4).
• This Service Manual contains information about the difference between
XR-MS3 (HR) and XR-MS3 (HC). If requiring the other information,
see Service Manual of XR-MS3 (HC), (S/M Code No. 09-008-422-6R2).
XR-MS3
BASIC TAPE MECHANISM : 2ZM-1 R14NM
BASIC CD MECHANISM : TN-CCD1001-902M
SYSTEM
SPEAKER
SX-M7
XR-MS3
S/M Code No. 09-009-422-6S2
REMOTE
CONTROLLER
RC-ATT03(B)
HR

Advertisement

Table of Contents
loading

Related Manuals for Aiwa XR-MS3

Summary of Contents for Aiwa XR-MS3

  • Page 1 XR-MS3 (HR), (S/M Code No. 09-008-422-6T4). • This Service Manual contains information about the difference between XR-MS3 (HR) and XR-MS3 (HC). If requiring the other information, see Service Manual of XR-MS3 (HC), (S/M Code No. 09-008-422-6R2). S/M Code No. 09-009-422-6S2...

  • Page 2: Specifications

    SPECIFICATIONS FM tuner section General Tuning range 87.5 MHz to 108 MHz Power requirements 120 V / 220-240 V AC Usable sensitivity (IHF) 13.2 dBf switchable 50 / 60 Hz Antenna terminals 75 ohms (unbalanced) Power consumption 75 W Standby power consumption 1.9 W (power-economizing AM tuner section mode set to ON) Tuning range...

  • Page 3: Electrical Main Parts List

    ELECTRICAL MAIN PARTS LIST REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 87-010-196-080 CHIP CAPACITOR,0.1-25 87-A12-033-090 CAP,E 6800-25 SMG30L 8A-CJ5-601-010 C-IC,LC876580W-5N98 87-010-409-080 CAP,E 220-50 SME 87-070-246-010 IC,GP1U271X 87-010-380-080 CAP, ELECT 47-16V 87-A20-909-010 IC,LA4663 87-010-408-080 CAP, ELECT 47-50V 87-017-915-080 IC,BU4094BCF 87-017-585-080...
  • Page 4 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C407 87-010-188-080 CAP,CHIP 6800P 87-A90-195-080 PROTECTOR 7A 125V 49 C408 87-010-188-080 CAP,CHIP 6800P 87-026-689-080 PROTECTOR,1A 60V 491 C409 87-012-140-080 CAP 470P WH005 87-A90-507-010 HLDR,WIRE 2.5-4P C410 87-012-140-080 CAP 470P C411 87-010-404-080 CAP, ELECT 4.7-50V...
  • Page 5 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C352 87-012-140-080 CAP 470P C714 87-012-286-020 CAP,U 0.01-25 C354 87-010-175-080 CAP 560P C717 87-012-286-020 CAP,U 0.01-25 C355 87-010-178-080 CHIP CAP 1000P C719 87-012-286-020 CAP,U 0.01-25 C356 87-010-260-040 CAP,E 47-25 SME C720 87-012-195-020 C-CAP,U 100P-50CH...
  • Page 6 REF. NO. PART NO. KANRI DESCRIPTION L772 87-A91-110-010 FLTR,PCFJZH-450(TOK) L981 8Z-ZA1-667-010 COIL,AM PACK4F(TOK) X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 DECK C.B CNA1 82-ZM1-636-010 CONN ASSY,9P 87-045-347-010 MOT,SHU2L 70 SFR1 87-024-581-010 SFR,3.3K H KVSF637A SOL2 82-ZM3-628-010 SOL ASSY,23SO 87-036-110-010 SW,MICRO SPPB62 87-036-110-010 SW,MICRO SPPB62 87-036-110-010 SW,MICRO SPPB62...

  • Page 7: Wiring - 1 (Tuner)

    WIRING – 1 (TUNER) – 7 –...

  • Page 8: Schematic Diagram (Tuner)

    SCHEMATIC DIAGRAM (TUNER) – 8 –...
  • Page 9 WIRING – 2 (DECK / HEAD) – 9 –...

  • Page 10: Mechanical Exploded View

    MECHANICAL EXPLODED VIEW 1 / 1 ZZA-1 PWB. 2ZM-1 HT-SINK,ASSY SUB PWB. PWB. HT-SINK MAIN SH,CD COVER PWB. PWB. PWB. TN-CCD1001 CHAS,MAIN – 10 –...

  • Page 11: Mechanical Parts List

    MECHANICAL PARTS LIST 1 / 1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 1 8A-CJ5-016-010 KNOB,RTRY JOG 41 8A-CL5-325-010 SPR-C,TURN 2 8A-CJ5-217-010 PLATE,JOG 42 87-NF8-220-010 DMPR,150 3 8A-CJ5-017-010 REFLECTOR,JOG 43 8A-CL5-044-110 PANEL,SIDE L(B) 4 8A-CL5-023-010 PANEL,FR CASS(B) 44 8A-CJ5-214-010 HLDR,TR...

  • Page 12: Tape Mechanism Exploded View

    TAPE MECHANISM EXPLODED VIEW 1 / 1 P.C.B SH, 1.63-3.2 -0.5 SLT HLDR, MOTOR PLATE, SHLD MOTOR HLDR, IC – 12 –...

  • Page 13: Tape Mechanism Parts List

    TAPE MECHANISM PARTS LIST 1 / 1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 1 82-ZM1-247-210 PULLEY,MOTOR 31 82-ZM1-240-110 LVR,REC(*) 2 82-ZM1-354-010 BELT,SBU MAIN2 EPDM 32 82-ZM1-241-310 LVR,MC 3 82-ZM1-234-310 FLY-WHL ASSY,L 33 82-ZM1-257-010 SPR-T,CAS 4 82-ZM1-226-010 GEAR,REW 34 82-ZM1-285-410...

  • Page 14: Speaker Parts List

    SPEAKER PARTS LIST < SX-M7 > REF. NO. PART NO. KANRI DESCRIPTION 1 8A-CL5-404-010 GRILLE,FRAME ASSY 2 8A-CJ5-415-010 TERMINAL 3 8A-CL5-408-010 PANEL,SP B 4 8A-CJ5-417-010 SPKR, TW 25 5 8A-CL5-406-010 SPKR, W 87S1 6 8A-CL5-403-010 PANEL,FR B 7 8Z-CL5-543-010 CORD,SP ACCESSORIES / PACKAGE LIST REF.
  • Page 15 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 9301978 0251431 Printed in Singapore...
