thomann The T.Bone TWS One Guitar User Manual

Uhf wireless system
Hide thumbs Also See for The T.Bone TWS One Guitar:
Table of Contents

Advertisement

Quick Links

TWS One Guitar
UHF wireless system
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The T.Bone TWS One Guitar and is the answer not in the manual?

Questions and answers

Related Manuals for thomann The T.Bone TWS One Guitar

Summary of Contents for thomann The T.Bone TWS One Guitar

  • Page 1 TWS One Guitar UHF wireless system user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.09.2015, ID: 312554...

  • Page 3: Table Of Contents

    Table of contents Table of contents Safety instructions............................. 4 Features and scope of delivery......................8 Installation and starting up........................ 10 3.1 General Information........................10 3.2 Receiver............................... 11 3.3 Transmitter............................13 Connections and operating elements................... 15 4.1 Receiver............................... 15 4.2 Transmitter............................19 Technical specifications........................

  • Page 4: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used for the wireless transmission of audio signals from micro‐ phones or instruments to amplifiers or active speakers. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 5 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 6 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual cur‐ rent circuit breaker.
  • Page 7 Safety instructions NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. TWS One Guitar...

  • Page 8: Features And Scope Of Delivery

    Features and scope of delivery Features and scope of delivery The UHF wireless system TWS One Guitar is particularly suitable for professional audio trans‐ mission, for example, at events, on rock stages and in concert halls, theatres, musicals or disco‐ theques.
  • Page 9 Features and scope of delivery Included accessories: 12 V power adapter, cable with two 1/4" phone plugs for connection to a mixer or amplifier, instrument cable with one 1/4" and one 3.5 mm phone plug, two batteries, carrying case The system can be operated free of charge and registration in Europe. Two systems can be operated simultaneously.

  • Page 10: Installation And Starting Up

    This equipment uses a frequency range that is free of charge and registration within the European Union. For more information, please visit: http://www.thomann.de. Make sure that no metal objects are located between transmitter and receiver. Avoid interference by other radio and in-ear systems.

  • Page 11: Receiver

    Installation and starting up 3.2 Receiver Connecting the power supply NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual cur‐ rent circuit breaker.
  • Page 12 Installation and starting up Connecting audio and starting Connect the audio output of the receiver to your mixer or your amplifier. Set the volume control first as follows: If you are using a microphone input of your mixer, turn the knob to about 1 o'clock. If you are using a line input of your mixer, turn the knob clockwise all the way to the stop.

  • Page 13: Transmitter

    Installation and starting up 3.3 Transmitter Inserting batteries into the receiver Make sure that the transmitter is turned off, the main switch is in ‘OFF’ position. Open the battery compartment cover by pressing on the side latches. Insert the batteries. Pay attention to the correct location of the poles. Close the battery compartment and turn on the transmitter.
  • Page 14 Installation and starting up Connecting the instrument to the transmitter Make sure that the transmitter is turned off, the main switch is in ‘OFF’ position. Insert the 1/4" phone plug of the instrument cable into the output socket of your instru‐ ment and the 3.5mm plug into the input socket of the transmitter.

  • Page 15: Connections And Operating Elements

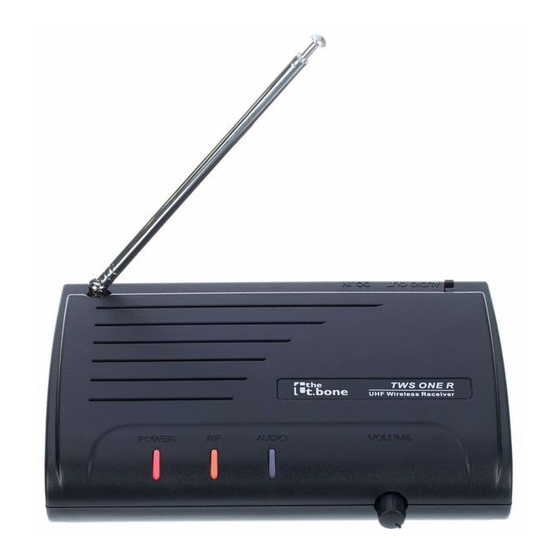

    Connections and operating elements Connections and operating elements 4.1 Receiver Front panel TWS One Guitar...
  • Page 16 Connections and operating elements 1 Rotatable and swivelling antenna. 2 [VOLUME] Output level control. 3 [AUDIO] The indicator lights green when an audio signal is received. 4 [RF] The LED lights orange when a radio connection to the transmitter is present. 5 [POWER] The LED lights red when the unit is powered on and ready for use.
  • Page 17 Connections and operating elements Rear panel TWS One Guitar...
  • Page 18 Connections and operating elements 1 Rotatable and swivelling antenna. 6 [DC IN] Socket for connecting the supplied AC adapter. If you are using a different power supply, observe the correct voltage, the polarity of the plug and the power consumption. 7 [AUDIO OUT] 1/4"...

  • Page 19: Transmitter

    Connections and operating elements 4.2 Transmitter TWS One Guitar...
  • Page 20 Connections and operating elements 8 Indicator LED Displays the state of the batteries. If you turn on the transmitter, the LED lights up briefly, indicating that the batteries still provide sufficient voltage. When the LED lights continuously, the batteries are exhausted. In this case, you should replace the batteries or charge the rechargeable batteries.

  • Page 21: Technical Specifications

    Technical specifications Technical specifications 5.1 Receiver Output 1/4" phone socket (unbalanced) Output Level (@ a 3 kΩ load) -18 dBV Output impedance 1 kΩ Carrier frequency UHF band (863…865 MHz) Modulation type Frequency modulation (FM) Transmission range under normal conditions approx.

  • Page 22: Transmitter

    Technical specifications Dynamic range > 90 dB (A-weighted) Operating supply voltage DC 12 V Dimensions (W × D × H, without antenna) 150 mm × 118 mm × 35 mm Weight 180 g 5.2 Transmitter Input 3.5 mm Phone plug Input impedance 470 kΩ...
  • Page 23 Technical specifications Battery life span > 8 h Dimensions (W × D × H, without antenna) 65 mm × 23 mm × 105 mm Height with antenna 170 mm Weight (without batteries) 77 g TWS One Guitar...

  • Page 24: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 25 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground 1/4"...

  • Page 26: Troubleshooting

    Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: UHF wireless system...
  • Page 27 Troubleshooting Symptom Remedy No sound 1. Check the power supply of transmitter and receiver. 2. Make sure that transmitter and receiver are operating in the same frequency range. The frequency can be found on the devices. 3. Test the connection between the receiver and the connected audio device (amplifier, mixer).
  • Page 28 Toggle the sensitivity selector switch on the transmitter of change the setting of the controller [VOLUME on the receiver]. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. UHF wireless system...

  • Page 29: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
  • Page 30 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE). Do not dispose with your normal household waste. Dispose this device through an approved waste disposal firm or through your local waste facility.
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
