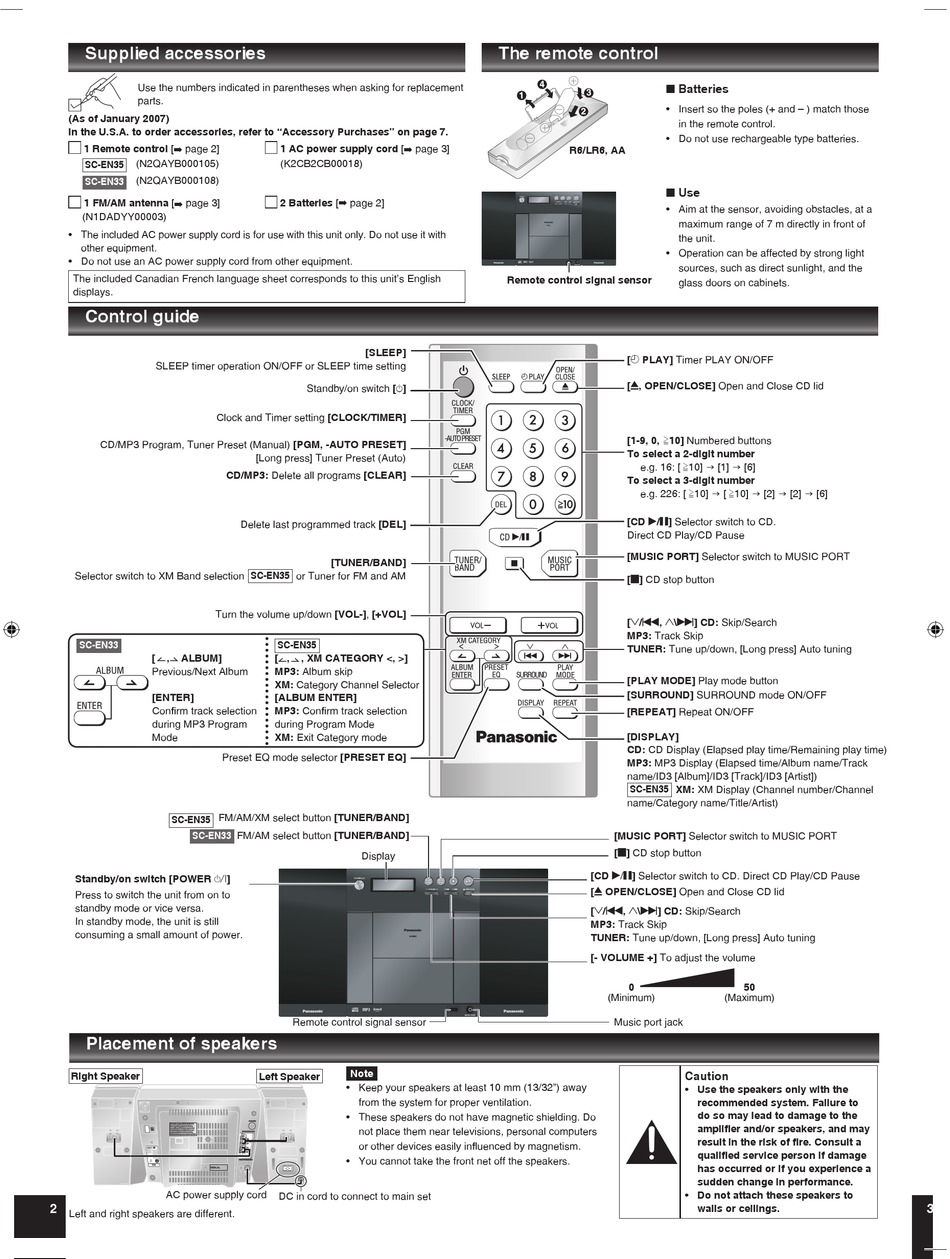

Supplied accessories

Use the numbers indicated in parentheses when asking for replacement
parts.
(As of January 2007)
In the U.S.A. to order accessories, refer to "Accessory Purchases" on page 7.
1 Remote control [ ➡ page 2]
SC-EN35 (N2QAYB000105)
(N2QAYB000108)
SC-EN33
1 FM/AM antenna [ ➡ page 3]
(N1DADYY00003)
• The included AC power supply cord is for use with this unit only. Do not use it with
other equipment.
• Do not use an AC power supply cord from other equipment.
The included Canadian French language sheet corresponds to this unit's English
displays.

Control guide

SLEEP timer operation ON/OFF or SLEEP time setting
Clock and Timer setting [CLOCK/TIMER]
CD/MP3 Program, Tuner Preset (Manual) [PGM, -AUTO PRESET]
Selector switch to XM Band selection
Turn the volume up/down [VOL-], [+VOL]
SC-EN33
[ , ALBUM]
Previous/Next Album
[ENTER]
Confirm track selection
during MP3 Program
Mode
FM/AM/XM select button [TUNER/BAND]
SC-EN35
SC-EN33
Standby/on switch [POWER 8]
Press to switch the unit from on to
standby mode or vice versa.
In standby mode, the unit is still
consuming a small amount of power.
Placement of speakers
Right Speaker
AC power supply cord
2
Left and right speakers are different.
1 AC power supply cord [ ➡ page 3]
(K2CB2CB00018)
2 Batteries [➡ page 2]
[SLEEP]
Standby/on switch [^]
[Long press] Tuner Preset (Auto)
CD/MP3: Delete all programs [CLEAR]
Delete last programmed track [DEL]
[TUNER/BAND]
SC-EN35
or Tuner for FM and AM
SC-EN35
[ , , XM CATEGORY <, >]
MP3: Album skip
XM: Category Channel Selector
[ALBUM ENTER]
MP3: Confirm track selection
during Program Mode
XM: Exit Category mode
Preset EQ mode selector [PRESET EQ]
FM/AM select button [TUNER/BAND]
Display
Remote control signal sensor
Note
Left Speaker
• Keep your speakers at least 10 mm (13/32") away
from the system for proper ventilation.
• These speakers do not have magnetic shielding. Do
not place them near televisions, personal computers
L or other devices easily influenced by magnetism.
R
• You cannot take the front net off the speakers.
DC in cord to connect to main set
The remote control
R6/LR6, AA
SA-EN35 SA-EN35
Remote control signal sensor
SA-EN35
SA-EN35
■ Batteries
• Insert so the poles (+ and – ) match those
in the remote control.
• Do not use rechargeable type batteries.
■ Use
• Aim at the sensor, avoiding obstacles, at a
maximum range of 7 m directly in front of
the unit.
• Operation can be affected by strong light
sources, such as direct sunlight, and the
glass doors on cabinets.
[z PLAY] Timer PLAY ON/OFF
[;, OPEN/CLOSE] Open and Close CD lid
[1-9, 0, ≧10] Numbered buttons
To select a 2-digit number
e.g. 16: [ ≧10]  [1]  [6]
To select a 3-digit number
e.g. 226: [ ≧10]  [ ≧10]  [2]  [2]  [6]
[CD q/h] Selector switch to CD.
Direct CD Play/CD Pause
[MUSIC PORT] Selector switch to MUSIC PORT
[g] CD stop button
[2/u, 1\i] CD: Skip/Search
MP3: Track Skip
TUNER: Tune up/down, [Long press] Auto tuning
[PLAY MODE] Play mode button
[SURROUND] SURROUND mode ON/OFF
[REPEAT] Repeat ON/OFF
[DISPLAY]
CD: CD Display (Elapsed play time/Remaining play time)
MP3: MP3 Display (Elapsed time/Album name/Track
name/ID3 [Album]/ID3 [Track]/ID3 [Artist])
SC-EN35 XM: XM Display (Channel number/Channel
name/Category name/Title/Artist)
[MUSIC PORT] Selector switch to MUSIC PORT
[g] CD stop button
[CD q/h] Selector switch to CD. Direct CD Play/CD Pause
[; OPEN/CLOSE] Open and Close CD lid
[2/u, 1\i] CD: Skip/Search
MP3: Track Skip
TUNER: Tune up/down, [Long press] Auto tuning
[- VOLUME +] To adjust the volume
0 50
(Minimum) (Maximum)
Music port jack
Caution
• Use the speakers only with the
recommended system. Failure to
do so may lead to damage to the
amplifier and/or speakers, and may
result in the risk of fire. Consult a
qualified service person if damage
has occurred or if you experience a
sudden change in performance.
• Do not attach these speakers to
walls or ceilings.
