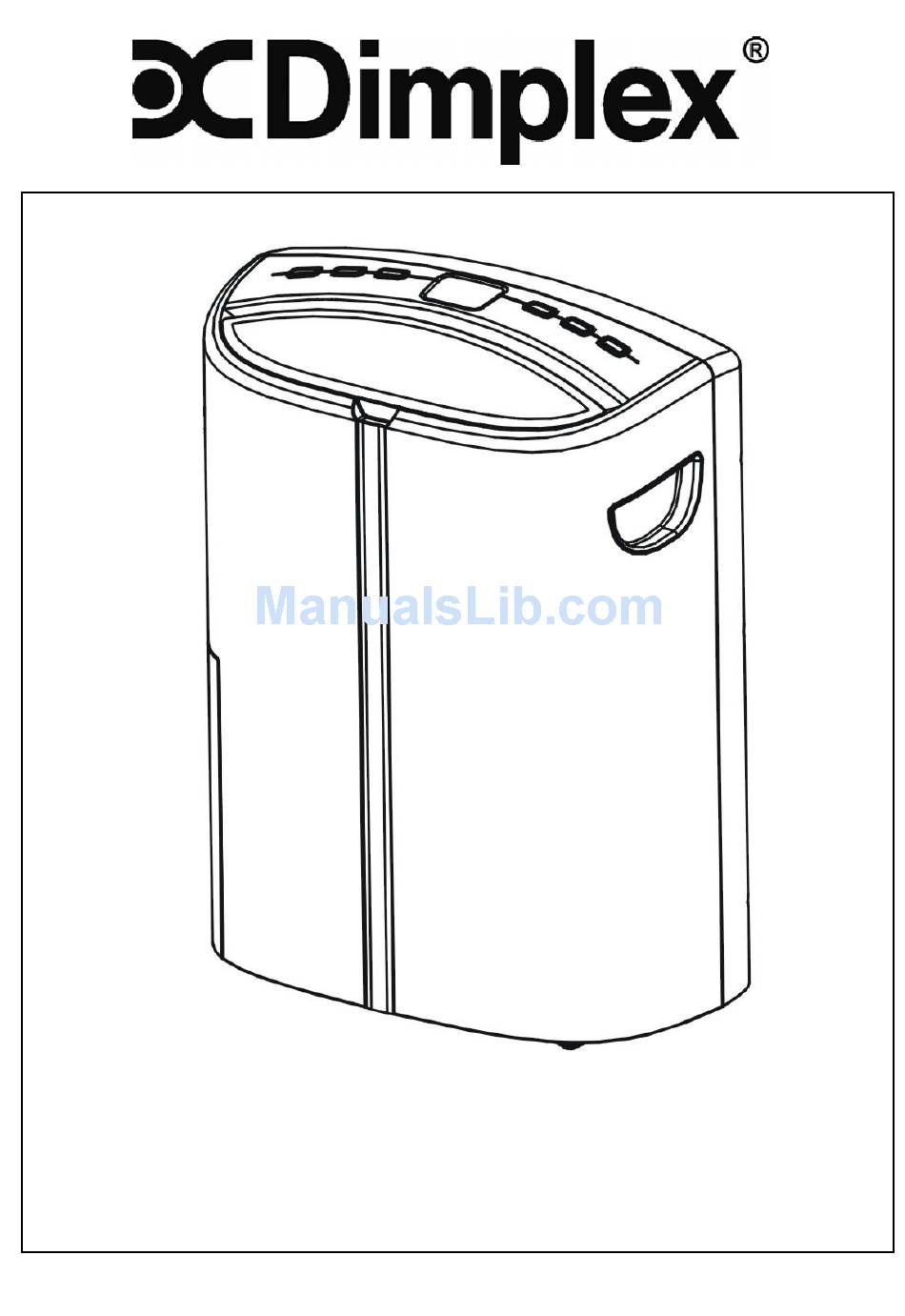

- Page 1 20L Dehumidifier – DACDEHU3 Please read this manual carefully before use and keep it for future reference...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read all instructions. 2. Disconnect the power plug before dismantling, assembling or before cleaning. 3. Avoid touching mobile parts of the product. 4. Make sure the product is on a dry and even surface. 5. Never insert fingers, pencils or any other objects into the product whenever the power plug is connected, especially while running. -
Page 3: Specifications
SPECIFICATIONS Model no. DACDEHU3 Power supply 220V-240V~, 50Hz Moisture removal capacity 20L/day Power /Ampere consumption * 370W/ 1.7A Compressor Rotary Refrigerant R134a Working range 5 ~ 35 Water tank capacity 5.5 L Size (WxDxH) 410 x 210 x 545 mm N.W. -
Page 4: Where To Position
DRY WARMER AIR CONDENSER EVAPORATER MOIST MOTOR SATURATED AIR MICRO SWITCH WATER TANK COMPRESSOR WATER TANK WHERE TO POSITION Excess moisture will travel throughout your home, in the same way that cooking smells waft to every room in the house. For this reason, the dehumidifier should be positioned, so that it can draw this moist air towards it from all over the home. - Page 5 PARTS Front Control panel Cover for air outlet Air outlet Water full indicator Water tank Handle Rear Air filter / air outlet Power cord Handle 10. Hole for continuous drainage 11. Water tank 12. Caster Assembly of the filters...
-
Page 6: How To Use
HOW TO USE Control Panel Heat button (only for the model with Display window heat function) Speed (ventilation) button UV light button (only for the model Humidity selection button with UV function) ON/OFF button Timer Display Window Displays the level of humidity permissible before the dehumidifier will begin: Continuous dehumidifying;... - Page 7 Indicates that the compressor is in progress. In case the de-frost function is working, the water drops will flash. Indicates that the compressor is not in progress. Indicated that the water tank is full and requires emptying. Heat indicator (only for the model with heat function): UV ( ultraviolet ) indicator, only for the model with UV light.
- Page 8 DRAINAGE Whenever the water tank is full, the unit is unbalanced or the water tank is not positioned properly, the compressor will stop and: • will flash indicating water full. • The water level window will turn into red. • The unit will buzz.
-
Page 9: Maintenance
Water tube of inner diameter 12 mm is required. Please note, the tube is not supplied with the unit. MAINTENANCE • Always unplug the unit from the mains before carrying out any maintenance or cleaning of the unit. • Use soft cloth to wipe the unit clean. •... -
Page 10: Troubleshooting
TROUBLE SHOOTING THE UNIT DOES NOT OPERATE: • Is the unit plugged in? • Is the house electricity on? • Is the room temperature below 5 C or above 35 C? If so, then it is out of the working range of the unit. •...
