Owner's Manual
This installation instruction is for 73ACA051T,
73ACA051B, 73ACA061T, 73ACA081T, and
73ACA101P air-conditioning units. Read entire
installation instructions before proceeding with
installation.
REQUIRED TOOLS
• Phillips screwdriver
• pencil
• level
• measuring tape
• drill
•
1
/
and
1
/
-in. drill bits
8
4
INSTALLATION
Electrical shock can cause injury or death. Do not
install unit or remove front grille with the power
cord plugged in. Be sure unit is unplugged before
performing any installation or maintenance.
WIRING
The air conditioner is powered by plugging it into a
compatible wall outlet. The electrical outlet MUST
match the plug on the unit power cord. The unit name-
plate contains unit electrical data, unit ratings, and
identification numbers. Do not use a plug adapter or an
extension cord.
Electrical shock can cause injury or death. Do not,
under any circumstances, cut, remove, or bypass the
grounding prong on the power plug.
Check available power supply and resolve any wiring
problems before installing and operating the air condi-
tioner. If wiring is required, all wiring must comply
with all local and national electrical codes. All wiring
must be installed by a qualified electrician. If you have
any questions regarding the unit electrical data or wir-
ing, consult a qualified electrician before installation.
The French section follows the English section in this manual.
Les instructions en français suivent celles en anglais.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
PC 131
Book
1
4
Tab
8a 10a
INSTALLATION
INSTRUCTIONS
Catalog No. 537-338
Printed in U.S.A.
ACA
SERIES
For your safety, this air conditioner is grounded
through the power cord plug when plugged into a
matching wall outlet.
WINDOW INSTALLATION
To install the room air conditioner in a window,
perform the following procedure.
1. Check contents of hardware kit. See Table 1. Make
sure all the items are in the plastic bag.
2. Determine which window will be used for installa-
tion. Make sure there is adequate clearance on the
inside and outside of the window. Ensure that the
power cord will reach the available socket without
an extension cord. A double-hung window type
must be used for the installation location.

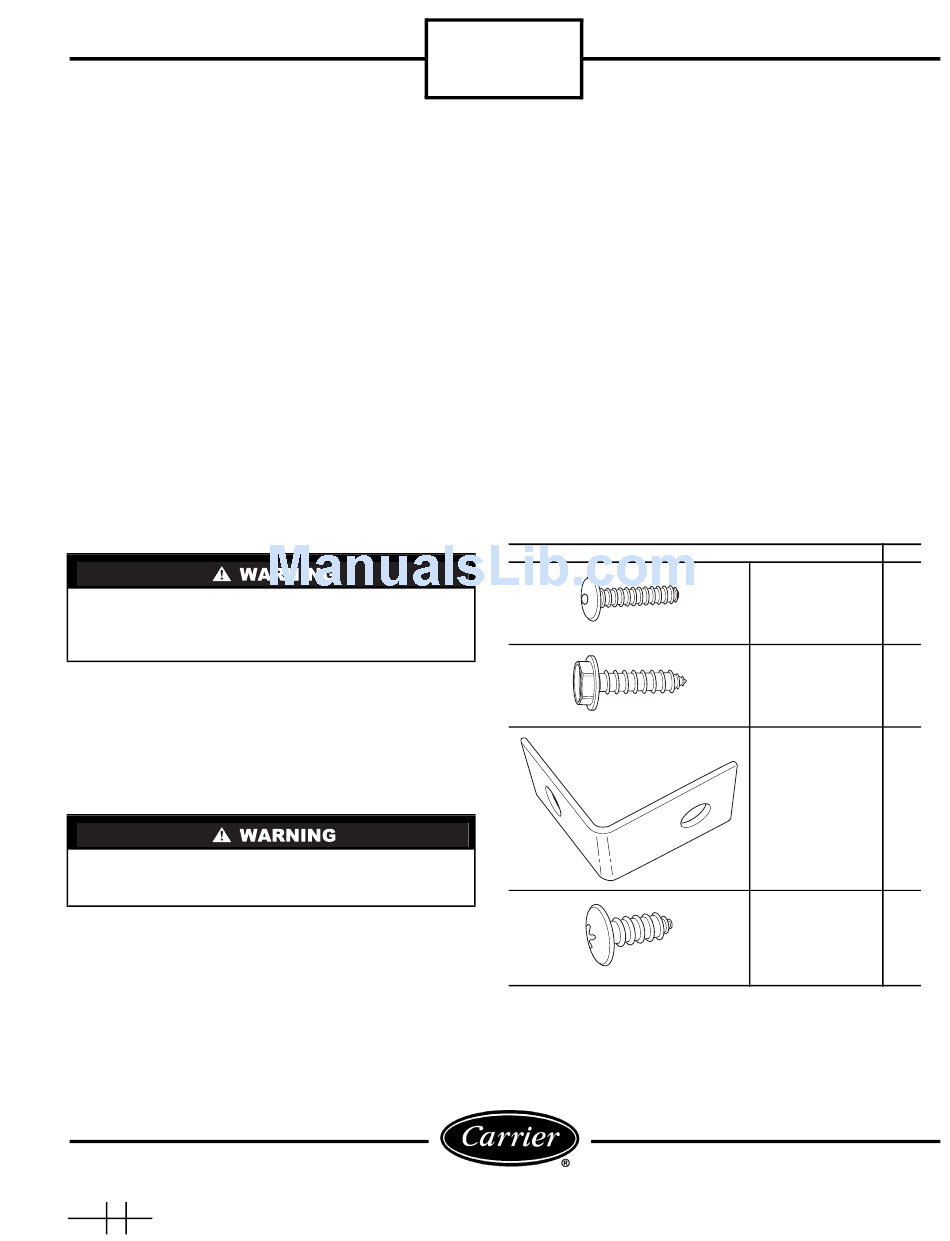

TABLE 1 — HARDWARE CONTENTS
The Spanish section follows the French section in this manual.
La sección en español aparece después de la sección en francés en
Form 73ACA-1SI
ITEM
3
/
-in. locking screws
4
frame/sill
3
/
-in. screw sash
4
safety bracket
Sash safety bracket
1
/
-in. locking screws
2
frame/sash
este manual.
Pg 1
1-03A
10-02
QTY
2
1
1
2
Replaces: New
Advertisement
Related Manuals for Carrier 73ACA051T
Summary of Contents for Carrier 73ACA051T
-
Page 1: Window Installation
SERIES INSTALLATION INSTRUCTIONS This installation instruction is for 73ACA051T, For your safety, this air conditioner is grounded 73ACA051B, 73ACA061T, 73ACA081T, and through the power cord plug when plugged into a 73ACA101P air-conditioning units. Read entire matching wall outlet. installation instructions before proceeding with installation. - Page 2 SERIES 3. Check that the window opening dimensions are suitable for installation. The window must be from 22 to 36-in. wide and the window must open at least 14 -in. high. It is recommended that the window sill be at least -in.
- Page 3 9. Slide the top and bottom guide rails into the slots 12. Pull out the expanding side panels from the sides in the top and the bottom of the cabinet. See of the cabinet. The panels should expand to cover Fig.
-
Page 4: Storm Window Applications
SERIES FIGURE 11 — INSTALLING FOAM SEAL FIGURE 9 — SECURING SIDE PANEL TO SASH 14. Install the sash safety bracket with a -in. screw provided. Pre-drill the hole with -in. drill bit. The sash safety bracket is installed on the upper STORM WINDOW APPLICATIONS sash and is used to keep the window from open- If the storm window cannot be removed, a mounting... - Page 5 FIGURE 12 — STORM WINDOW APPLICATIONS REMOVING UNIT FROM WINDOW The air conditioning unit may need to be removed for the end of cooling season of for maintenance. Be sure After side panel screws are removed, cabinet is not to save and store all parts for re-installation. To secure and may fall out of window.
- Page 8 SERIES Copyright 2002 Carrier Corporation Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. PC 131 Catalog No. 537-338 Printed in U.S.A. Form 73ACA-1SI Pg 8 1-03A 10-02 Replaces: New...
