- Page 1 S4WA, S5WA User manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 22.03.2016 Issue 1...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 General information about this manual 2 For your safety 3 Features 4 Installation 5 Connections and controls 6 Technical specifications 7 Plug and connection assignment 8 Protecting the environment User manual S4WA, S5WA (Issue 1) 3 / 20... -
Page 4: General Information About This Manual
General information about this manual General information about this manual This user manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. -
Page 5: For Your Safety
For your safety For your safety Intended use This device is designed as a PA system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid- ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 6 For your safety NOTICE Operating conditions This device has been designed for indoor use only. à To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. 6 / 20 User manual S4WA, S5WA (Issue 1)
-
Page 7: Features

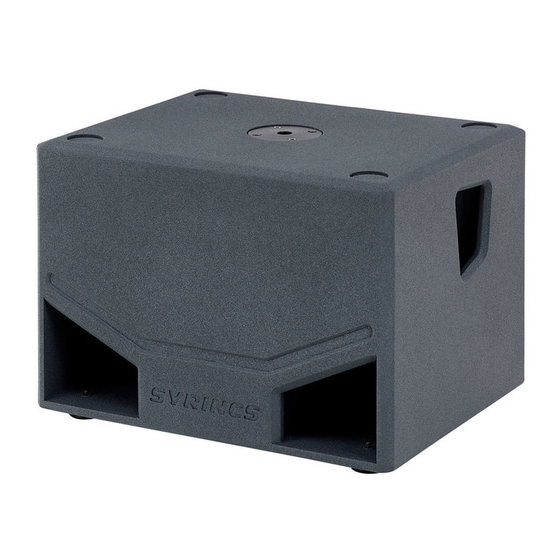

Features Features Special features of this active subwoofer: – XLR/1/4" jack combo-socket and RCA installation socket for signal input – XLR chassis connector for signal output – Integrated digital amplifier with sound processor (DSP) – Setting options and display for delay time, crossover frequency and vol- –... -
Page 8: Installation
Installation Installation Unpack the device and check carefully that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the prod- uct against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 9 Installation If you notice distortion during operation, either the amp or the speaker is over- loaded. This may permanently damage the amp or the speaker. Always reduce the volume as soon as you notice distortion. User manual S4WA, S5WA (Issue 1) 9 / 20...
-
Page 10: Connections And Controls
Connections and controls Connections and controls ö & LOCKED Display. Shows the set values for delay time, crossover frequency and volume. VOLUME Volume control. X-OVER Control for adjusting crossover frequency. DELAY Control for adjusting delay time. This allows you to balance out time differenc- es when speakers are arranged at an offset. - Page 11 Connections and controls Control LEDs – LIMIT: The red LED indicates that the limiter has been triggered. – SIGNAL: The green LED indicates that a signal is present at the input. – POWER: The green LED lights up when the device is turned on. DELAY Switch for locking delay time setting.
-
Page 12: Technical Specifications
Technical specifications Technical specifications S4WA Configuration 12-inch-neodymium-woofer Power handling 1000 W (RMS) Maximal sound pressure 125 dB (1 m) 131 dB (peak) Frequency range 50 Hz … 120 Hz (–3 dB) Dimensions (W × H × D) 550 mm × 360 mm × 438 mm Weight 23 kg 360 mm... - Page 13 Technical specifications S5WA Configuration 15-inch-neodymium-woofer Power handling 1000 W (RMS) Maximal sound pressure 126 dB (1 m) 132 dB (peak) Frequency range 50 Hz … 120 Hz (–3 dB) Dimensions (W × H × D) 590 mm × 4400 mm × 550 mm Weight 30 kg 550 mm...
- Page 14 Technical specifications Frequency response S4WA Frequency response S5WA 14 / 20 User manual S4WA, S5WA (Issue 1)
-
Page 15: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your val- uable equipment in such a way that a perfect sound experience is ensured. Please follow these tips, because special care is required when dealing with sound and light: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or just in poor transmission quality! - Page 16 Plug and connection assignment 1/4" TRS phone plug (mono, balanced) Signal (in phase, +) Signal (out of phase, −) Ground XLR connector (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) XLR connector (unbalanced) Ground, shielding Signal Jumpered with pin 1 16 / 20 User manual S4WA, S5WA (Issue 1)
- Page 17 Plug and connection assignment RCA connections The figure and the table show the pin assignment of an RCA connector. Signal Ground User manual S4WA, S5WA (Issue 1) 17 / 20...
-
Page 18: Protecting The Environment
Protecting the environment Protecting the environment Packaging For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 19 Notes User manual S4WA, S5WA (Issue 1) 19 / 20...
