Transceiver Board Removal - Motorola GM338 Basic Service Manual

2-6
6.3

Transceiver Board Removal

1.
2.
3.
CAUTION: The thermal grease or pads can act as an adhesive and cause the leads of the heat
!
dissipating devices to be over stressed if the board is lifted too quickly.
Downloaded from www.Manualslib.com

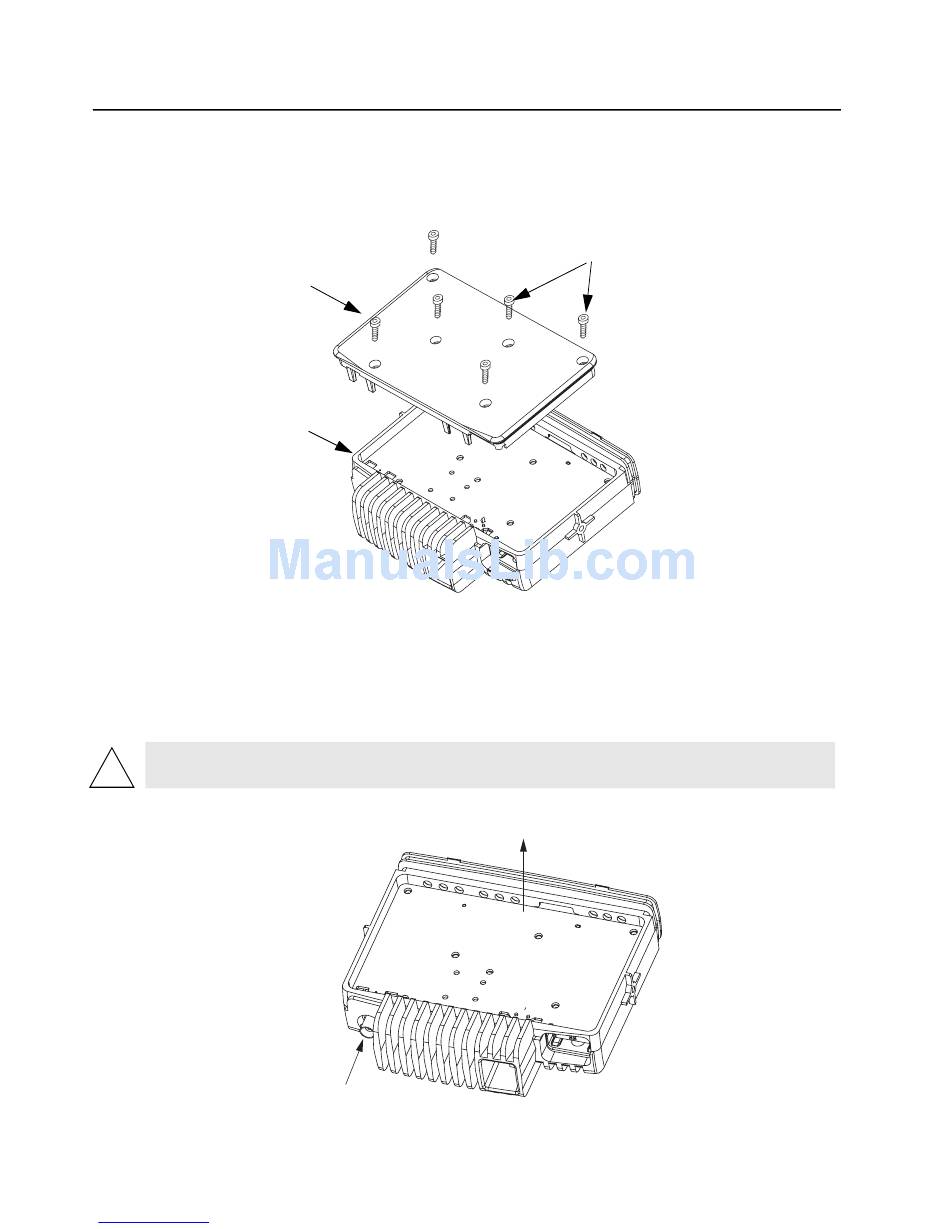

Remove six screws from the diecast cover using the T20 TORX™ driver as shown in
Figure 2-4.
Lift the cover from the chassis.
Diecast
Cover
Radio
Chassis
Figure 2-4 Diecast Cover Removal.
Slowly lift the transceiver board on the edge at the front of the radio (the edge that mates with
the control head) and pull gently toward the front of the radio as shown in Figure 2-5. Take
care to slide the antenna connector and power connector out of the chassis towards the front.
Antenna
Connector
Figure 2-5 Transceiver Board Removal
manuals search engine
Radio Disassembly - Detailed
Screws (6)
Lift
ZWG0130212-O
ZWG0130213-O
