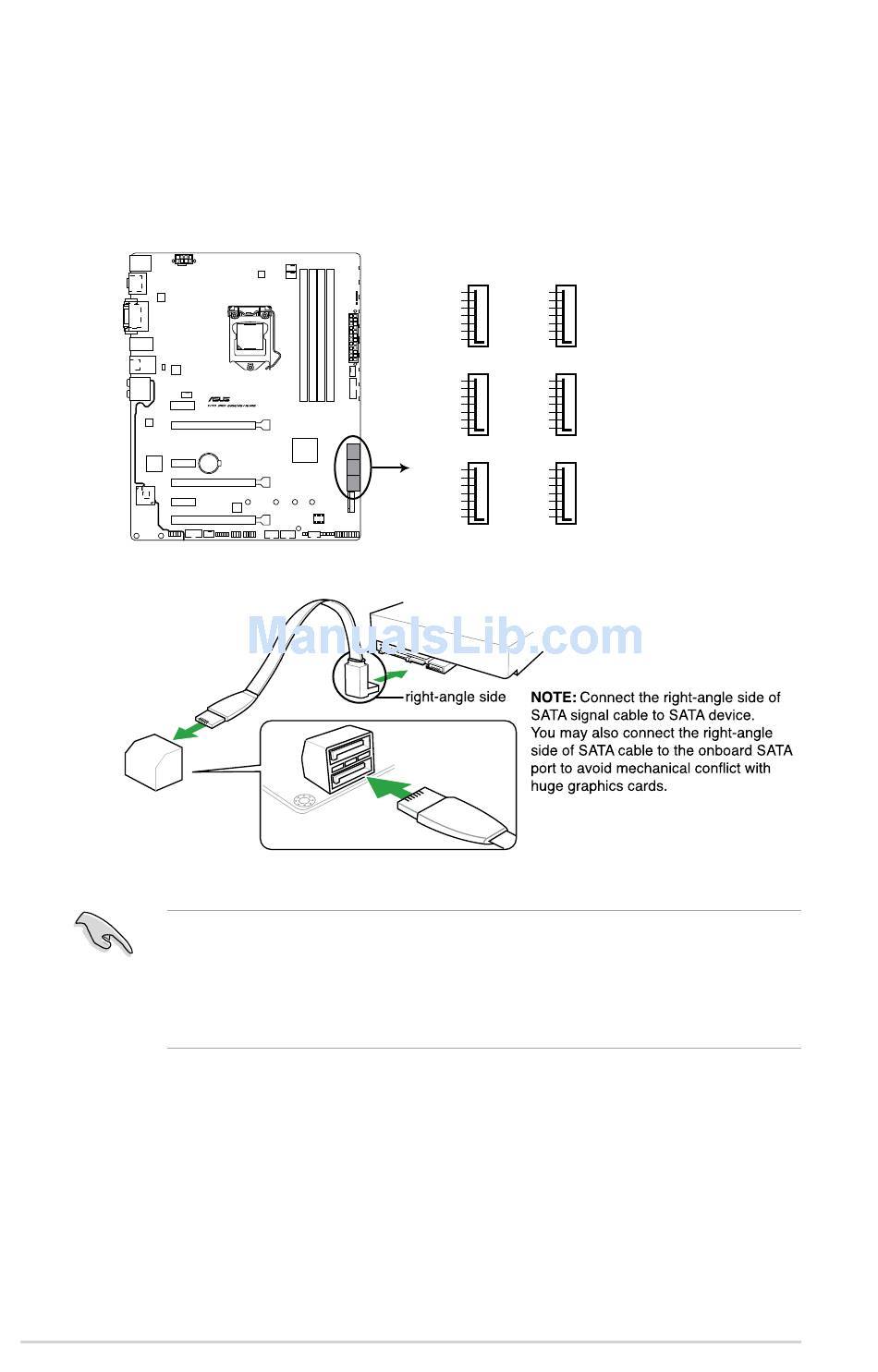

9. Intel Z170 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~6)
®
This connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
configuration with the Intel
Z170 chipset.
Z170 PRO GAMING/AURA Intel
•
•
1-22
Rapid Storage Technology through the onboard Intel
®
These connectors are set to [AHCI] by default. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID].
Refer to section 2.6.6 PCH Storage Configuration for details.
Before creating a RAID set, refer to the manual bundled in the motherboard support
DVD.
SATA6G_1 SATA6G_2
GND GND
RSATA_TXP1 RSATA_TXP2
RSATA_TXN1 RSATA_TXN2
GND GND
RSATA_RXN1 RSATA_RXN2
RSATA_RXP1 RSATA_RXP2
GND GND
SATA6G_3 SATA6G_4
GND GND
RSATA_TXP3 RSATA_TXP4
RSATA_TXN3 RSATA_TXN4
GND GND
RSATA_RXN3 RSATA_RXN4
RSATA_RXP3 RSATA_RXP4
GND GND
SATA6G_5 SATA6G_6
GND GND
RSATA_TXP5 RSATA_TXP6
RSATA_TXN5 RSATA_TXN6
GND GND
RSATA_RXN5 RSATA_RXN6
RSATA_RXP5 RSATA_RXP6
GND GND
SATA 6.0Gb/s connectors
®
Chapter 1: Product introduction
®
