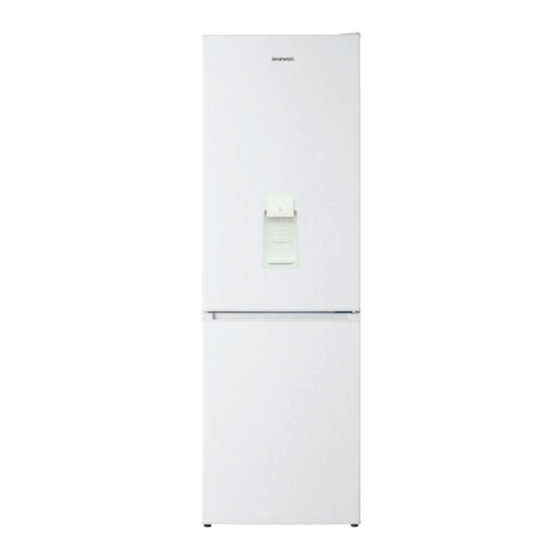

- Page 1 RFP301DCP8 Service Manual ~ Ballista Dispenser ~ F/Model : FRP-301D.. B/Model: RF-331D.. RN-331D.. ● Notice ) RF : R-134a (Refrigerant) RN : R-600a (Refrigerant) Ver. 1.0 Dec. 2014.
-
Page 2: Warnings And Precautions For Safety
WARNINGS AND PRECAUTIONS FOR SAFETY Please observe the following safety precautions in order to use safely and correctly the refrigerator and to prevent accident and danger during repair. 1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than three minutes before replacing PCB parts. -
Page 3: Specifications
1. SPECIFICATIONS * is the Door Type 1-1. Model Information Buyer No. RN-33*D Factory No. RFP-30*D*P8N Total Gross Vol. ISO 15502 Freezer (unit: L) Refrigerator Total Storage Vol. ISO 15502 Freezer (unit: L) Refrigerator Net Width (Packing) 595(634) Diemension Net Depth (Packing) 650(685) (unit: mm) Net Height (Packing) - Page 4 1. SPECIFICATIONS 1-2. Interior Parts 8. Refrigerator Pocket "J" 1. Refrigerator Shelves 9. Freezer Shelves 2. Lamp Window 10. Freezer Case "A" 3. Multi Duct 11. Freezer Case "B" 4. Knob R Control 12. Adjusting Leg (Left) 5. Cover Vegetable Case 13.
- Page 5 1. SPECIFICATIONS 1-3. Machine (Compressor) Compartment View - Features are model dependent 8. Suction Pipe As 1.Box Power As (Capacitor Run) 9. Dryer As 2. Power Cord 10. Case vaporization As 3. Switch P Relay As 11.Pipe connector A 4. Earth Comp Wire 12.
- Page 6 1. SPECIFICATIONS 1-4. Refrigerant Cycle Suction Pipe ⑦ Evaporator ⑥ ⑧ ③ ② ④ ① Compressor Pipe connector A Dryer ⑤ - Welding Point Copper Welding ( Ag 5%) 5 Point Silver Welding ( Ag 30%) 3 Point...
-
Page 7: Freezer Mode
1. SPECIFICATIONS 1-5. Temperature Diagram Refrigerator Dial Mode MIN: 5 ~ 8℃ MID: 2 ~ 5℃ MAX: -1 ~ 2℃ Vegetable compartment : 1 ~ 5℃ Freezer Mode LOW: -17 ~ -19℃ MID: -19 ~ -22℃ HIGH: -22 ~ -25℃ * Features are model dependent ;... - Page 8 1. SPECIFICATIONS 1-6. Wiring Diagram...
- Page 9 1. SPECIFICATIONS 1.7. Main PCB Circuit Diagram...
- Page 10 2. FUNCTIONS 2-1. "PCB VOLUME" Control INPUT CONTROL OBJECT - Turn 'DIAL KNOB' on the 'COVER M/FLOW -PCB Volume DUCT'. - Temperature is controlled by "PCB Volume" assembled with "Dial Knob". - 16step(0step ~ 15step) mode of successive temperature mode - Each model is diffrent using range.
- Page 11 2. FUNCTIONS 2-2. Temperature Control of Refrigerator Compartment INPUT CONTROL OBJECT - Turn 'DIAL KNOB' - COMPRESSOR - R sensor - FAN A. COMP and FAN will be controlled by the on/off condition of each mode. B. Temperature Difference of Refrigerator each step : STEP ON(℃) OFF(℃)
-
Page 12: Defrost Mode
2. FUNCTIONS 2-3. Defrost Mode INPUT CONTROL OBJECT - Compressor - Accumulated Compressor Run Time - F Fan - Running Time Ratio of Compressor - Defrost Heater - Accumulated Door Open Time - Ambient temperature (RT) A. Defrost Mode Operation conditon (1) In case accumulated compressor run times: 6, 8, 10, 12 hours, - when there occur any errors: R1, D1, C1, RT, Door SW error etc. - Page 13 2. FUNCTIONS 2-3. Defrost Mode D. Flow chart of How to Start Defrost Mode ※ A.C.R.T. : Accumulated Compessor Run Times ※ R.R.O.C. : Running Rate of Compressor ※ RT: Ambient temperature Start A.C.R.T.= 6,8,10,12hours Any Error R.R.O.C.(per 2hrs of A.C.R.T.)≥90% Accumulated Door Open Time≥2min.
- Page 14 2. FUNCTIONS 2-4. Function of Low Ambient Temperature (RT) INPUT CONTROL OBJECT - R HTR - COMP A. Condition of LOW RT - RT sensor below 20.7℃ - When the RT sensor is over 21.7℃, the system comes to be “General Operation Mode”. - When the RT sensor is between 20.7°C to 21.7°C, the system keeps the previous mode.
- Page 15 2. FUNCTIONS 2-7. Time Saving Function INPUT CONTROL OBJECT ”FAST KEY” Buzzer A. How to Save - 1 min : Click FAST KEY one time on MAIN PCB. - 30 min : If you press FAST KEY continuously, you can reduce 30 minutes on each 2.5 seconds with buzzer.
-
Page 16: Control Of R-Sensor Off Point
2.FUNCTIONS 2-8. Control of R-sensor OFF Point INPUT CONTROL OBJECT Control Resistance of R sensor OFF Point ”J1” , “J2” On Main PCB - When the refrigeration of refrigerator is poor or weak though Fan and COMP are working continuously, the following actions are recommended for service. - Page 17 2. FUNCTIONS 2-9. Error Display INPUT CONTROL OBJECT Sensor Error LED Lamp - ERROR DISPLAY - If appliance has any errors, LED on the Main PCB is flickering. - If the appliance is normal (no error), LED IS off. A. 'R1' ERROR : It happens when R-Sensor is OPEN or SHORT.
- Page 18 3. DISASSEMBLY 3-1. Tank water as 18 (2)
- Page 19 3. DISASSEMBLY 3-2. Door Switch...
- Page 20 3. DISASSEMBLY 3-3. Cover Multi-Flow Duct As (in Fresh food Compartment)
- Page 21 3. DISASSEMBLY 3-4. Louver F As (in Frozen Food Compartment)
- Page 22 3. DISASSEMBLY 3-5. DOOR F/R...
- Page 23 3. DISASSEMBLY 3-5. DOOR F/R...
-
Page 24: How To Change Door Position
4. How To Change Door Position Features 1-1> Tilt down the appliance to the rear. (Watch out for "Pipe Wire Condensor" damage.) 1-2> Disassemble following parts in order. - 'Top Cover Hinge' and 'Top Hinge'(a) 'Refrigerator Door'(b) - 'Middle Hinge'(c) - 'Middle Cover Hinge'(d) - 'Freezer Door'(e) - 'Under Hinge'(f) -
Page 25: Tools
5. How To Charge R-600a Refrigerant 5-1. Safety Warning ( R-600a Refrigerant Models Only) his appliance contains a certain amount of isobutane refrigerant (R600a) a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Page 26 5. How To Charge R-600a Refrigerant 5-3. Process Summary 1st Step. 2nd Step. 3th Step. R-600a ref. Removing Exchanging comp. discharging the remaning refrigerant & dryer / pipe welding - Connect the dis- - For removing of - Exchange Comp. and Dryer charging hose to remaning refrigerant., - Welding the Pipe...
- Page 27 5. How To Charge R-600a Refrigerant...
- Page 28 5. How To Charge R-600a Refrigerant...
- Page 29 5. How To Charge R-600a Refrigerant...
-
Page 30: Part List
6. PART LIST DOOR DOOR F RFP-241 / RFP-301 RFP-242 / 243/ 302 / 303 DOOR RFP-305 RFP-306 RFP-30V (HIDDEN HINGE TYPE) *Some parts can be changed for improving without notice. Date Note... - Page 31 Cabinet Cabinet / Condenser Cabinet compartment PART-CODE PART NAME SPEC. Q'ty ASSY CAB URT WHITE / SILVER/BLACK 3012937900 HINGE *T AS RFP-301 3001448500 PP, WHITE COVER HI *T 3001448510 PP,SILVER PP, BLACK 3001448520 ENERGY A+ , NORAML 30143KW0A0 PCB MAIN AS 30143KW0C0 ENERGY A+ + ONLY 3001416640...
- Page 32 Machine Compartment Cabinet PART-CODE PART NAME SPEC. Q'ty 3010365500 BASE COMP AS RFP-301 3010103410 ABSORBER COMP RUBBER 301119VJ01 CASE VAPORI AS PP,SEAL,ABSORBER 3956188C50 LZ88CY 220-240V 50HZ , A+ COMPRESSOR LR82CY 230V 50HZ, A++ 3956182M80 4019H09031 SPECIAL WASHER SWRH 3010583700 GI T0.5 , LZ88CY Only BOX POWER AS 3010583740 GI T0.5 , LR82CY Only...
- Page 33 Refrigerator & Freezer Compartment Cabinet PART-CODE PART NAME SPEC. Q'ty 3017070000 RFP-301(230V 130W) EVA AS 3017070020 RFP-301(DC MOTOR),230V,130W 3012831200 RFP-301(AC MOTOR), 230V, 130W 32-1 HEATER SHEATH AS RFP-301(DC MOTOR),230V,130W 3012831220 32-2 3012764100 HARNESS D SENS RFP-340(NBC-K43-24) 3018932500 RFP-301(AC 230V 50HZ) LOUVER F AS 3018932540 RFP-301(DC 12V)
- Page 34 Door&Pocket Compartment Cabinet PART-CODE PART NAME SPEC. Q'ty 30100CCL00 RFP-301D, WHITE PCB ASSY R DR 30100CCL10 RFP-301D, METAL SILVER 30100CCL20 RFP-301D, BLACK PCM PVC, WHITE,SILVER DOOR ONLY 3012331000 47-1 GASKET R DR AS 3012331010 PVC, BLACK DOOR ONLY 3014263400 WHITE 47-2 PANEL DISPNS AS 3014263410...
