NOTE:
Skip this section if you use the FD816C-HF2 in your configuration.

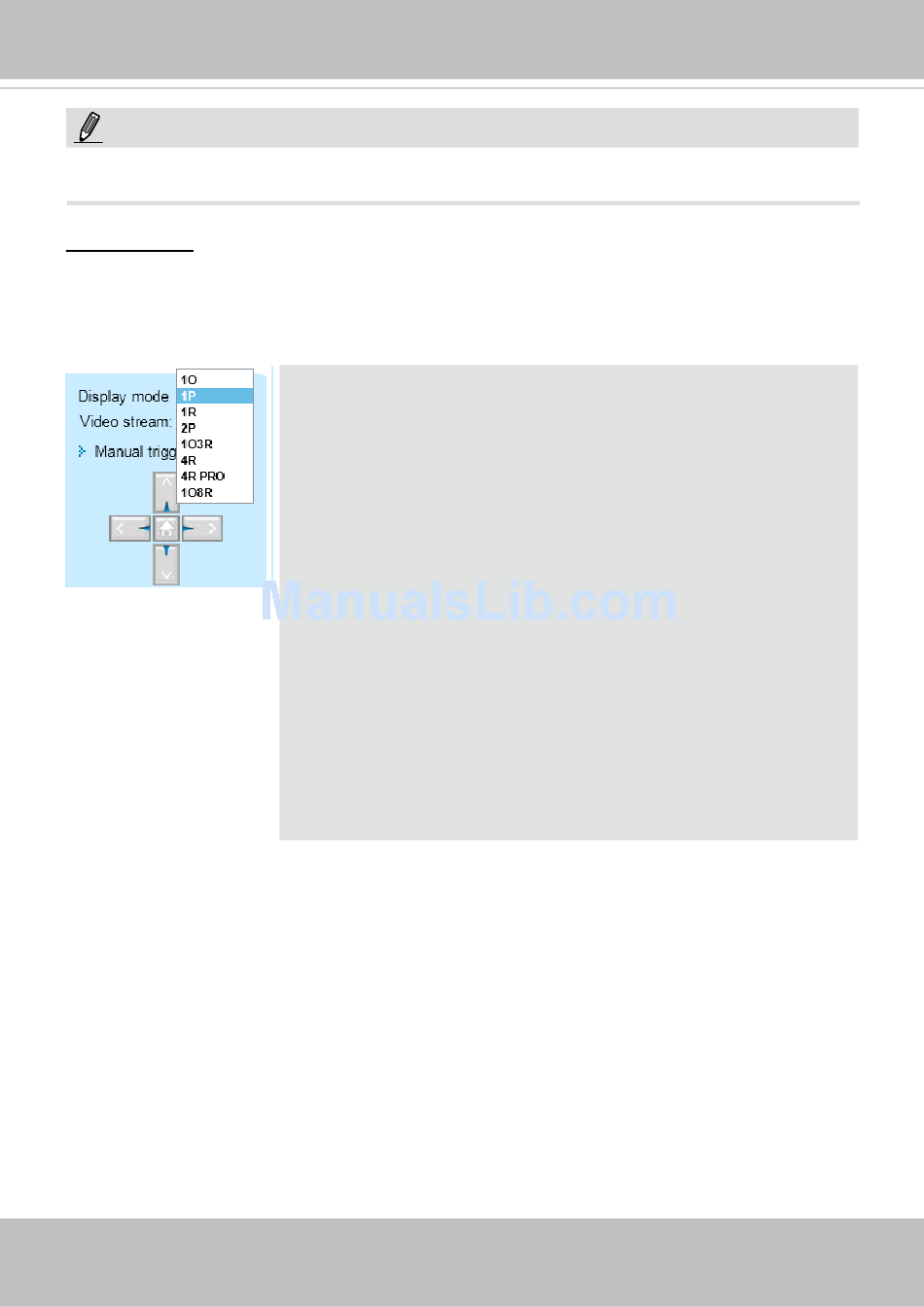

Display mode:
(This menu only displays with FE8182)
This is a configuration menu exclusively designed for Fisheye lens. Due to the fisheye lens' wide
coverage of 180º hemispheric and 360º panoramic views and to manipulate the details within, the
following display modes are provided:
1O - One Original fisheye view.
1P - One Panoramic view
1R - One Regional view
1P2R - One Panoramic and two Regional views
2P - Two Panoramic views
1P3R - One Panoramic and three Regional views
1O3R - One Original and three Regional views
4R - Four Regional views
4R PRO - Four Regional views interactively displayed when the field
of view changes in any of the views
1O8R - One Original and eight Regional views
* Most display modes are available in the Ceiling mount type.
* See following discussions for detailed explanation of these modes. If
selected, the Wall mount type provides another two distinctive modes.
