10. Disassembly and Reassembly

10. Disassembly and Reassembly

10.1. Disassembly of main unit

CAUTION
Precaution for disassembly/reassembly
1) Set up the repair table where the anti-static mat is installed to disassemble and reassemble the camera.
2) When handling the key PCB of the camera, wear the anti-static band on the wrist to prevent any error from static
electricity.
3) When handling key parts, be careful of the following.
Table 10.1 9-1
Part
F PCB Type
CCD and IR CUT
PCB Type
CONTACT Type
No
1
2
10-1
When assembling the F PCB to the CONNECTOR with a pin set, be careful not to
cause dents or tears on the PCB.
When handling the parts, be careful not to leave any fingerprints.
Use the pin set with soft tips.
When cleaning the parts with alcohol, be careful not to cause any stains.
Do the repair work in a dust free environment.
Always use the anti-static mat and wrist band, as the parts can be damaged from static
electricity from the hand.
Be careful of damage of deformation of parts from the pin set.

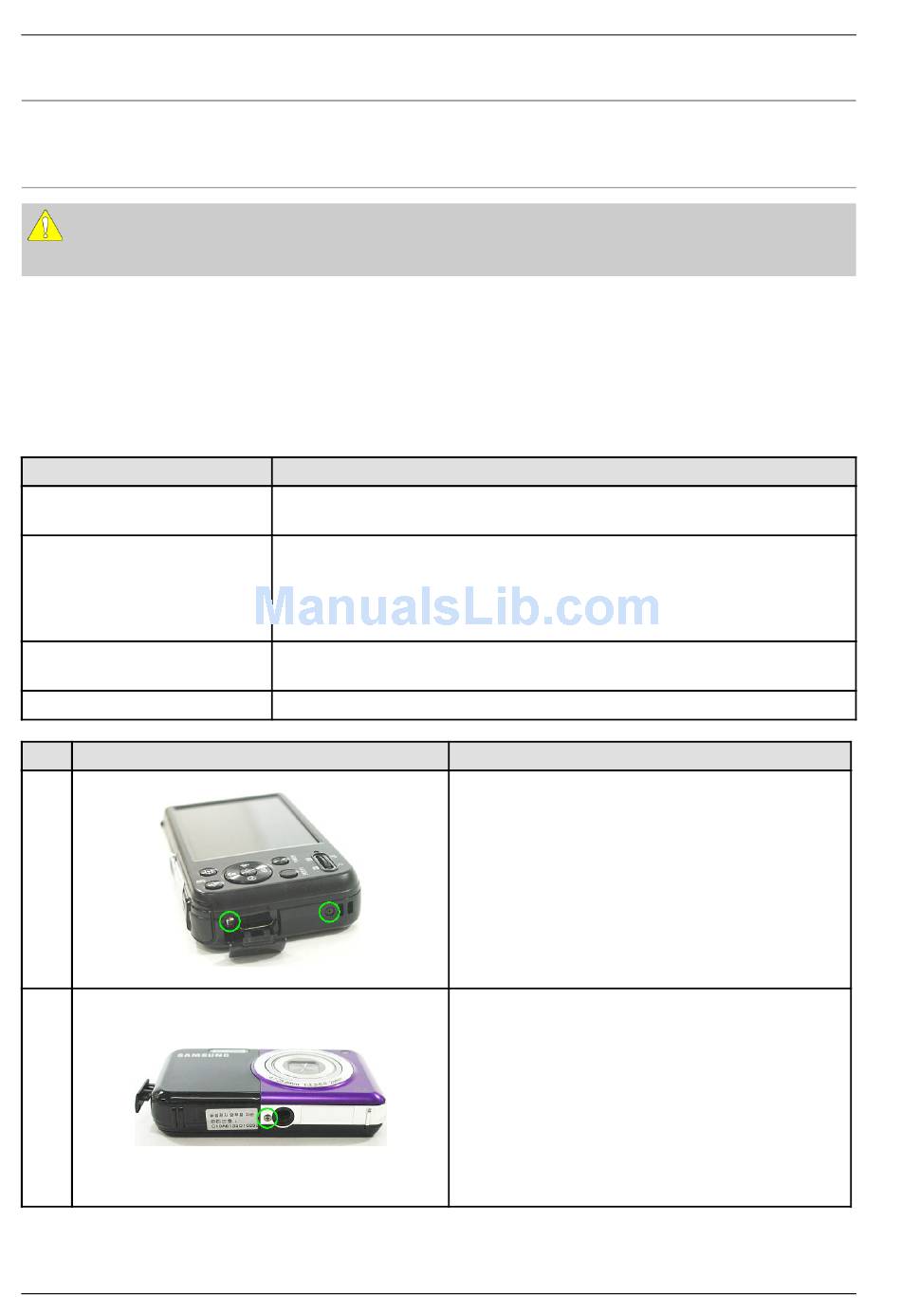

Disassembly image
Precaution
Disassembly description
Remove 2 Screws.
Remove 1 Screw.
