Paper Jams

This topic includes:
■
"Jam at Tray 1 (MPT)" on page 4-3
■
"Jam at Tray 2" on page 4-6
■
"Jam at Tray 3, 4, or 5" on page 4-8
■
"Jam at the Fuser" on page 4-11
■
■
■
■
For safety information, go to
Documentation CD-ROM.
Videos are available with instructions for clearing paper jams. Videos are located
on the User Documentation CD-ROM and at www.xerox.com/office/7750support.

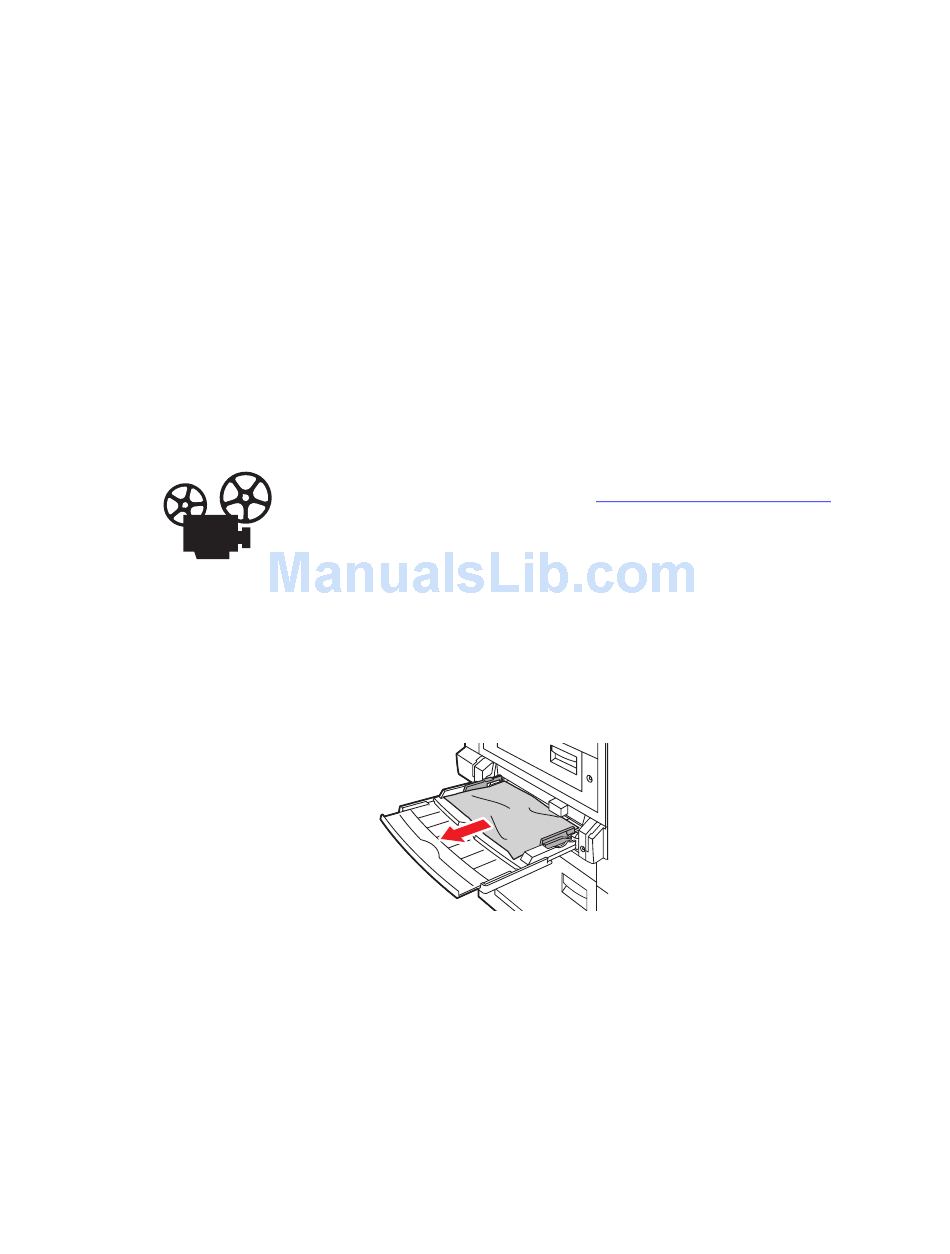

Jam at Tray 1 (MPT)
There is a jam at Tray 1 (MPT). Follow these steps to clear the jam.
1.
Remove paper from Tray 1 (MPT).
Copyright © 2004 Xerox Corporation. All Rights Reserved.
Reference/Troubleshooting/User Safety
4-3
Phaser® 7750 Color Laser Printer
on the User
7750-006

Advertisement

loading

Related Manuals for Xerox Phaser 7750

Summary of Contents for Xerox Phaser 7750

  • Page 1: Table Of Contents

    Documentation CD-ROM. Videos are available with instructions for clearing paper jams. Videos are located on the User Documentation CD-ROM and at www.xerox.com/office/7750support. Jam at Tray 1 (MPT) There is a jam at Tray 1 (MPT). Follow these steps to clear the jam.
  • Page 2 Paper Jams Remove the jammed paper. Confirm that all paper fragments are removed. 7750-007 If you did not find paper in step 2, push up the latch on the left side of the printer to open Left Door A. 7750-001 Warning Use caution.
  • Page 3 Paper Jams Close Left Door A. 7750-005 Replace the paper in the tray. 7750-008 Note Do not load paper above the fill line. For additional information, go to www.phaserSMART.com. Phaser® 7750 Color Laser Printer...

  • Page 4: Jam At Tray 2

    Paper Jams Jam at Tray 2 There is a jam at Tray 2. Follow these steps to clear the jam. Open Left Door B. 7750-009 Remove the jammed paper. Confirm that all paper fragments are removed. 7750-010 Close Left Door B. 7750-011 Phaser®...
  • Page 5 Paper Jams Pull out Tray 2. 7750-012 Remove jammed paper from the tray. 7750-013 Verify that the paper is loaded correctly in the tray and that the guides are pressed firmly against the paper. 7750-016 Phaser® 7750 Color Laser Printer...

  • Page 6: Jam At Tray 3, 4, Or 5

    Paper Jams Push Tray 2 completely to the back of the printer. 7750-014 For additional information, go to www.phaserSMART.com. Jam at Tray 3, 4, or 5 There is a jam at the tray specified on the front panel. Follow these steps to clear the jam. Open Left Door C.
  • Page 7 Paper Jams Close Left Door C. 7750-021 Pull out the tray specified on the front panel. 7750-022 Phaser® 7750 Color Laser Printer...
  • Page 8 Paper Jams Remove the crumpled paper from the tray. 7750-109 Note If you have a 2500-Sheet High-Capacity Feeder, lift the cover on the let side of the tray and remove jammed paper. 7750-136 Verify that the paper is loaded correctly in the tray and that the guides are pressed firmly against the paper.

  • Page 9: Jam At The Fuser

    Paper Jams Push the tray completely to the back of the printer. 7750-023 For additional information, go to www.phaserSMART.com. Jam at the Fuser There is a jam at the fuser. Follow these steps to clear the jam. Push up the latch on the left side of the printer to open Left Door A. 7750-001 Warning Use caution.
  • Page 10 Paper Jams Lift the green release latch located on the right side of the fuser. 7750-002 Remove the jammed paper. Confirm that all paper fragments are removed. 7750-003 Push down the green release latch. 7750-004 Phaser® 7750 Color Laser Printer 4-12...
  • Page 11 Paper Jams Close Left Door A. 7750-005 For additional information, go to www.phaserSMART.com. Phaser® 7750 Color Laser Printer 4-13...

  • Page 12: Jam At The Duplex Unit

    Paper Jams Jam at the Duplex Unit There is a jam at the duplex unit. Follow these steps to clear the jam. Open Tray 1 (MPT). 7750-041 Open Left Door D. 7750-024 Phaser® 7750 Color Laser Printer 4-14...
  • Page 13 Paper Jams Removed the jammed paper. Confirm that all paper fragments are removed. 7750-025 Close Left Door D. 7750-026 For additional information, go to www.phaserSMART.com. Phaser® 7750 Color Laser Printer 4-15...

  • Page 14: Jam At Finisher Entrance

    Paper Jams Jam at Finisher Entrance There is a jam at the finisher entrance. Follow these steps to clear the jam. Gently pull the finisher away from the printer. 7750-027 Remove the jammed paper. Confirm that all paper fragments are removed. 7750-028 Gently push the finisher back against the printer.

  • Page 15: Jam At Finisher-Bypass Door G

    Paper Jams Jam at Finisher-Bypass Door G There is a jam at the Finisher-Bypass Door G. Follow these steps to clear the jam. Lift the finisher-bypass door on top of the printer. 7750-030 Remove jammed paper. Confirm that all paper fragments are removed. 7750-031 Close the finisher-bypass door.

  • Page 16: Jam At Finisher Door H

    Paper Jams Jam at Finisher Door H There is a jam at Finisher Door H. Follow these steps to clear the jam. Remove paper from the finisher output tray. 7750-036 Push the button on top of the finisher to open Top Door H. 7750-033 Remove the jammed paper.
  • Page 17 Paper Jams Close Top Door H. 7750-035 For additional information, go to www.phaserSMART.com. Phaser® 7750 Color Laser Printer 4-19...
