The remote control system

Here you get an overview of the remote control system of your XciteRC Flybar 270L and its various features
and settings. Before the first flight, you should absolutely have read and understood all these functions and
EN
settings.
• Do make sure that the transmitter is turned off - POWER-LED off.
• Now open the battery compartment cover on the backside of the transmitter. Remove the srew and
slide the cover down (1). Insert four AA batteries into the battery compartment of the transmitter (2). Pay
attention to the correct polarity!
• Close the battery compartment cover, then turn on transmitter – push ON / OFF switch.
• When the POWER LED is flashing, move the left throttle lever to the top position, then back to the bottom.
The POWER LED will light constantly. This safety circuit prevents the rotor may start after turning on the
helicopter.
• The POWER LED must lit. Attention: if the POWER LED flashes or does not light at all, the model may
not started – crash hazard! Change transmitter batteries immediately.
• WARNING: check the POWER LED also during operation. If the POWER LED starts to blink, stop
operation, switch the model off and replace the transmitter batteries – crash hazard!
• ATTENTION: The maximum range of the remote control system is about 25 meters, do not fly
farther away under any circumstances! If the XciteRC Flybar 270L gets out of range, the fail-safe function
is activated and turns off the motor.

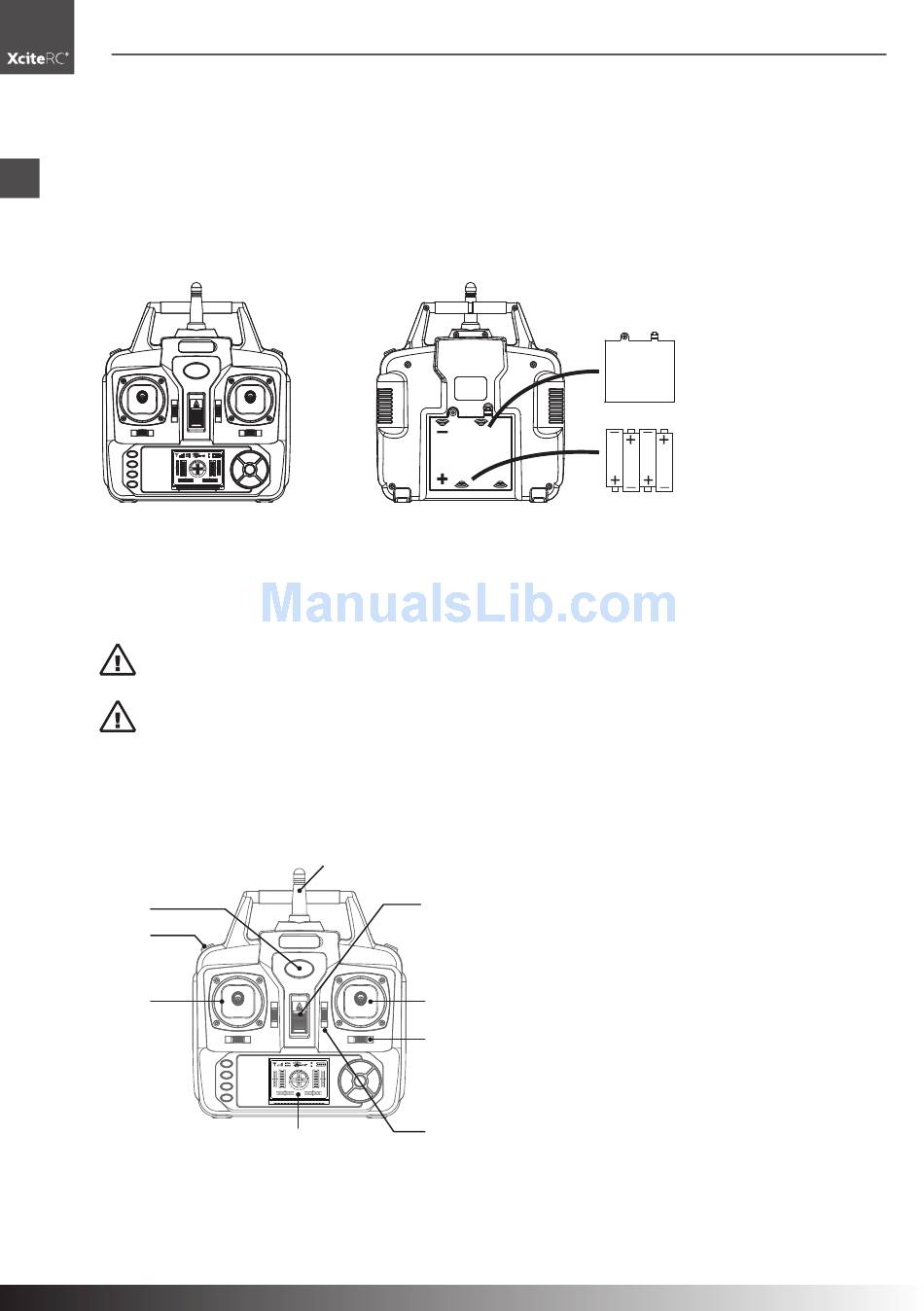

Transmitter

Power-LED
Speed switch
Throttle lever
16
Antenna
Power ON/OFF
Direction lever
Direction trim
9 11
4 5 6 7 8
3
Tail blade trim
LCD Display
The remote control system
Battery
cover
4x 1.5 V AA
batteries
