Quick Installation Instructions

Three quick steps to install and get maximum performance from the Polaris:
• Install the Universal Wall Fitting (UWF) with Quick Disconnect
• Adjust sweep hose to fit pool depth
• Adjust float hose to fit pool length

Install the Universal Wall Fitting

1
Installs in minutes on pools with a 1-1/2" female threaded return line.
1. Turn on the filtration pump and flush out the plumbing line. Turn pump off.
2. Polaris 165/Super Turtle Only — Use the return line nearest the center point of the
longest pool wall for the Polaris. If there are two, choose the return line closest to the pool
equipment. Place the eyeball regulator disks into the remaining return lines.
3. Remove the UWF from the Quick Disconnect and screw the UWF into the return
opening.
4. Turn the Quick Disconnect clockwise into the UWF and pull away to secure.

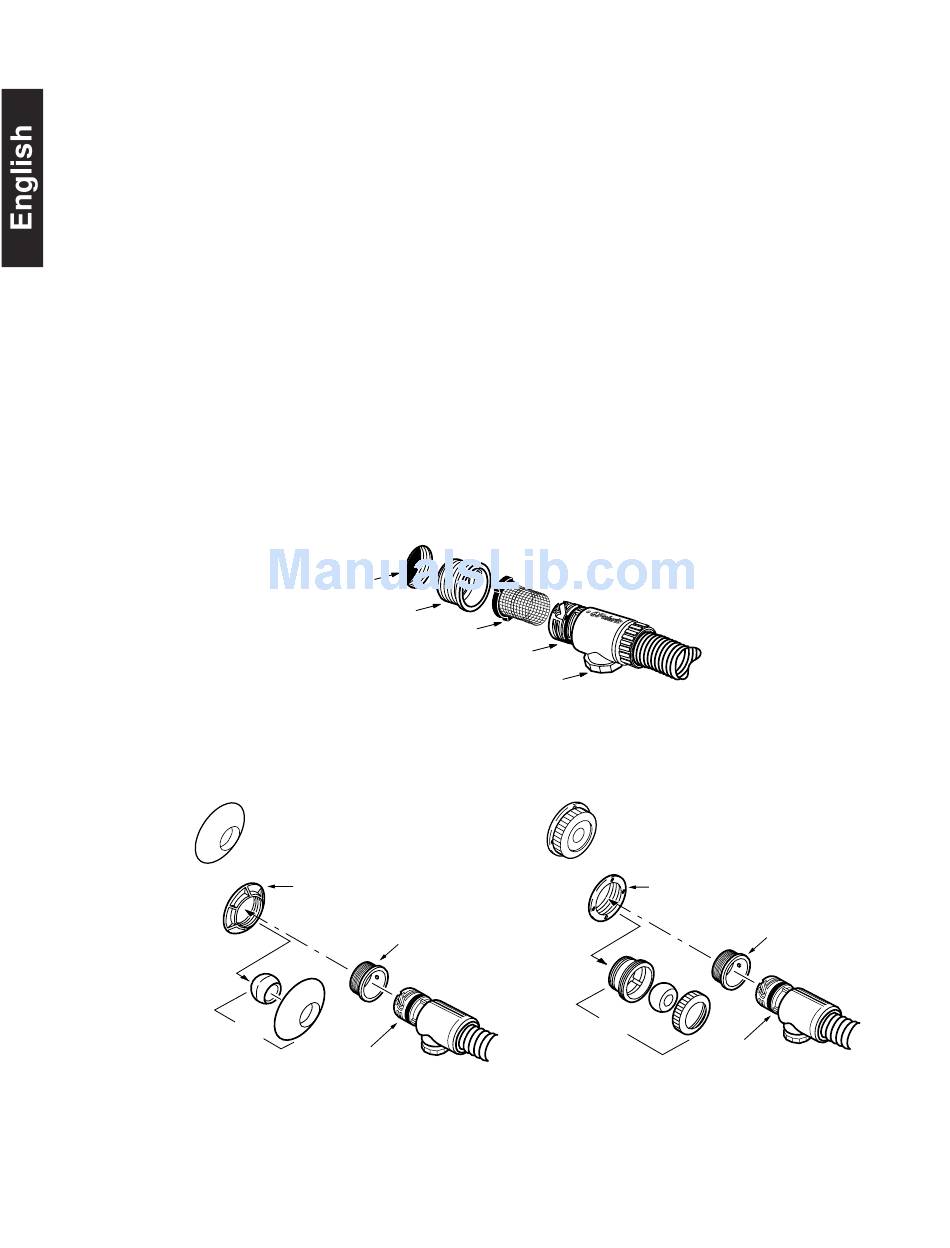

Universal Wall Fitting (UWF)
If the return line has either of the fittings diagrammed below, remove the parts as shown and
then install the UWF.
Remove
If the return line is a 1-1/4" or 2" eyeball fitting, order Polaris Adapter Kit (part #6-150-00)
from an authorized Polaris dealer. If the return line differs from all of these, contact Polaris for
assistance.
1-1/2" return line
Filter Screen
Quick Disconnect
Pressure Relief Valve
1-1/2 Return Line
UWF
Quick
Disconnect
www.polarispool.com
1-1/2 Return Line
UWF
Remove
Quick
Disconnect
