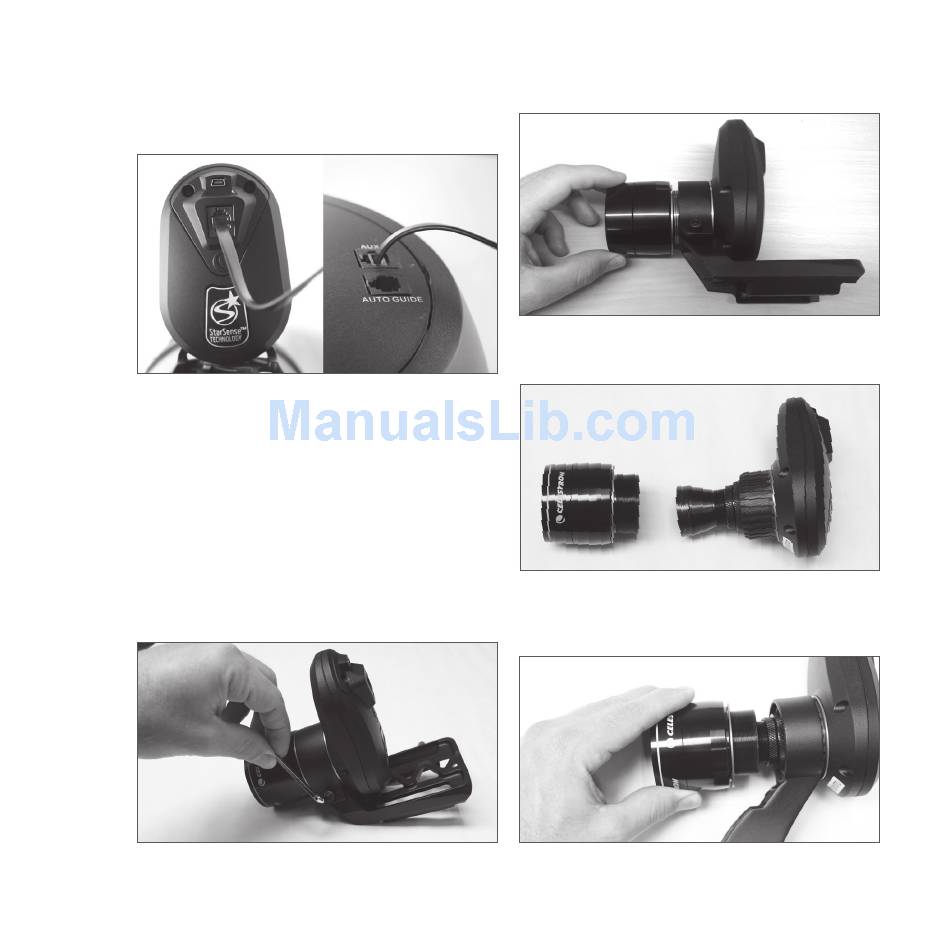

4. Plug the included auxiliary cable into the back
of the StarSense Camera on one end, and your
mount's auxiliary port on the other end .
Note: If your telescope does not have an auxiliary port,
the Auxiliary Port Splitter, (item #93919 available
from Celestron), is required . First, plug the splitter
into the auxiliary port . Then, plug the hand control
into one port and the cable into the other .

CHANGING BRACKETS

To change from the pre-installed Large Camera
Bracket to the Small Camera Bracket:
1. Slightly loosen the socket head screw using the
included 4mm Allen wrench . Do not remove the
screw entirely .
2. Remove the lens shroud by unthreading it .
3. Slide the bracket off the front of the camera . Be
careful not to lose the two orange rings .
4. Slide the new bracket onto the camera and screw
the lens shroud back on . One orange ring should
be in front of and behind the bracket as shown .
