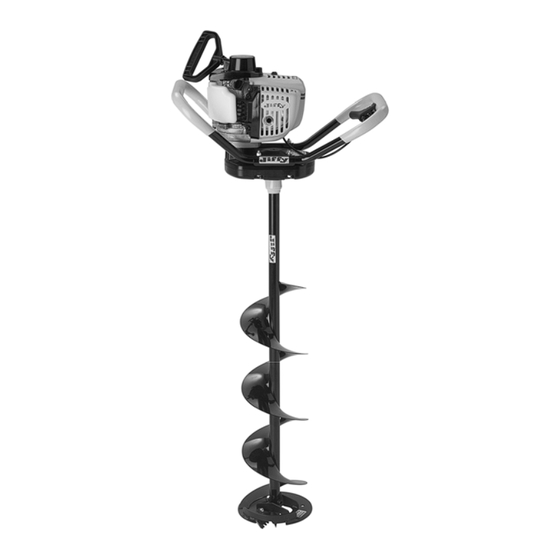

Jiffy 4G LITE Operating Manual/Parts Manual

OPERATING MANUAL/PARTS GUIDE
Thank You for purchasing a Jiffy Ice Drill. When properly maintained
and serviced, we are confident your drill will provide you with many
years of trustworthy performance. This manual contains operating
and safety instructions for the Jiffy Series Power Ice Drill. To receive
the greatest possible performance and satisfaction from your Jiffy
Power Ice Drill, and to reduce the risk of injury, it is important that
you read and understand the assembly, operating, maintenance, and
safety instructions before using your Jiffy Power Ice Drill. Contact
Feldmann Engineering if you do not understand any of the
instructions in this manual.
As with any power tool, safety precautions must be observed with
the Jiffy Power Ice Drill to reduce the risk of personal injury.
Careless or improper use may cause serious injury and/or damage
to your Jiffy Power Ice Drill.
INDEX
General Information ........................................ 1
Warranty......................................... ............. 1
Important Safety Precautions ............................ 2
Pre-Use Procedure ........................... ............. 2
Assembly of Drill............................... ............. 3
Oil & Fuel Recommendations............................ 3
Fueling............................................ ............. 3
Check Before Starting Your Drill........... ............. 3
Operating Instructions...................................... 3
Maintenance and Adjustments............. ............. 4
Service & Repair Information............... ............. 4
Diagram of Main Parts, Parts List......... ............. 5
Emissions Warranty......................................... 7
MANUFACTURER'S Two Year Limited Warranty
(30 days for Commercial and/or Rental Use)
FOR WARRANTY SERVICE - DO NOT RETURN
YOUR DRILL TO THE RETAILER YOU PURCHASED
IT FROM. GO TO www.jiffyonice.com TO LOCATE
YOUR LOCAL JIFFY SERVICE CENTER. IF YOU
LIVE IN CANADA, PLEASE CALL 1-800-861-9559
FOR WARRANTY SERVICE.
Feldmann Engineering & Manufacturing Co., Inc. warrants the Jiffy
Power Ice Drill to be made of first quality materials and workmanship
and will, at its option, repair or replace any drill part thereof found to
be defective in such materials and workmanship if returned to the
factory, prepaid within two years from the date of purchase by the
original purchaser. Inbound and outbound transportation charges
are paid by the purchaser.
replacement instructions, please go to www.jiffyonice.com to
find your nearest Jiffy Service center.
assumes no responsibility for damage caused by misuse, careless
handling, or where repairs were made or attempted by an
unauthorized person. For replacement
www.jiffyonice.com or to an Authorized Jiffy Dealer.
Dealer listing on the website.
PAGE
To obtain warranty service or
Feldmann Engineering
parts, go online
See Jiffy
Your Jiffy 4G Lite Drill uses a gasoline-fueled 4-stroke engine:
OIL MUST BE ADDED to engine before ice drill is used for the
first time and must be checked and changed regularly after that
(see page 3).
When storing the unit for long periods of time, it is
recommended to set the 4G Lite™ down with the spark plug
facing upward or in the upright (operating) position. Oil can
migrate over time, which may result in some oil leakage. Note:
Check the oil level before each use.
Manufactured by:
FELDMANN ENGINEERING & MANUFACTURING CO., INC.
520 Forest Avenue Sheboygan Falls WI 53085-2513
E-mail: admin@jiffyonice.com
to
Other products: TurfVent™ Lawn Aeration Eqt. - www.turfvent.com
BADGER™ Earth Augers - www.badgeraugers.com
-1-
Model #___________________
Purchased at________________
Date Purchased______________
Serial #____________________
Drill Size__________________
Register online at
www.jiffyonice.com
Website: www.jiffyonice.com
Form 4435 (07/16)
