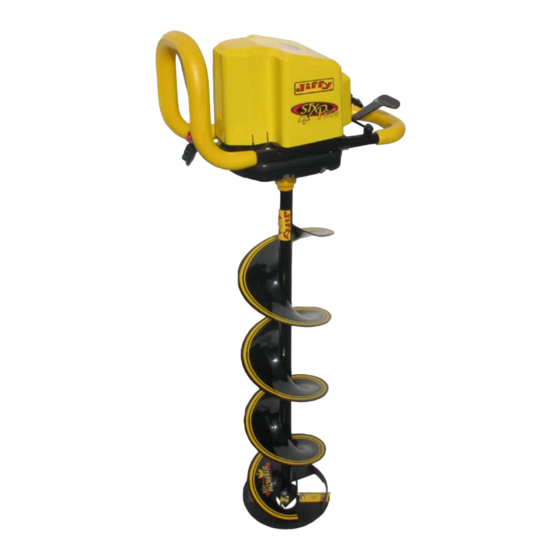

Jiffy LECTRIC STX PROII Operating Manual/Parts Manual

Thank You for purchasing a Jiffy Ice Drill. When properly maintained
and serviced, we are confident your drill will provide you with many
years of trustworthy performance. This manual contains operating and
safety instructions for the Jiffy Series Power Ice Drill. To receive the
greatest possible performance and satisfaction from your Jiffy Power
Ice Drill, and to reduce the risk of injury, it is important that you read
and understand the assembly, operating, maintenance, and safety
instructions before using your Jiffy Power Ice Drill. Contact Feldmann
Engineering if you do not understand any of the instructions in this
manual.
As with any power tool, safety precautions must be observed with the
Jiffy Power Ice Drill to reduce the risk of personal injury. Careless or
improper use may cause serious injury and/or damage to your Jiffy
Power Ice Drill.
INDEX
General Information.............
Warranty............................
General Safety Precautions...
Pre-Use Procedure..............
Assembly of Drill.................
Battery Information..............
Diagram of Main Parts, Parts List
MANUFACTURER'S
One Year Limited Warranty
(30 days for Commercial and/or Rental Use)
FOR WARRANTY SERVICE – DO NOT RETURN
YOUR DRILL TO THE RETAILER YOU PURCHASED
IT FROM. CALL THE JIFFY® CUSTOMER SERVICE
NUMBER AT 800-344-0712, MONDAY – FRIDAY
FROM 7:00 A.M. TO 4:30 P.M. CST, FOR A RETURN
AUTHORIZATION NUMBER AND INSTRUCTIONS.
Feldmann Engineering & Manufacturing Co., Inc. warrants the Jiffy
Power Ice Drill to be made of first quality materials and workmanship
and will, at its option, repair or replace any drill part thereof found to be
defective in such materials and workmanship if returned to the factory,
prepaid within one year from the date of purchase by the original
purchaser. To obtain warranty service or replacement instructions,
you must have prior approval before shipping package. Call our
customer service department at 800-344-0712 Monday – Friday
from 7:00 a.m. to 4:30 p.m. for a return authorization number.
Inbound and outbound transportation charges are paid by the
purchaser. Feldmann Engineering assumes no responsibility for
damage caused by misuse, careless handling, or where repairs were
made or attempted by an unauthorized person. For replacement parts,
call 800-344-0712, Monday – Friday from 7:00 a.m. to 4:30 p.m. CST,
or go online to www.jiffyonice.com
POWER ICE DRILL
OPERATING MANUAL/PARTS GUIDE
Page
1
1
2
2
3
3
4
Manufactured by:
FELDMANN ENGINEERING & MANUFACTURING CO., INC.
520 Forest Avenue
Sheboygan Falls WI 53085
Phone: 800-344-0712 Monday – Friday 7:00 a.m. to 4:30 p.m. CST
FAX: 920-467-6169
E-mail: admin@jiffyonice.com
Website: www.jiffyonice.com
Other products: TurfVent™ Lawn Aeration Eqt, BADGER™ Earth
Augers
-1-
Model #_________________
Purchased at______________
Date Purchased____________
Serial #__________________
Drill Size________________
Please complete Owner
Registration Card or register
online at www.jiffyonice.com
Form WM3920 (07/10)
