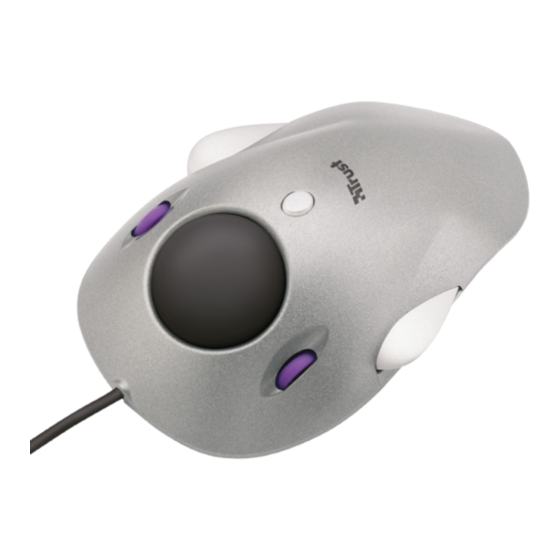

- Page 1 Trust Ami Track Dual Scroll TRUST AMI TRACK DUAL SCROLL Instruction Manual Version...
- Page 2 Trust Ami Track Dual Scroll Thank you Thank you very much for purchasing this product from the Trust range. We wish you hours of fun with it. Please read this manual carefully before using the product. Registration Register your purchase at our Internet site, www.trust.com, so that you can receive optimal guarantee and service support.
-
Page 3: Table Of Contents
Connecting the mouse ......................4 Use ..............................4 Installation ............................5 Trust Software Installer ......................5 Installing the mouse software ....................6 Trust Ami Track Dual Scroll......................7 'Buttons' tab ..........................7 'Motion' tab ..........................8 'Wheel' tab ..........................9 'Settings' tab........................... 10 6.4.1... -
Page 4: Introduction
Trust Ami Track Dual Scroll 1. Introduction This instruction manual is intended for users of the Trust Ami Track Dual Scroll. The mouse can be used to scroll in all your favourite applications and the buttons can be programmed for optimal use. No prior knowledge is necessary to install and use this product. -
Page 5: Safety
Trust Ami Track Dual Scroll 2. Safety General information Do not use this device in damp environments, such as bathrooms, damp basements, swimming pools, etc. Do not try to repair this device yourself. Under the following circumstances, remove the plug from your computer's PS/2 port and have the device repaired by qualified personnel: a) The wire or the PS/2 plug is damaged or worn. -
Page 6: Connecting
Turn your computer and all the peripheral devices off. Remove the old mouse from your computer. Connect the Ami Track Dual Scroll to the PS/2 port on your computer (see figure 1). Figure 1: Connecting the Track Ball to your computer's PS/2 port Next, turn your computer and all the peripheral devices back on. -
Page 7: Installation
Close all programs before installing the driver. Trust Software Installer Follow the points below to start the Trust Software Installer. Turn on your computer and start Windows. If you are using Windows NT or Windows 2000, log in as 'Administrator'. -
Page 8: Installing The Mouse Software
Installing the mouse software Start the Trust Software Installer (see chapter 5.1). Select ‘Install Trust Ami Track Dual Scroll’ (see figure 3). Select the language you wish to have the software installed in and click on 'Next'. A new window will appear. -
Page 9: Trust Ami Track Dual Scroll
'Buttons' tab The mouse buttons must be set using the installed software. This is carried out as follows: Double-click on the Trust icon in your taskbar (see figure 6) to see the mouse properties. Figure 7 will appear. Figure 6: Taskbar icon Figure 7: 'Buttons' tab Select the button you wish to program by clicking on the text next to the button number. -
Page 10: Motion' Tab
Trust Ami Track Dual Scroll 'Motion' tab There are 4 options in the 'Motion' tab (see figure 8). Sets the speed of the mouse cursor. Cursor Speed Sets the cursor so that it automatically jumps to the 'highlighted' button as soon as it SnapTo Button appears. -
Page 11: Wheel' Tab
Trust Ami Track Dual Scroll 'Wheel' tab Click on the 'Wheel' tab. Figure 9 will appear. The 'Wheel' functions can be set in this tab. Figure 9: 'Wheel' tab Explanation of the functions: • Enhanced Dual Wheel function mode All the functions of the MS IntelliMouse plus vertical and horizontal scrolling in Windows 95, 98, ME, 2000 and NT programs. -
Page 12: Settings' Tab
Figure 11: Add menu 3. Give your command list a name. We have called it 'Trust test' in the example. 4. Select an icon for the command list by clicking on 'Select icon', selecting an icon and then clicking on... - Page 13 Trust Ami Track Dual Scroll Figure 12: User options 5. Next, select an option from the list on the right-hand side. The following options can be selected. 6.4.2.1 Application/Document This is used to start a selected application or document. 1. Click once on ‘Application/Document’ and then click on ‘<Add New Command’. Figure 13 will appear.
- Page 14 Trust Ami Track Dual Scroll Click on ‘Show Maximized’ if you wish the folder to be opened in a maximized window. Leave this blank if you wish the folder to be opened in a normal window. Click on 'OK' to confirm your selection. The folder you have chosen will be shown in the list in figure 12.
- Page 15 Trust Ami Track Dual Scroll Click once on ‘Keyboard Sequence’ and then click on ‘<Add New Command’. Figure 17 will appear. Figure 17: Keyboard Sequence The Mode you wish to use must now be chosen. Select the 'Text' mode if only a piece of text must be placed on the screen without any commands.
- Page 16 Trust Ami Track Dual Scroll 6.4.2.7 ‘<Insert Separator’ button There is also an ‘<Insert Separator’ button in the window shown in figure 12. After you have made a command list, it is then possible to insert horizontal lines in the list. This can be used to separate different components from each other and to arrange the list more conveniently.
-
Page 17: Maintenance
Trust Ami Track Dual Scroll 7. Maintenance The ball and rollers of the Ami Track Dual Scroll will become dirty through use and may cause the mouse to function poorly. It is, therefore, necessary, to regularly clean the ball and the rollers. -
Page 18: Troubleshooting
Trust products. You will also have the chance of winning some spectacular prizes. If you still have problems after trying these solutions, please contact one of the Trust Customer Care Centers. The last page of this electronic instruction manual, as well as the back on the printed installation manual, contains more information. -
Page 19: Specifications
Trust Ami Track Dual Scroll 10. Specifications Number of buttons Wheel Horizontal and vertical wheel for scroll functions. Resolution 520 dpi Connection Suitable for connecting to the PS/2 port. -
Page 20: Trust Customer Care Centers
Trust Ami Track Dual Scroll 11. Trust Customer Care Centers Inhabitants of Great Britain and Ireland should contact: Great Britain Office Internet www.trust.com From: E-mail customercare.uk@trust.com 9:30 a.m. - +44-(0)1376-514633 5.00 p.m. Tel. +44-(0)1376-500000 Inhabitants of Italy should contact: Italian Office...
