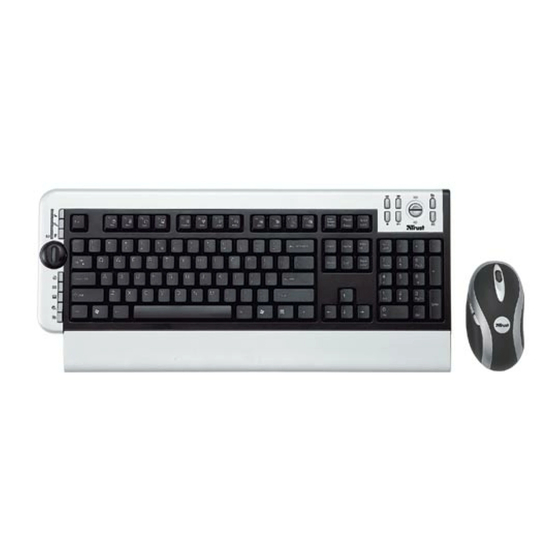

DS-3300X Wireless Optical Deskset
Product information
Mouse
F
G
D
A
B
E
C
I
Keyboard
K
L
M
N
O
P
Q
R
S
T
Y
W
Mouse
Keyboard
A: Right button
K: Standby button
B: Scroll wheel
L: Logon/off button
Button
M: Office function keys button
Indicator
N: Low battery LED
C: Left button
O: Scroll wheel
D: Browser backward button
P: Open default homepage
E: Browser forward button
Q: Open default email program
F: Connect button
R: Open My computer
G: Battery compartment
S: Search
T: Open control panel
I: Charging connection
U: Open media player
J: Motion sensor
V: Media play buttons
W: Battery compartment
X: Stand
Y: Palm rest
Z: Connect button
Cradle/Receiver
5
1
2
J
3
6
4
7
8
U
V
9
Cradle/Receiver
1: Receiving indicator
2: Mouse holder
3: Charging plates
4: Charging indicator
5: Connect button
6: Power connector
7: USB, PS/2 combo cable
8: PS2 mouse connector
9: USB/PS2 keyboard converter
10: USB connector
When using USB, do NOT
connect PS2 mouse
connector
1
UK
10
X
Z

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-3300X and is the answer not in the manual?

Questions and answers

Related Manuals for Trust DS-3300X

Summary of Contents for Trust DS-3300X

  • Page 1 DS-3300X Wireless Optical Deskset Product information Mouse Cradle/Receiver Keyboard Mouse Keyboard Cradle/Receiver A: Right button K: Standby button 1: Receiving indicator B: Scroll wheel L: Logon/off button 2: Mouse holder Button M: Office function keys button 3: Charging plates Indicator...

  • Page 2: Installation

    DS-3300X Wireless Optical Deskset Installation MOUSE: Insert NiMH RECHARGEABLE batteries Motion sensor (J) will be lit Connect power to cradle (6) 1) Put mouse in cradle 2) Indicator lit (4) 15-20 hrs charge batteries 15-20 hrs before 1 time use...
  • Page 3 DS-3300X Wireless Optical Deskset Computer off Connect PS2 plugs - Mouse- green - Keyboard- purple (with USB converter) Connect USB plug When using USB, do NOT connect PS2 mouse connector...
  • Page 4 DS-3300X Wireless Optical Deskset 1) Computer on 2) Status LED (1) lit Windows 98SE needs Windows CD-ROM at startup when using USB connection 1) Press connect button (5) 2) Status LED (1) flashing 1) Press connect button (F) 2) Status LED (1) on cradle stops flashing...
  • Page 5 DS-3300X Wireless Optical Deskset 1) Press connect button (Z) 2) Status LED (1) on cradle stops flashing Use same channel as mouse Place Trust CD in CD-ROM drive Install software...
  • Page 6 DS-3300X Wireless Optical Deskset … Finish -> System restarts Browse installer CD-ROM, for manual of using the software Reminders Less wireless performance Metal objects close to or between the device (for example, a metal or mirror surface) Flatness or color or types of surface (for example, red color or soft rough surface)
  • Page 7 DS-3300X Wireless Optical Deskset General usage Num Lock, Scroll Lock and Cap Lock are displayed on taskbar after the software is installed The desired function is not available when it is not in the options list or configuration program Scroll wheel on keyboard has same functionality as mouse scroll wheel Toggle Office functionality from functions keys F1 –...
  • Page 8 Warranty & copyright • This product has a two-year manufacturer's warranty which is effective from the date of purchase. For more information see www.trust.com/warranty • Reproduction of this manual or any part of it is prohibited without permission from Trust International B.V.
