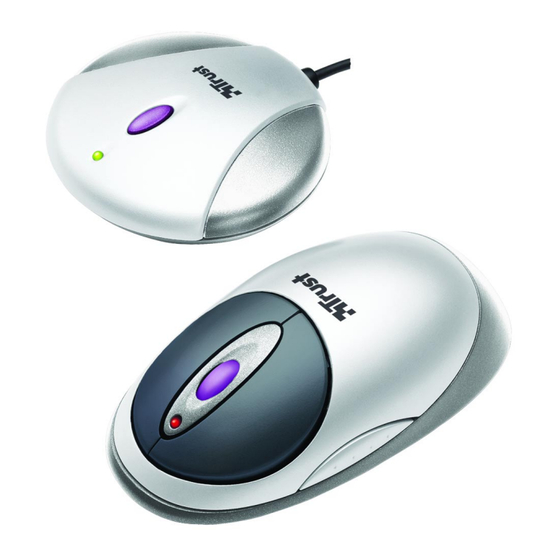

TRUST AMI MOUSE 250SX WIRELESS OPTICAL
1.

Introduction

This instruction manual is for users of the 'TRUST AMI MOUSE 250SX WIRELESS
OPTICAL'. This mouse allows you to work optically without the use of wires. The
Mouse has two channels and 5 buttons. Empty batteries no longer have to be
replaced. Simply recharge the NiMH batteries by connecting the mouse to the
receiver.
2.

Safety

Carefully read the following instructions before use:
1.
Do not use this device in a damp environment, such as a bathroom, damp
basement, swimming pool, etc;
2.
Do not repair this device yourself;
3.
Position the device so that the cables cannot be damaged;
0470
4.
This device operates at a frequency of 27.045 ~ 27.095 MHz. It has been
approved according to the European R&TTE guidelines and meets the
essential requirements and other relevant conditions of Directive 1999/5/EC.
This device may be used in all EU countries, NO, CH, PL. The Declaration of
Conformity (DoC) is available at
5.
There may be limitations for the use of this device outside of the EU. If this
device is used outside of the EU, check whether this device meets local
regulations. Frequency: 27.045 ~ 27.095 MHz, Bandwidth:
+/- 4,5 KHz, Capacity: 0,07 mW.
3.

Installation

3.1

Inserting the batteries

Insert the batteries into the mouse as follows:
1.
Open the battery cover on the bottom of the mouse.
2.
Insert the batteries into the battery compartment "A" (see figure 1). The
diagram inside the battery compartment shows how the batteries should be
inserted.
3.
Close the battery cover.
Note:
Inserting the batteries incorrectly may cause damage.
www.trust.com/12630/ce
U K
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMI 250SX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Trust AMI 250SX

  • Page 1 TRUST AMI MOUSE 250SX WIRELESS OPTICAL Introduction This instruction manual is for users of the ‘TRUST AMI MOUSE 250SX WIRELESS OPTICAL‘. This mouse allows you to work optically without the use of wires. The mouse has two channels and 5 buttons. Empty batteries no longer have to be replaced.
  • Page 2 2 in the opposite direction. The same applies, but then in the other direction, if you wish to use channel 2. Software installation Insert the CD-ROM into your CD-ROM drive. The Trust Software Installer will start automatically. If it does not start automatically, carry out the following: Select 'Run' from the Start menu.
  • Page 3 See the instruction manual provided with your motherboard for more information. Software Double-click on the Trust icon in the system tray (see figure B). Fig. B: The mouse properties window will appear (see figure 4).
  • Page 4 TRUST AMI MOUSE 250SX WIRELESS OPTICAL • The mouse has now been programmed. Troubleshooting Problem Cause Possible solution The optical module The batteries have been Place the batteries into installed incorrectly. the battery compartment does not light up as indicated.
  • Page 5 You will also have the chance of winning some spectacular prizes. If you still have problems after trying these solutions, please contact one of the Trust Customer Care Centers. You can find more information at the back of this instruction manual.
