Installation Instructions
®
Rolux Vertical Discharge Vent System
1

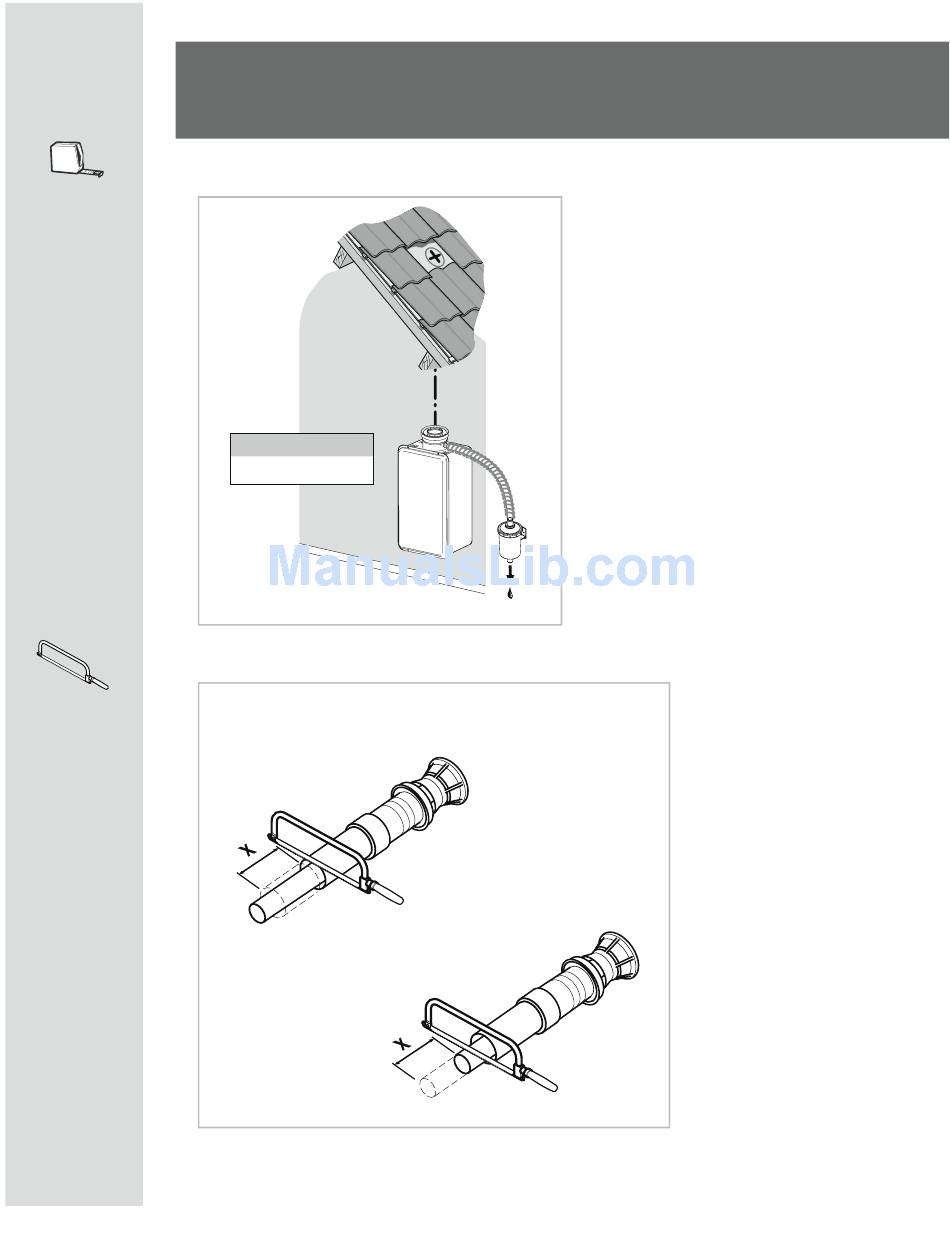

Identify the vent location

NOTE
Cover the top of the heater
to prevent debris from entering.
2
A
8
Determine the location where the roof dis-
charge terminal will be installed. Taking into
account the angle of the roof, cut the hole
with a dimension that allows the
vertical discharge roof terminal to be
installed
- 6"x6" 150x150 mm hole for flat roof,
- 9"x6" 225x150 mm hole for 12/12 pitch (45°)
- 12"x6" 300x150 mm hole for 16/12 pitch
(55°).
B

Cut to fit

The terminal can be
shortened by cutting
both the inside and
outside pipes with
the same length X.
