MadgeTech RFC1000-CE Product User Manual
Hide thumbs
Also See for RFC1000-CE:
- User manual (4 pages) ,
- Product user manual (9 pages) ,
- Product user manual (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for MadgeTech RFC1000-CE
Summary of Contents for MadgeTech RFC1000-CE
- Page 1 RFC1000-CE Cloud Relay MadgeTech Cloud Services Data Logger Hub Product User Guide...
-
Page 2: Table Of Contents
Getting Started ............3 Setting Up the RFC1000-CE Cloud Relay ....4 Mounting Instructions ..........5 Channel Programming ......... 6-7 Troubleshooting ............8 Compliance Information .......... 9 General Specifications ........... 10 www.madgetech.com. To view the full MadgeTech product line, visit our website at... -
Page 3: Product Overview

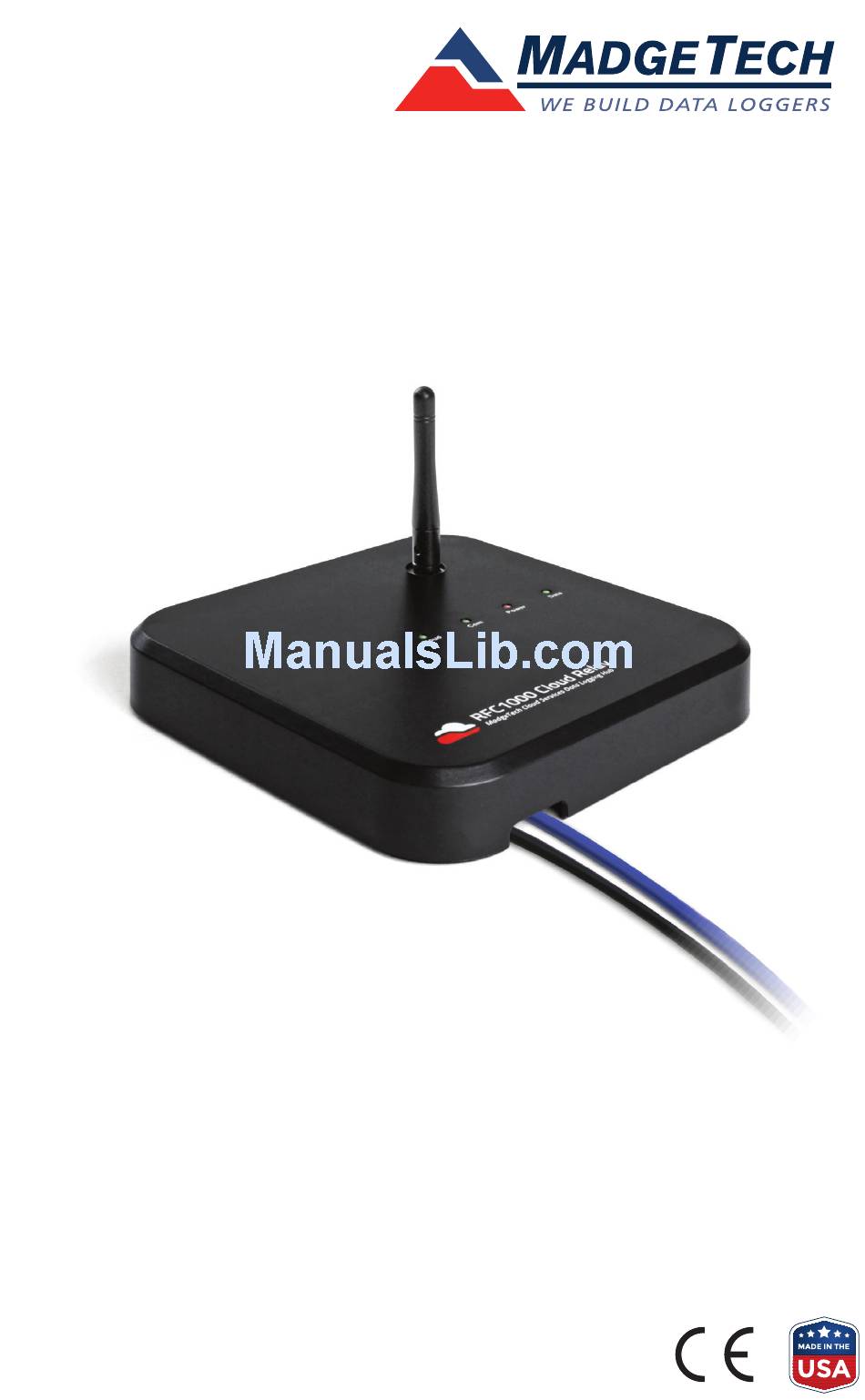

RFC1000-CE Cloud Relay Product Overview The RFC1000-CE Cloud Relay is a data logging hub that connects via Ethernet to your internet service and transmits data directly to the MadgeTech Cloud Services platform. This allows users to remotely monitor and manage groups of data loggers throughout a large facility or multiple locations without the need of a central PC. -
Page 4: Setting Up The Rfc1000-Ce Cloud Relay
Product User Guide Setting Up the RFC1000-CE Cloud Relay within MadgeTech Cloud Services A MadgeTech Cloud Services account must be active to use the RFC1000-CE Cloud Relay. Go to cloud.madgetech.com to create an account. Claiming an RFC1000-CE Cloud Relay Log into the MadgeTech Cloud Services account by going to cloud.madgetech.com. -
Page 5: Mounting Instructions
RFC1000-CE Cloud Relay Mounting Instructions The RFC1000-CE Cloud Relay has a pivoting external antenna to accommodate either tabletop or wall mounted orientation. For best wireless performance, the RFC1000-CE Cloud Relay, RFC1000-CE wireless transceivers and the MadgeTech data loggers should be mounted in the same orientation. -
Page 6: Channel Programming
Unplug the RFC1000-CE Cloud Relay from the electrical outlet and Ethernet cable. Use a Phillips head screwdriver to unscrew the back of the RFC1000-CE Cloud Relay enclosure. With the inside of the RFC1000-CE Cloud Relay exposed, locate the back of the wireless transceiver (diagram 1a). - Page 7 RFC1000-CE Cloud Relay Channel Dip Switch Orientation The images below show the orientations available of the switches for each channel. CH 11 CH 12 CH 13 CH 14 CH 15 CH 16 CH 17 CH 18 CH 19 CH 20...
-
Page 8: Troubleshooting
MadgeTech Cloud server. Cloud LED » Green (Solid): The RFC1000-CE Cloud Relay is communicating to the MadgeTech Cloud server and is claimed by an account. Fully functional. » Green (Blinking): The RFC1000-CE Cloud Relay is communicating to the MadgeTech Cloud server, but the RFC1000-CE Cloud Relay is unclaimed by an account. -
Page 9: Compliance Information
équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. Countries approved for use, purchase and distribution of the RFC1000-CE Cloud Relay: Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Columbia, Croatia, Cyprus, Czech... -
Page 10: General Specifications
General Specifications Interface Type Ethernet; Wireless (to data logger) RFC1000-CE Cloud Relay: -20 °C to +85 °C (-4 °F to +185 °F), 0 %RH to 95 %RH non-condensing Operating Environment Power Supply: 0 °C to +40 °C (+32 °F to +104 °F), 20 %RH to 85 %RH... - Page 11 Contact our friendly Customer Support Team at (603) 456-2011 or support@madgetech.com. Software Information & Support: » Download the MadgeTech Cloud Services Manual at: www.madgetech.com/mt-cloud-manual.pdf MadgeTech, Inc • 6 Warner Road • Warner, NH 03278 Phone: (603) 456-2011 • Fax: (603) 456-2012 • www.madgetech.com DOC 1325036-00 REV 1 2016.04.11...
