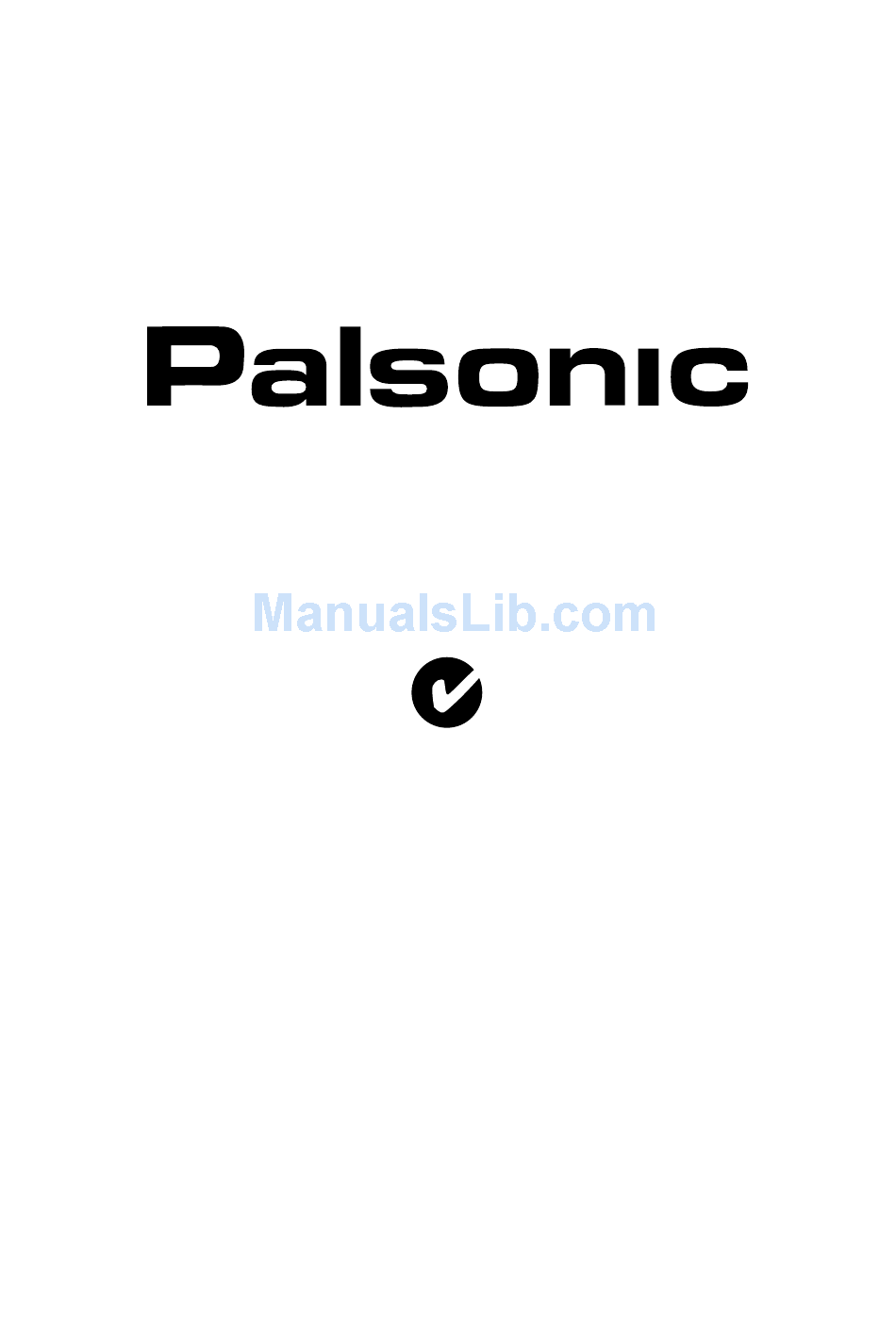

- Page 1 OWNER'S MANUAL 93CM CORDLESS REMOTE LCD TV/MONITOR MODEL: TFTV930 N111 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888...
-
Page 2: Table Of Contents
Table of Contents Important Safety Precautions ... Remote Control ... Identification of Controls ... Connections ... Basic Operation ... Tuning In ... Select the Channels ... Setting Picture ... Setting Sound ... Setting Sleep Timer ... Adjusting the OSD ... Setting System In TV Mode ... -
Page 3: Important Safety Precautions
Important Safety Precautions Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. - Page 4 Important Safety Precautions (continued) 12. Stand --- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.
- Page 5 Important Safety Precautions 22. Power source --- This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
-
Page 6: Remote Control
Remote Control POWER Turn the unit on or off Auto To adjust picture automatically in VGA mode To activate picture-by-picture P.S. To select signal source for PIP frame To activate picture-in-picture To adjust PIP frame position Menu To access the Menu main page or exit menu operation CH+/- Used to switch channels;... - Page 7 Remote Control Remote Control The SRS symbol is trademark of SRS Labs, Inc. SRS technology is incorporated under license from SRS Labs, Inc. (continued) Source To access source select menu S-SYS Sound system select C-SYS Colour system select S. Mode Sound mode select P.
- Page 8 Using the Remote Control Use the remote control by pointing it towards the remote sensor window of the set. Objects between the remote control and sensor window may prevent proper operation. Note: the illustration is for your reference only, the remote sensor may locate differently with different model.
-
Page 9: Identification Of Controls
Identification of Controls Main Unit Front view Power Indicator A blue indicator lights when the power is on and a red indicator lights when in the standby mode. Remote Sensor 1. SOURCE To access signal source select menu. 2. Menu Press this button to access the Menu main page. - Page 10 Main Unit Back view Bottom view AUDIO AUDIO 1. AV outputs (Video, Audio L/mono, R) Connect to the VCR input jacks to record programs. 2. S-Video input/AV1 inputs / AV2 inputs (Video, Audio L/mono, R) Receive a S-Video signal from external source such as VCR or DVD player. Receive video/audio signals from external sources such as VCR or DVD player.
-
Page 11: Connections
Connections Antenna Connection Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The exact type and position of the aerial will depend upon your particular area. Note: It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave conditions. - Page 12 Cautions Before Connecting Carefully check the terminals for position and type before making any connections. The illustration of the external equipment may be different depending on your model. Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their terminals.
- Page 13 Connections (continued) Connect a Camcorder AV OUT Yellow (VIDEO) White (AUDIO L) Red (AUDIO R) How to connect: Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and camcorder. To playback Camcorder 1. Turn on your LCD TV , press Source button on the remote control. 2.
- Page 14 Connect a DVD Player (or Set-Top Box) Video Audio cable cable How to connect a DVD Player (or Set-Top Box) using Component Video Connections: Connect the Video cable between the Y, Pb, Pr input jacks on the unit and Pb, Pr output jacks on the DVD player (or Set-Top Box).
- Page 15 Connections (continued) Connect a DTV receiver How to connect: 1. Connect the cable or antenna to the antenna input jack on the DTV receiver. 2. Connect the DVI cable between the DVI input interface on the unit and DVI output interface on the DTV receiver. 3.
- Page 16 Connect a PC Audio cable cable How to connect: Connect a VGA cable between the VGA jack on the PC and the D-Sub VGA input jack on the unit. Connect an Audio cable between the AUDIO output on the PC and AUDIO input jack on the unit. To Watch the PC screen 1.
- Page 17 Connections (continued) To connect AV output terminal AUDIO AUDIO Yellow (VIDEO) White (AUDIO L) Red (AUDIO R) How to connect: Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR. Or connect the Audio cable between the Audio (L/R) jacks on the unit and Audio amplifier. How to record program 1.
-
Page 18: Basic Operation
Turning the Unit On and Off Turning On Insert the power cord into the wall outlet. Press the Power Switch on the TV set, the set is in standby mode. Press the Power button on the remote control. The unit will be turned on and you will be ready to use it's features. Turning Off With the power on, press the Power If you want to cut off the power completely, press the Power Switch on the TV set. -
Page 19: Tuning In
Tuning In Auto Search Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select CH item. Press Enter to access the submenu. Press CH- repeatedly to highlight Auto Search item. Press Enter to store channels in memory automatically. The unit will begin memorising all the available channels. - Page 20 AFC (Auto Frequency Control) Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select CH item. Press Enter to access the submenu. Press CH+ or CH- repeatedly to select AFC item. Press Enter to toggle On or Off. When the AFC is set to On, the unit will automatically tune the program frequency to provide the best picture and sound.
-
Page 21: Channel Swap
Tuning In (continued) Add/Erase Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select CH item. Press Enter to access the submenu. Press CH- to highlight Channel No item. Press VOL+ or VOL- to select the program number you want to add or erase. -
Page 22: Colour System
Sound System Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select CH item. Press Enter to access the submenu. Press CH+ or CH- repeatedly to select Sound System item. Press Enter to select a proper sound system. Press Menu to exit. -
Page 23: Select The Channels
Selecting the Channels Direct Accessing Channels Press the number buttons to go directly to a channel. To select a one-digit channel: press the 0-9 number buttons directly. To select a two-digit channel: press -/-- and display -- , then input the number. Note: Be sure to enter the channel within 3 seconds. -
Page 24: Customising The Picture
Customising the Picture Press Menu to display the menu main page. The picture menu page will be displayed automatically. Press Enter to access the Picture submenu. Press CH+ or CH- to select the item you wish to change. Press VOL+ or VOL- to adjust the value of the item. Press Menu to exit. -
Page 25: Sound Setting
Sound Setting Customising the Sound Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select Sound item. Press Enter to access the submenu. Press CH+ or CH- repeatedly to select the option items you want to adjust. Press VOL+ or VOL- to adjust the value or Enter to toggle settings. -
Page 26: Setting Srs Effect
Setting SRS Effect Use the SRS button to quickly turn on or off the SRS effect. SRS (Sound Retrieval System ) is an audio enhancement technology that restores the ® spatial cues that are present in a live listening environment and processes it to provide a natural 3D sound field. -
Page 27: Adjusting The Osd
Adjusting the OSD Selecting a Menu Language Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select OSD item. Press Enter to access the submenu. The Language item will be highlighted automatically. Press Enter to toggle between English and Press Menu to exit. -
Page 28: Setting System In Tv Mode
Adjusting Screen Aspect Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select Setup item. Press Enter to access the submenu. The Screen item will be highlighted automatically. Press Enter repeatedly to select a desired aspect ratio. You can select the image aspect ratio between 4:3, Panorama, Zoom and 16:9. -
Page 29: Setting System In Ypbpr Mode
Setting System In YPbPr Mode Adjusting Phase Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select Setup item. Press Enter to access the submenu. The Phase item will be highlighted automatically. Press VOL+ or VOL- repeatedly to adjust the value. Adjusting Screen Aspect Press Menu to display the menu main page. -
Page 30: Displaying Resolution Information
Press Menu to display the menu main page. The picture menu page will be displayed automatically. Press Enter to access the Picture submenu. Press CH + or CH- to select the item you wish to change. Press VOL+ or VOL- to adjust the value of the item. Press Menu to exit. -
Page 31: Setting System In Vga Mode
Setting System In VGA Mode Operating System Menu Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select Setup item. Press Enter to access the submenu. Press CH+ or CH- to select menu item. Press VOL+ or VOL- to adjust the value of the item. Item H Position Adjusting the horizontal position of... -
Page 32: Pip Operations
The PIP function is available only when the main frame is in VGA/DVI mode and the aspect ratio is in 16:9 and the vertical frequency is 60 Hz. Viewing the PIP Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select PIP item. Press Enter to access the submenu. -
Page 33: Changing The Position Of The Pip Frame
PIP Operations (continued) Changing the Position of the PIP Frame Press Menu to display the menu main page. Press CH+ or CH- repeatedly to select PIP item. Press Enter to access the submenu. Press CH+ or CH- repeatedly to select H Position or V Position item. Press VOL+ or VOL- to adjust the PIP frame position. -
Page 34: Troubleshooting
Before calling for repair service, check the following items for possible remedies to an encountered symptoms. Symptoms "Ghost" or double images No power No picture Good picture but no sound Good sound but poor colour Poor picture Horizontal dotted line Television not responding to remote control Snowy picture and noise... -
Page 35: Specifications
Specifications TV Unit Dimension (WxHxD) (mm) TV Unit Dimension (WxHxD) (mm) with Stand Power Supply Power Consumption Weight (kg) TV unit with Stand Resolution Pixel Pitch Maximum Colours Brightness Viewing Angle Contrast Standby Mode Power Consumption Colour System Speaker Output Terminals Video In Video Out... - Page 36 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-L37K73-02 Ver. 1.0...
