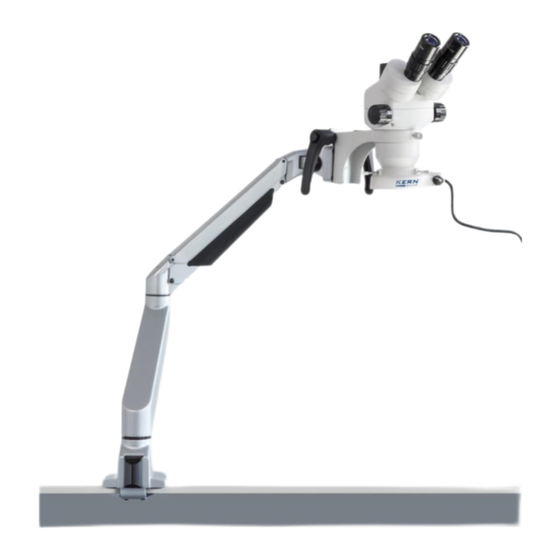

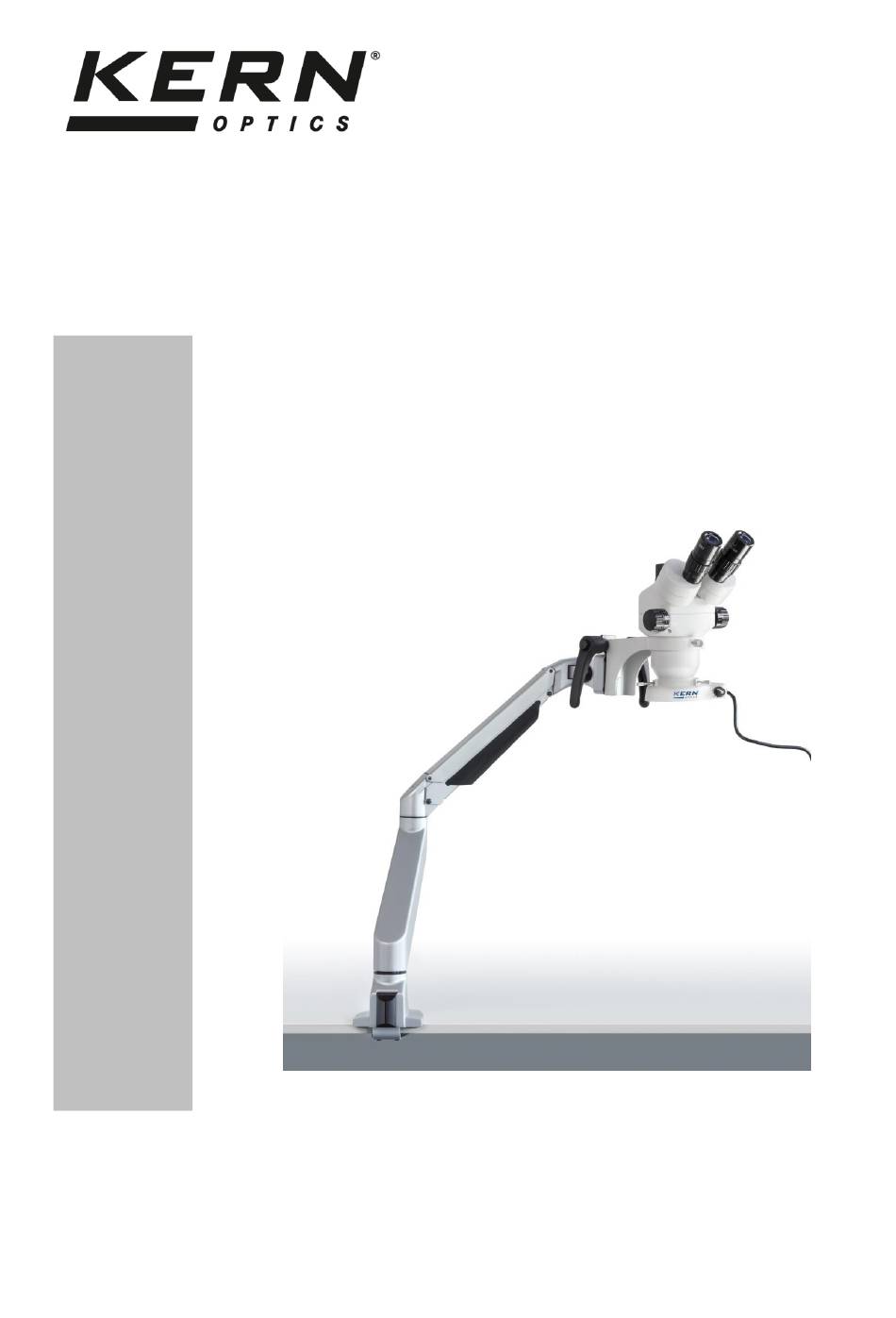

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-mail: info@kern-sohn.com Internet: www.kern-sohn.com User instructions Stereo microscope set KERN OZM-98 OZM 982(UK), OZM 983(UK) Version 1.0 01/2016 OZM-98-BA-e-1610...
-
Page 3: Table Of Contents
KERN OZM-98 Version 1.0 01/2016 User instructions Stereo microscope set Table of contents Before use ..................3 General notes ..........................3 Notes on the electrical system ....................3 Storage ............................4 Maintenance and cleaning ....................... 5 Nomenclature ................6 Basic data ..................8 Assembly .................. -
Page 4: Before Use
If you are using an extension cable, then the mains cable you use must be earthed. When carrying out any procedures whereby you come into contact with the electrical system of the device, such as, for example, changing the bulb or fuse, only carry out these procedures when the power is disconnected. OZM-98-BA-e-1610... -
Page 5: Storage
In most cases, if dust and dirt gets inside the optical unit of a microscope this can cause irreversible errors or damage. The best way to store accessories which consist of optical elements, such as, for example, eyepieces and objectives, is in a dry box with desiccant. OZM-98-BA-e-1610... -
Page 6: Maintenance And Cleaning
Special cleaner for optical lenses Special optical cleaning cloths Bellows Brush When handled correctly and checked regularly, the microscope should give many years of efficient service. Should repairs still be necessary, please contact your KERN dealer or our Technical Department. OZM-98-BA-e-1610... -
Page 7: Nomenclature
2 Nomenclature Using the OZM 983 as an example (Trinocular) OZM-98-BA-e-1610... - Page 8 OZM-98-BA-e-1610...
-
Page 9: Basic Data
Optical system Greenough Dimmable lighting Magnification ratio 6,4:1 Tube angled at 45° 52 – 76 mm Interpupillary distance Dioptre adjustment On both sides Eyepiece HSWF 10x / Ø 23mm Ø 32,8 – 5,1 Field of view (mm) Standard configuration OZM-98-BA-e-1610... -
Page 10: Assembly
4 Assembly OZM-98-BA-e-1610... - Page 11 OZM-98-BA-e-1610...
- Page 12 OZM-98-BA-e-1610...
- Page 13 OZM-98-BA-e-1610...
- Page 14 OZM-98-BA-e-1610...
- Page 15 You can fit a C-mount adapter to the appropriate connection point on the top of the microscope head for trinocular devices (OZM 983). This enables you to fit and use digital cameras (remove protective cap first) (see section 5.8). OZM-98-BA-e-1610...
-
Page 16: Operation And Functionality
As soon as the lefthand and righthand visual fields exactly overlap each other, this is the correct interpupillary distance. 5.3 Adjusting the magnification As the KERN OZM-9 series are stereo zoom microscopes, then you adjust the magnification using the two zoom adjustment wheels on the lefthand and righthand side of the microscope head. -
Page 17: Dioptre Adjustment And Focussing
11. Then look through the left eyepiece with the left eye and use the lefthand dioptre adjustment ring to also adjust the optimum focus of the object. 12. In this way, the object being observed will be in focus at any zoom setting. OZM-98-BA-e-1610... -
Page 18: Adjusting The Stand
The pneumatic spring ensures the height adjustment of the upper part of the microscope stand. For varying the spring force, the adjustment screw on the middle joint of the stand must be used. Before performing this, the upper part needs to be kept in a completely depressed position (see lower picture). OZM-98-BA-e-1610... -
Page 19: Using Eye Cups / High Eye Point Eyepieces
In order to maintain hygiene, we would therefore recommend that you clean the eye cups regularly (e.g. with a damp cloth). Eye cups High Eye Point eyepiece (identified by the glasses symbol) OZM-98-BA-e-1610... -
Page 20: Brightness Adjustment
5.7 Brightness adjustment There is only the usage of incident illumination available when working with KERN stereo microscope sets. Therefor a LED ring light (see picture below) is required, that can be mounted to the bottom of the microscope head (see chapter 4 Assembly). -
Page 21: Fitting And Adjusting A Camera
This means that when the device is used in trinocular mode, you will see one image in the left eyepiece and one on the reflex camera or monitor of the microscope camera. This means that the 3D effect is lost. OZM-98-BA-e-1610... - Page 22 (0,3x, 0,5x) are used. In order to be able to bring both images into focus, the focus can be adjusted by those adapters. OZM-98-BA-e-1610...
-
Page 23: Using Additional Accessories
You can fit these objectives by simply screwing them onto the bottom side of the microscope head. When you are doing this, you must avoid touching the objective lenses with your fingers or leaving any dust between the standard objective and the auxiliary objective. OZM-98-BA-e-1610... -
Page 24: Optical Data
The torque of the focus wheels is set too high The microscope head slips down The torque of the focus wheels is set too low while you are viewing the object Eyes get tired easily The dioptre adjustment is not correct The brightness adjustment is not correct OZM-98-BA-e-1610... -
Page 25: Service
The device may only be opened by trained service engineers who have been authorised by KERN. 9 Disposal The packaging is made of environmentally-friendly materials, which you can dispose of at your local recycling centre.
