Sound Pressure Spectrum - Daikin VRV III Technical Data Manual

10 Sound data

10 - 2 Sound Pressure Spectrum

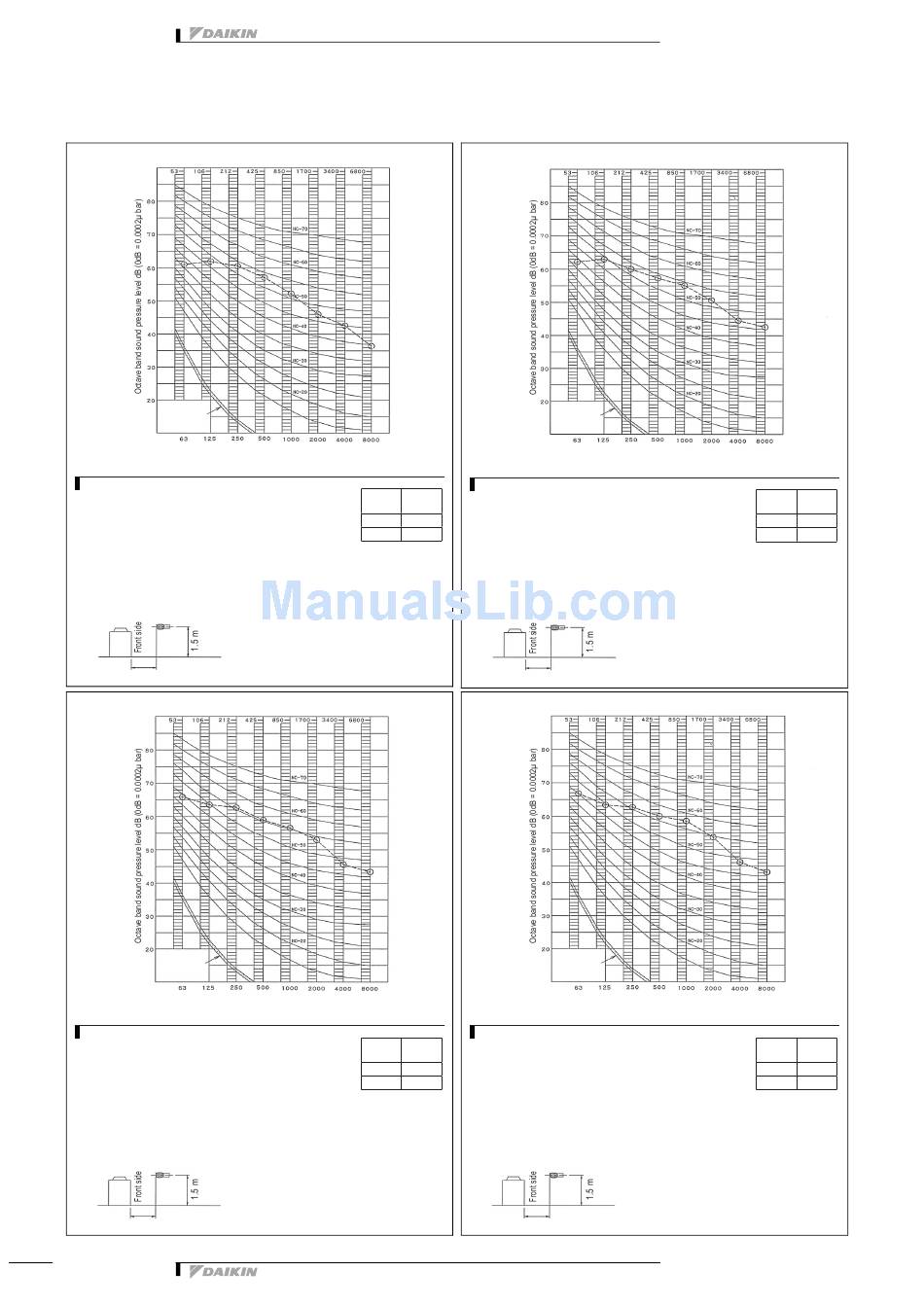

REYAQ10P
Approximate
threshold hearing
for continuous
noise
NOTES
1 Over All (dB):
(B,G,N is already rectifi ed)
2 Operating conditions:
Power source: 380-415V 50Hz
3 Measuring place: Anechoic chamber (conversion value)
4 The operating sound is measured in anechoic chamber,
if it is measured under the actual installation conditions,
it is normally over the set value due to enviromental noise and sound refl ection.
5 Location of microphone.
1 m
REYAQ14P
Approximate
threshold hearing
for continuous
noise
NOTES
1 Over All (dB):
(B,G,N is already rectifi ed)
2 Operating conditions:
Power source: 380-415V 50Hz
3 Measuring place: Anechoic chamber (conversion value)
4 The operating sound is measured in anechoic chamber,
if it is measured under the actual installation conditions,
it is normally over the set value due to enviromental noise and sound refl ection.
5 Location of microphone.
1 m
34
• Outdoor Unit • VRV
Octave band center frequency (Hz)
3TW59927-1A
Scale
Octave band center frequency (Hz)
3TW59927-1A
Scale
®
• VRV Systems • Outdoor Unit
®
III heat recovery, with connection to heating only hydrobox • REYAQ-P
REYAQ12P
NOTES
50 Hz
1 Over All (dB):
(B,G,N is already rectifi ed)
A 58
2 Operating conditions:
C 66
Power source: 380-415V 50Hz
3 Measuring place: Anechoic chamber (conversion value)
4 The operating sound is measured in anechoic chamber,
if it is measured under the actual installation conditions,
it is normally over the set value due to enviromental noise and sound refl ection.
5 Location of microphone.
1 m
REYAQ16P
NOTES
50 Hz
1 Over All (dB):
(B,G,N is already rectifi ed)
A 62
2 Operating conditions:
C 69
Power source: 380-415V 50Hz
3 Measuring place: Anechoic chamber (conversion value)
4 The operating sound is measured in anechoic chamber,
if it is measured under the actual installation conditions,
it is normally over the set value due to enviromental noise and sound refl ection.
5 Location of microphone.
1 m
Approximate
threshold hearing
for continuous
noise
Octave band center frequency (Hz)
Approximate
threshold hearing
for continuous
noise
Octave band center frequency (Hz)
3TW59927-1A
Scale 50 Hz
A 60
C 67
3TW59927-1A
Scale 50 Hz
A 63
C 70
