Summary of Contents for Symbol ES3000
-
Page 2: Document Conventions

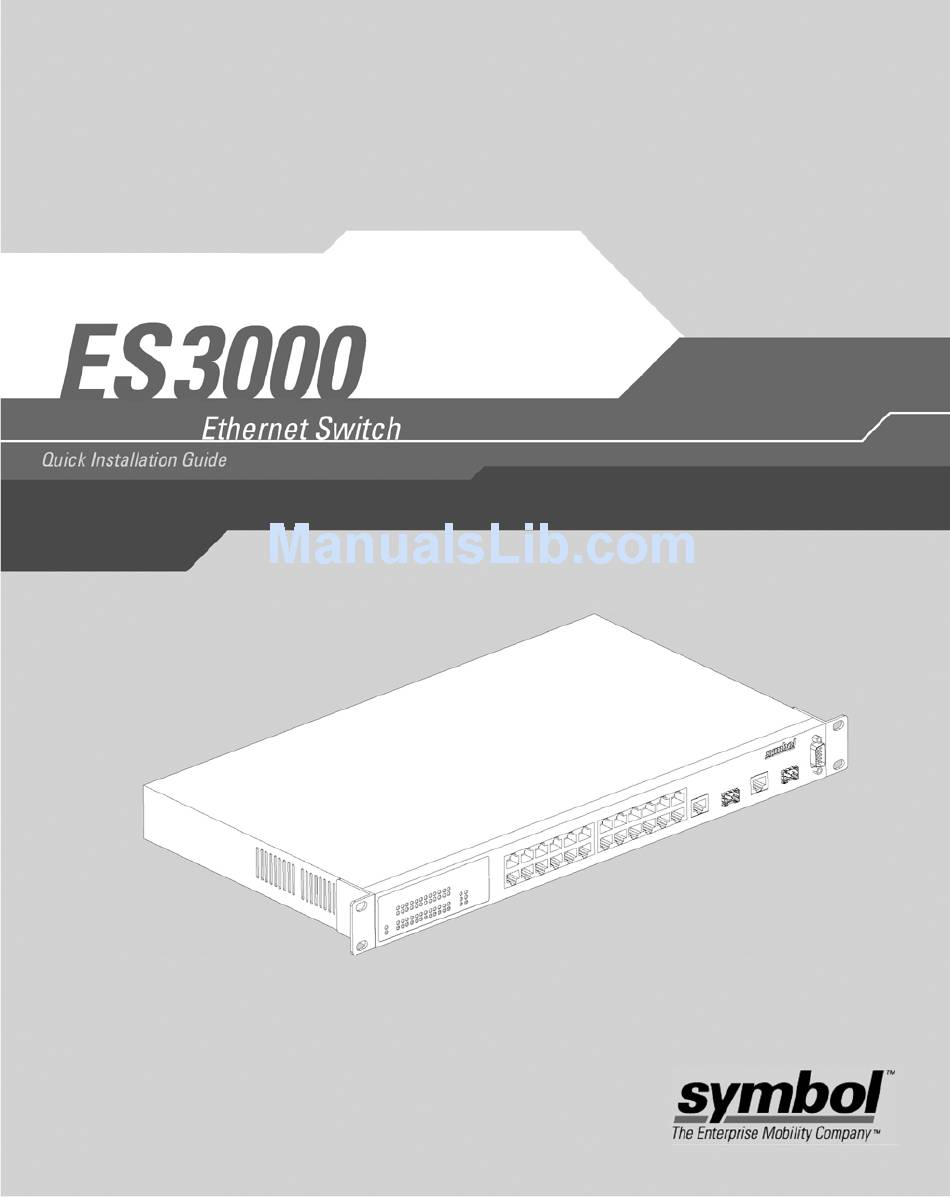

ES3000 Ethernet Switch - Quick Install Guide To the Installer This guide is intended for the technician responsible for installing the Symbol ES3000 Ethernet Switch. It is also assumed that the technician is familiar with Ethernet LAN-based networking concepts. The Symbol ES3000 Ethernet Switch is available in the following models: •... -
Page 3: Power Cord Set
Power Cord Set Only use a power cord approved for its intended country of operation: U.S.A. and Canada The cord set must be UL-approved and CSA certified. The minimum specification for the flexible cord is: No. 18AWG Type SV or SJ 3-conductor The cord set must have a rated current capacity of at least 15A. - Page 4 ES3000 Ethernet Switch - Quick Install Guide Warnings • Only trained and qualified personnel are allowed to install this equipment. • Remove any jewelry (rings, watches, necklaces, etc.) while installing this equipment. • Install this equipment in racks with appropriate dimensions and weight allowances. Verify racks are anchored and do not install in a way that can cause the equipment to tip and break.
-
Page 5: Specifications
Introduction The Symbol ES3000 Ethernet Switch provides centralized management of network components across the wired network infrastructure. The Ethernet Switch connects directly to distributed LAN resources (network switch or managed hubs). The rack-mountable design allows easy installation with other network components. -
Page 6: Preparing For Site Installation
Installation Preparing for Site Installation Site preparation for the ES3000 Ethernet Switch installation begins with a site survey and network analysis. Review the site survey reports to determine specific equipment placement, site-specific port capacity and power drops. Ensure the installation area is free of dust and dirt. - Page 8 Stop bits: Flow control: None 3. Hit the return key <Enter> to display the ES3000 logon screen. 4. Enter a user name of admin and password of symbol. Press Enter. 5. Select System Admin from the main menu. Press Enter.
- Page 9 Internet Explorer 5.0 or later or Netscape Navigator 6.0 or later is required. 2. Enter a user name of admin and password of symbol. Press OK. The Web interface General Information page displays.
- Page 10 ES3000 Ethernet Switch - Quick Install Guide Once the ES3000 user interface has been accessed using either the menu, CLI or Web interfaces, refer to the ES3000 User Manual for advanced device configuration information. Go to http://www.symbol.com/services/downloads to access the guide.
-
Page 11: Customer Support
Symbol products. If the Symbol Customer Support specialists cannot solve a problem, access to all technical disciplines within Symbol becomes available for further assistance and support. Symbol Customer Support responds to calls by email, telephone or fax within the time limits set forth in individual contractual agreements. -
Page 12: International Contacts
United Kingdom Telephone: 0800-328-2424 (Inside UK), +44 118 945 7529 (Outside UK) For other sales offices use the Symbol Services Web site for contact information http://www.symbol.com/services/howto/howto_contact_us.html Web Support Sites Comprehensive On-line support is available at the MySymbolCare Web site. Registration is free and a variety of services can be linked through this web-portal. -
Page 13: Regulatory Information
Regulatory Information All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user’s authority to operate the equipment. - Page 14 Copyright (c) 2004 by Symbol Technologies, Inc. All rights reserved. No part of this publication can be modified or adapted in any way, for any purposes without permission in writing from Symbol. The material in this manual is subject to change without notice.
- Page 16 72E-67923-01 Revision A...
