Viking Range VDD5300 Use & Installation Manual

5 series rear downdraft ventilators
Hide thumbs Also See for VDD5300:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
USE / INSTALLATION GUIDE
5 Series
Rear Downdraft Ventilators

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDD5300 and is the answer not in the manual?

Questions and answers

Related Manuals for Viking Range VDD5300

Summary of Contents for Viking Range VDD5300

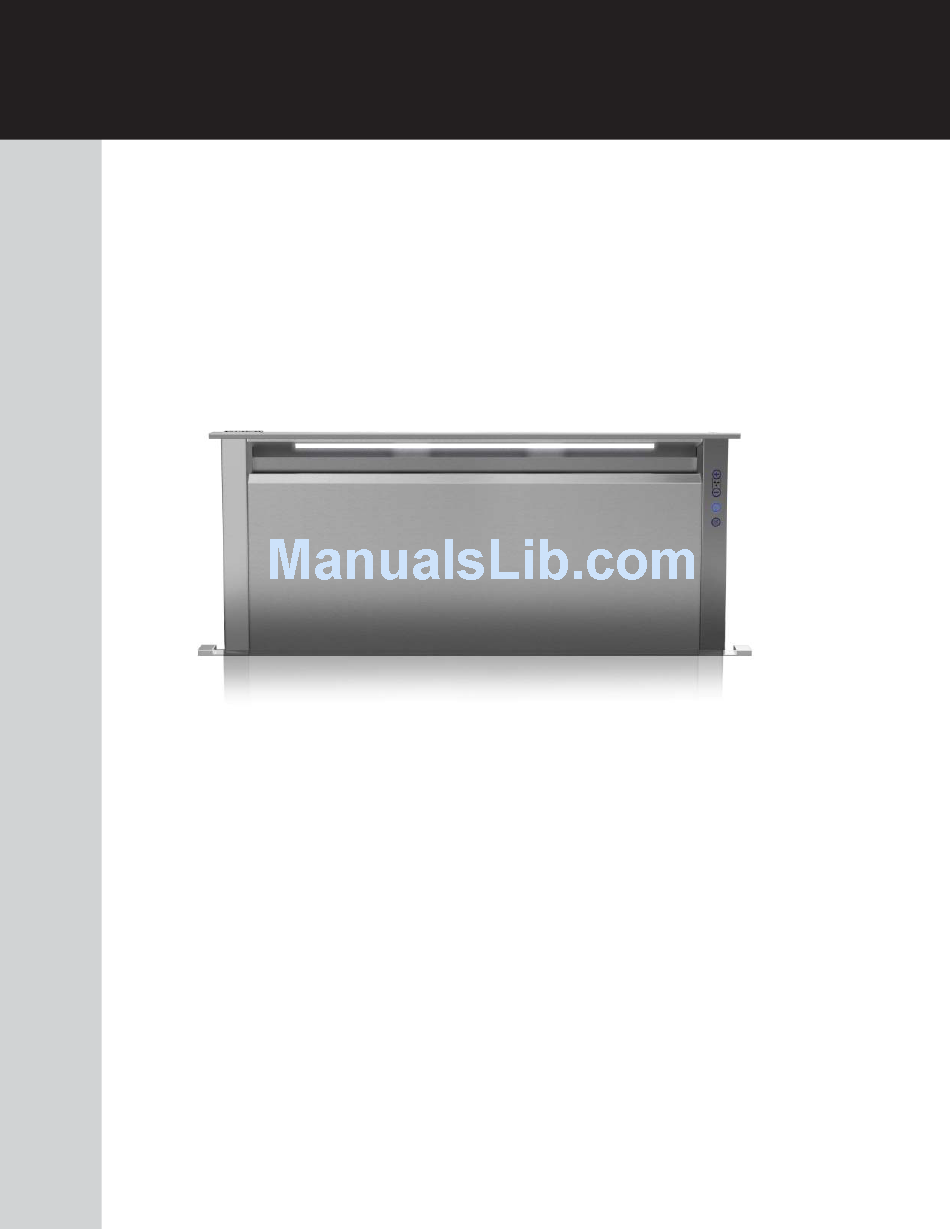

  • Page 1 USE / INSTALLATION GUIDE 5 Series Rear Downdraft Ventilators...
  • Page 2 MODEL WIDTH BLOWER (purchased separately) VDD5300/CVDD5300 30" W. VDVI600 Interior or VDVE900 Exterior VDD5360/CVDD5360 36" W. VDVI600 Interior or VDVE900 Exterior VDD5450/CVDD5450 45" W. VDVI600 Interior or VDVE900 Exterior, VDVE1200 Exterior VDD5480/CVDD5480 48" W. VDVI600 Interior or VDVE900 Exterior, VDVE1200 Exterior...

  • Page 3: Take Measurements

    CONTENTS PLAN THE DUCTWORK These parts are included with your downdraft housing: 1 - Parts Bag 1 - Trim Kit HOUSING 4 - Support Legs 1 - Electrical Panel 2 - Support Brackets FLEX PLANNING BLOWER Due to its fl exible design, this downdraft system can be used to ex- haust airborne contaminants when cooking with a variety of gas or electric cooking appliances - including cooktops, rangetops, slide-in ranges and free-standing ranges.
  • Page 4 PLAN CABINET CUTOUTS PREPARE THE DOWNDRAFT CAUTION: FRONT PANEL COVER BEFORE CUTTING HOLE IN CABINET FOR DUCTWORK, check for interference with fl oor joists, wall studs, electrical wiring, or plumbing. CLAMP INSTALLATION CHANNEL CENTER LINE (4-6) HEX 6 ” NUTS HOLE 1 ”...
  • Page 5 8" OR 10" ROUND REMOTE DISCHARGE SLIDE PLATE (Purchase Separatly) CHANNEL COVER PLATE COVER UPPER PLATES SUPPORT BRACKET LOWER FRONT CHANNEL PANEL Flex Blower shown installed. Installations using FLEX BLOWER (in remote location) or REMOTE BLOWER only: 4. Use the REMOTE DISCHARGE PLATE and determine its LONG OR location on FRONT PANEL.
  • Page 6 RECTANGULAR DISCHARGE COVERS This Front Panel remains in place. Installations where ELECTRICAL PANEL needs to be Installations ducting through left, right or rear only: mounted in a remote location only: (Requires purchase of 2" x 19" to 8" or 10" round transition 6.
  • Page 7 CUT COUNTERTOP OPENING 1. Lay out and cut the cooktop cut-out far enough FORWARD so downdraft will fi t behind it. 2. Set cooktop in place and slide it as far forward as possible without exposing any gaps. Center and square it with edges of countertop.

  • Page 8: Install Ductwork

    INSTALL DUCTWORK Installations using REMOTE BLOWER only: CAUTION: All electrical wiring should be done by a CAUTION: BEFORE CUTTING HOLE IN CABINET qualifi ed person(s) in accordance with all applicable FOR DUCTWORK, check for interference with fl oor codes and standards. joists, wall studs, electrical wiring, or plumbing.
  • Page 9 INSTALL FINISH TRIM INSTALL COOKING APPLIANCE 1. Align the cooking appliance with downdraft and fasten ap- SCREW pliance in place following appliance instructions. Note: Accurate alignment of cooking appliance and downdraft is necessary to ensure that there is no interference when air vent FINISH is raised and lowered.

  • Page 10: Operation

    OPERATION 4-Speed Fan Speed Control 4-Speed Fan Speed Control Press + button to increase fan speed. Press - button to decrease fan speed. After maximum speed is reached, press + button once more to turn off fan. 2-Level Task Light 2-Level Task Light Press once for LOW setting.

  • Page 11: Service Information

    Always turn the downdraft blower on before you begin cooking to establish an air fl ow in the kitchen. Let the blower run for a Contact Viking Range, LLC, 1-888-(845-4641), for the nearest few minutes to clean the air after you turn the cooktop off. This service parts distributor in your area or write to: will keep the whole kitchen cleaner and brighter.

  • Page 12: Warranty

    Downdrafts and all of their component parts, except as detailed below*†, are warranted to be free from defective materials or workmanship in normal residential use for a period of one (1) year from the date of original retail purchase. Viking Range, LLC, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.
