Viking Range DEV15001 Instructions Manual

MODEL DEV15001
EXTERIOR MOUNTED VENTILATOR
FOR USE ONLY WITH VIKING VBCV/VCWH/VWH/TVWH/VCWH/VCIH - 42"W - 66"W WALL AND
ISLAND HOODS, AND VDD 30"W - 48"W DOWNDRAFT VENTILATORS.
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer or your distributor.
2. Before servicing or cleaning unit, switch power off at
service panel and lock the service disconnecting means
to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a
tag, to the service panel.
3. Installation work and electrical wiring must be done by
a qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction
codes and standards.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow the
heating equipment manufacturer's guideline and safety
standards such as those published by the National Fire
Protection Association (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
1 Exterior blower
1 Rough-in plate (installation with wall or island canopy
hood only)
PLAN THE
INSTALLATION
ALL INSTALLATIONS
1. Locate the ventilator so the
length of the duct run and
number of elbows needed
are kept to a minimum.
2. Where possible, ventilator
should be centered between
wall studs or roof rafters.
3. Avoid pipes, wires, or
other ductwork that may be
running through the wall.
INSTALLER: Leave This Manual With The Homeowner.
HOMEOWNER: Use And Care Information On Page 4.
THIS KIT CONTAINS:
MODEL DEV15001
EXTERIOR VENTILATOR
SOFFIT
WALL HOOD
CANOPY
(island canopy and rear
downdraft ventilator
available)

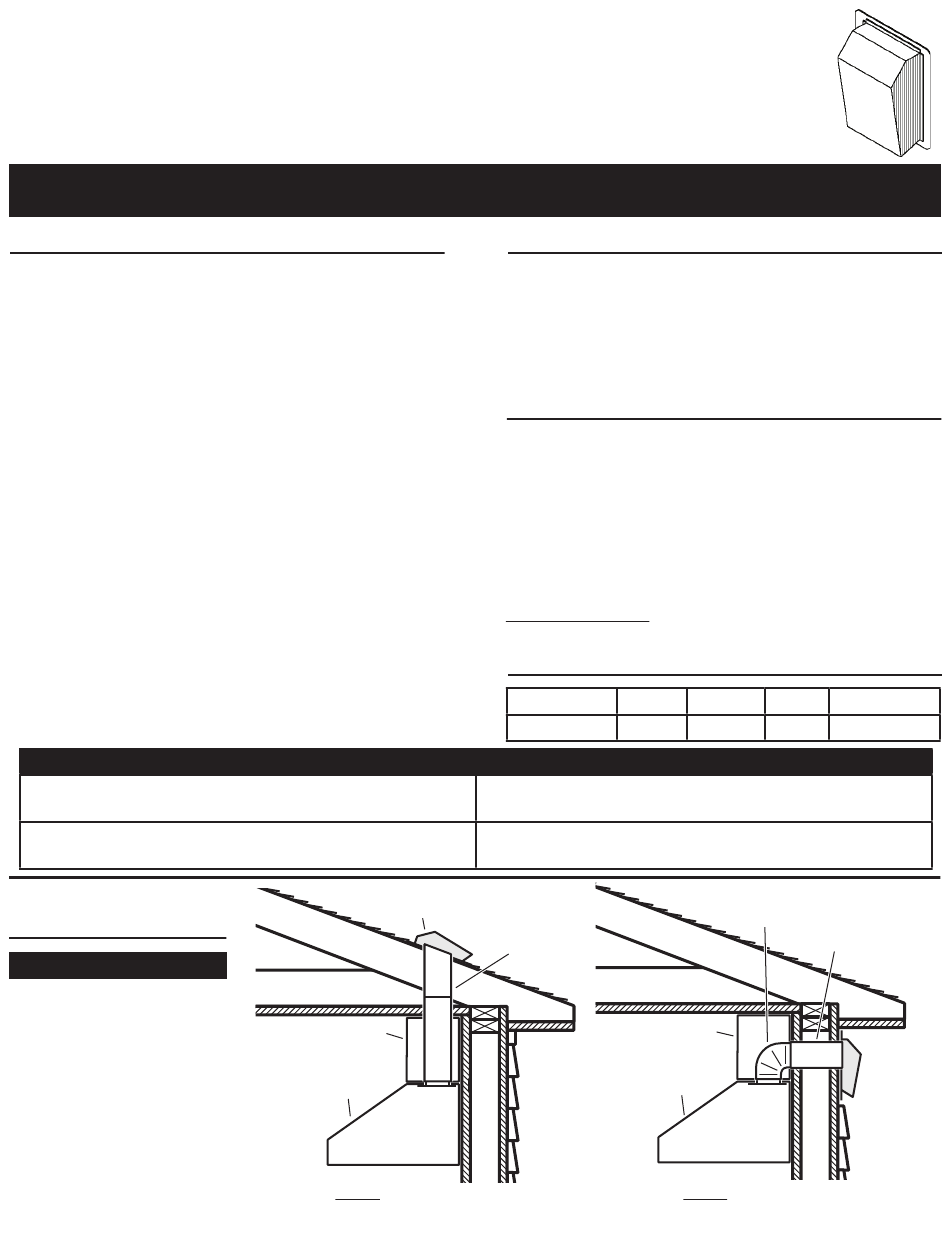

TYPICAL ROOF MOUNTED INSTALLATION
WARNING
5. When cutting or drilling into wall, or ceiling, do not damage
electrical wiring or other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce risk of fire, use only metal ductwork.
8. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous
or explosive material and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. Please read specification label on product for further information
and requirements.
4. Electrical circuit, including speed control, (if used), must be
rated 6 AMPS minimum.
Blower Dimensions
25 x 30.828 x 12.724
SPECIFICATIONS
MODEL VOLTS
DEV15001 120
1 cover plate 12¾ " x 6½" (installation with VDD downdraft
ventilator only)
2 cover plates 12¾ " x 3½" (installation with VDD downdraft
ventilator only)
10" ROUND
DUCT
WALL HOOD
CANOPY
(island canopy and rear
downdraft ventilator
available)
TYPICAL WALL MOUNTED INSTALLATION
1
AMPS CFM DUCT SIZE
4.3 1500
10" ROUND ELBOW
10" ROUND DUCT
SOFFIT
10" DIA.
MODEL
DEV15001
EXTERIOR
VENTILATOR
