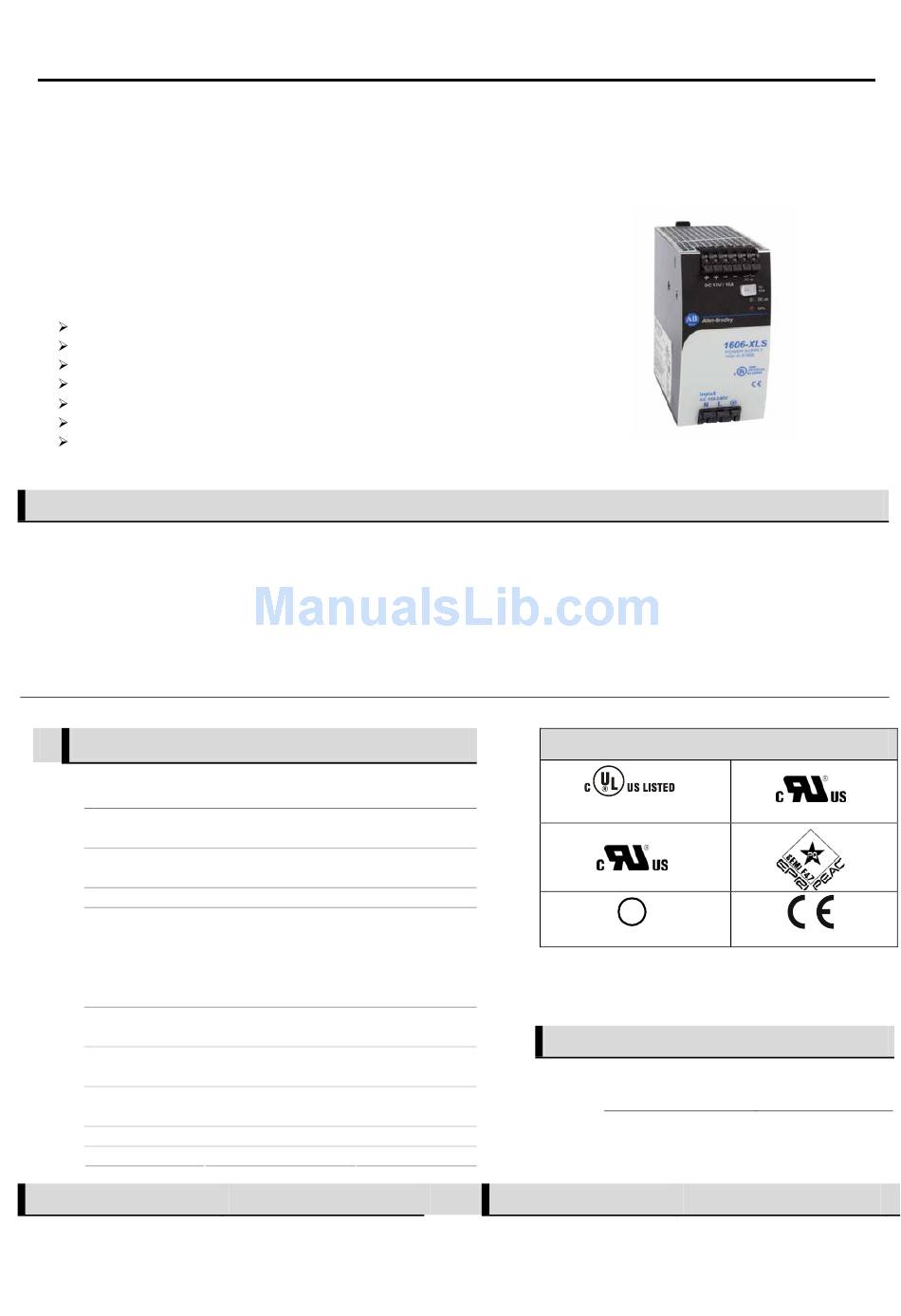

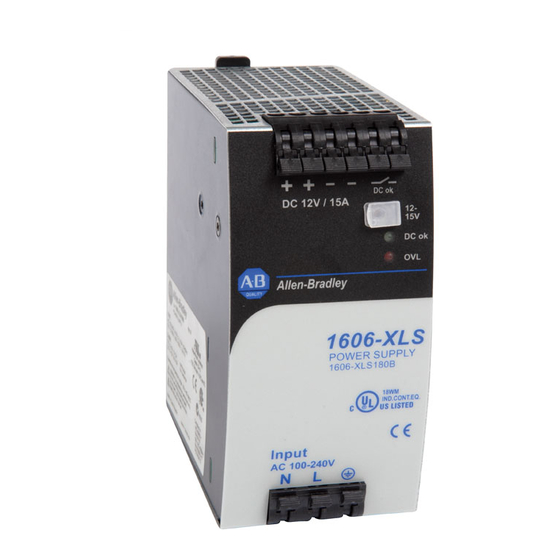

1606-XLS180B 12V, 15A; Single Phase Input
1606-XLS180B
12V,15A Single Phase Input
P S
OWER UPPLY
Ultra-small size
Extra-low inrush current
Active power factor correction
Wide range AC/DC input
Superior reserve power (can support 150% rated power for five seconds)
Superior efficiency and temperature rating
DC-OK and overload LED
1. G D
ENERAL ESCRIPTION
The most outstanding features of this 1606-XLS DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and
further novel design details.
With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and
often allow a unit of a lower wattage class to be used.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due
to the dry DC-ok contact, a green DC-ok LED and red overload LED.
Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit
suitable for nearly every situation.
2. S
PECIFICATION
Output voltage
Adjustment range
Output current
Output power
Output ripple
Input voltage
Line frequency
AC Input current
Power factor
AC Inrush current
DC Input voltage
DC Input current
Efficiency
Losses
Temperature range
Derating
Hold-up time
Dimensions
I
NDEX
10000052966 (Version 00)
Q
UICK REFERENCE
DC 12V
12-15V
15A continuous, 12V
22.5A for typ. 4s, 12V
180W continuous, 12V
270W for typ. 4s, 12V
< 50mVpp 20Hz to 20MHz
AC 100-240V ±15%
50-60Hz ±6%
1.65 / 0.93A at 120 / 230Vac
0.98 / 0.92 at 120 / 230Vac
typ. 4 / 7A peak at 120 / 230Vac
DC 110-300V - -20%/+25%
1.78 / 0.65A at 110 / 300Vdc
91.5 / 91.8% at 120 / 230Vac
16.7 / 16.1W at 120 / 230Vac
-25°C to +70°C operational
5W/°C +60 to +70°C
typ. 32 / 32ms at 120 / 230Vac
60x124x117mm WxHxD
P I
AGE NDEX
www.ab.com
3. A A
GENCY PPROVALS
IND. CONT. EQ.
UL 508
Class I Div 2
GL
Marine
4. R P
ELATED RODUCTS
1606-XLB
1606-XLSRED
1606-XLBUFFER
UL 60950-1
EMC, LVD
Wall mount bracket
Redundancy Module
Buffer unit
P
AGE
