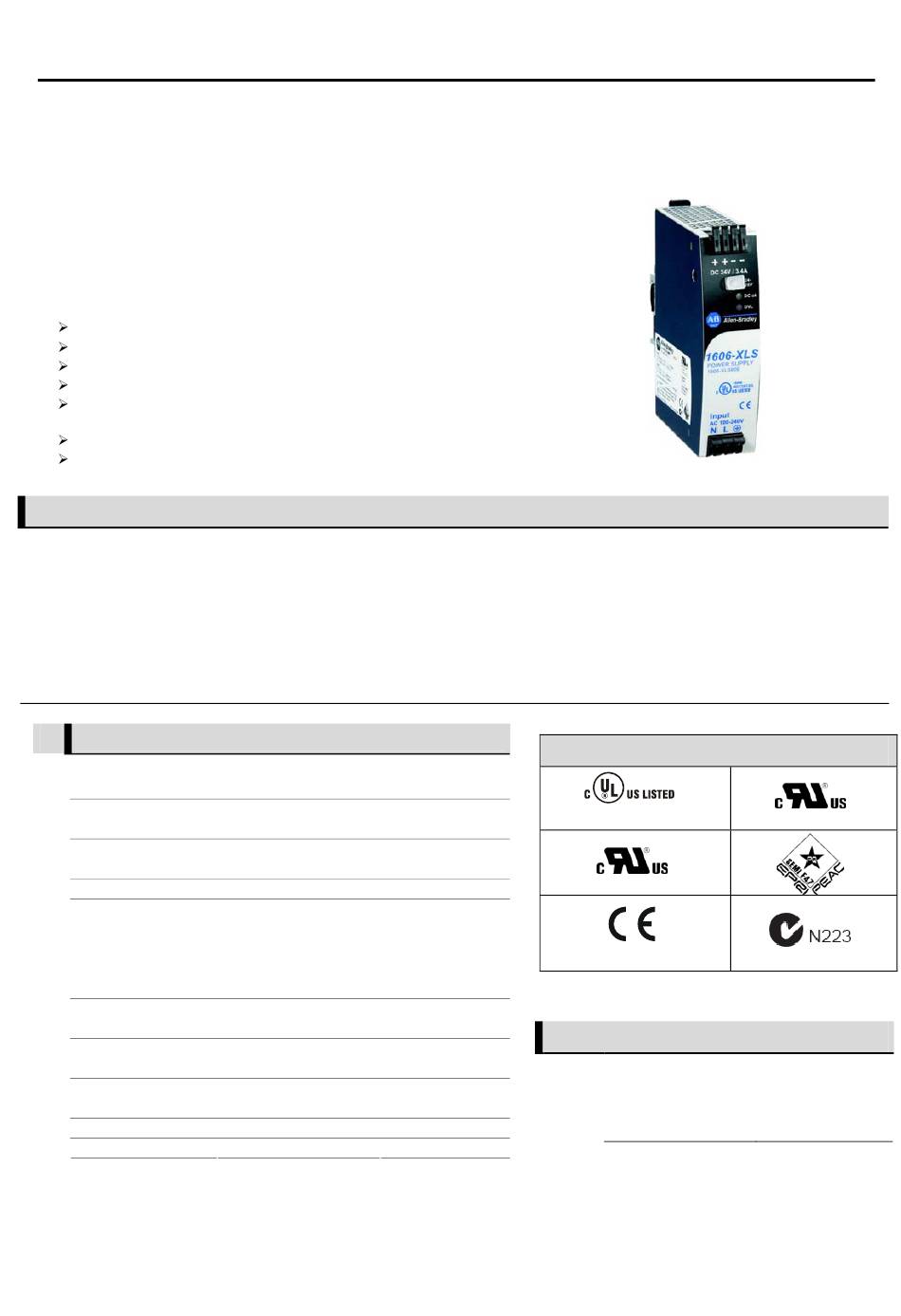

Rockwell Automation 1606-XLS80E Manual

Rockwell
1606-XLS80E 24V, 3.4A; Single Phase Input
1606-XLS80E
24V,3.4A Single Phase Input
P S
OWER UPPLY
Ultra-small size
Extra-low inrush current
Active power factor correction
Wide range AC/DC input
Superior reserve power (can support 150% rated power for five
seconds)
Superior efficiency and temperature rating
DC-OK and overload LED
1. G D
ENERAL ESCRIPTION
The most outstanding features of this 1606-XLS DIN-rail power supply are the high efficiency and the small size, which are achieved by a
synchronous rectification and further novel design details.
With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors
and absorb reverse energy and often allow a unit of a lower wattage class to be used.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage
simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED.
Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of
applications makes this unit suitable for nearly every situation.
2. S
PECIFICATION
Output voltage
Adjustment range
Output current
Output power
Output ripple
Input voltage
Line frequency
AC Input current
Power factor
AC Inrush current
DC Input voltage
DC Input current
Efficiency
Losses
Temperature range
Derating
Hold-up time
Dimensions
10000051148 (Version 00)
Automation
Q
UICK REFERENCE
DC 24V
24-28V
3.4A continuous, 24V
5A for typ. 4s, 24V
80W continuous, 24V
120W for typ. 4s, 24V
< 50mVpp 20Hz to 20MHz
AC 100-240V ±15%
50-60Hz ±6%
1.42 / 0.82A at 120 / 230Vac
0.53 / 0.47 at 120 / 230Vac
typ. 5 / 10A peak at 120 / 230Vac
-
DC 110-300V -20%/+25%
0.8 / 0.29A at 110 / 300Vdc
88.7 / 90.0% at 120 / 230Vac
10.4 / 9.1W at 120 / 230Vac
-25°C to +70°C operational
2W/°C +60 to +70°C
typ. 41 / 174ms at 120 / 230Vac
32x124x102mm WxHxD
3. A
4. R
www.ab.com
A
GENCY PPROVALS
IND. CONT. EQ.
UL 508
Class I Div 2
EMC, LVD
P
ELATED RODUCTS
Wall mount
1606-XLB
bracket
Redundancy
1606-XLSRED
Module
1606-XLBUFFER Buffer unit
UL 60950-1
Page 1
