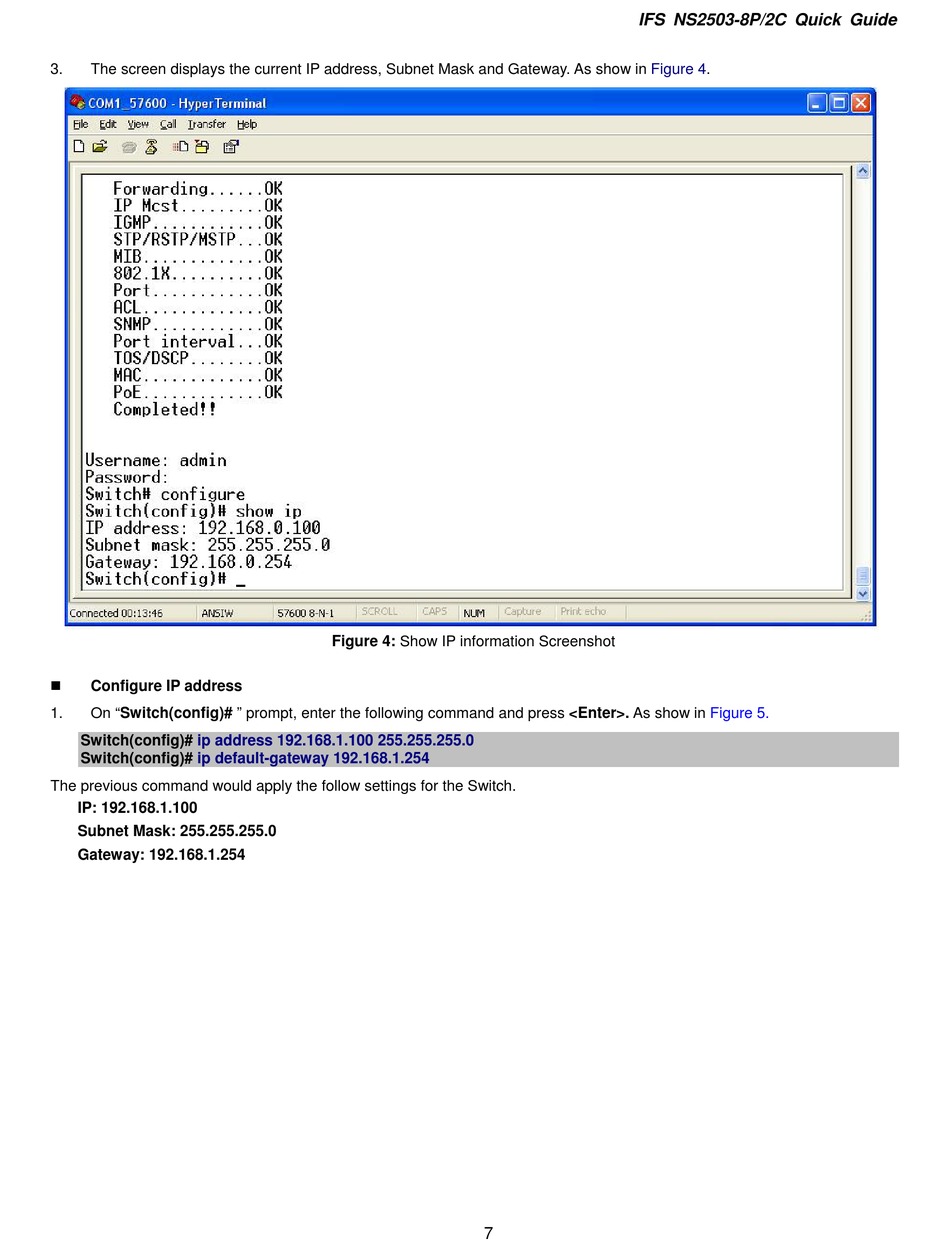

Interlogix IFS NS2503-8P/2C Quick Installation Manual page 7

3. The screen displays the current IP address, Subnet Mask and Gateway. As show in

Configure IP address
1. On "Switch(config)# " prompt, enter the following command and press <Enter>. As show in
Switch(config)# ip address 192.168.1.100 255.255.255.0
Switch(config)# ip default-gateway 192.168.1.254
The previous command would apply the follow settings for the Switch.
IP: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.254
Figure 4: Show IP information Screenshot
7
IFS NS2503-8P/2C Quick Guide
Figure 4.
Figure 5.
