Audio Authority 932 Hookups And Settings

Left & Right Speakers
Model 932 Speaker Modules can be configured to function as left, right or mono modules. The slide switch on
the bottom left side of the module is marked "LEFT-RIGHT." Position the switch to "LEFT" for left channel
function and RIGHT for either right channel or MONO function. (If used for mono operation there will not be
a corresponding "L" module.)
932 modules in the Front Speaker Product Group are unique in the fact that they share the same GROUP
Address with the receiver group. For example, if the Receiver Product Group number is "4", then the Front
Speaker Group number would also be "4". All other speaker groups should have a higher GROUP address.
LEFT and RIGHT modules have the same Module ID (e.g. for front speakers 1-8 both LEFT & RIGHT modules
would be addressed: MODULE ID= "0-9" on the slide switch, and "0" on the rotary switch; GROUP= 4.
The next module pair for front speakers 9-16 both LEFT & RIGHT modules would be addressed: MODULE
ID= "0-9" on the slide switch, and "1" on the rotary switch; GROUP= 4, etc.)

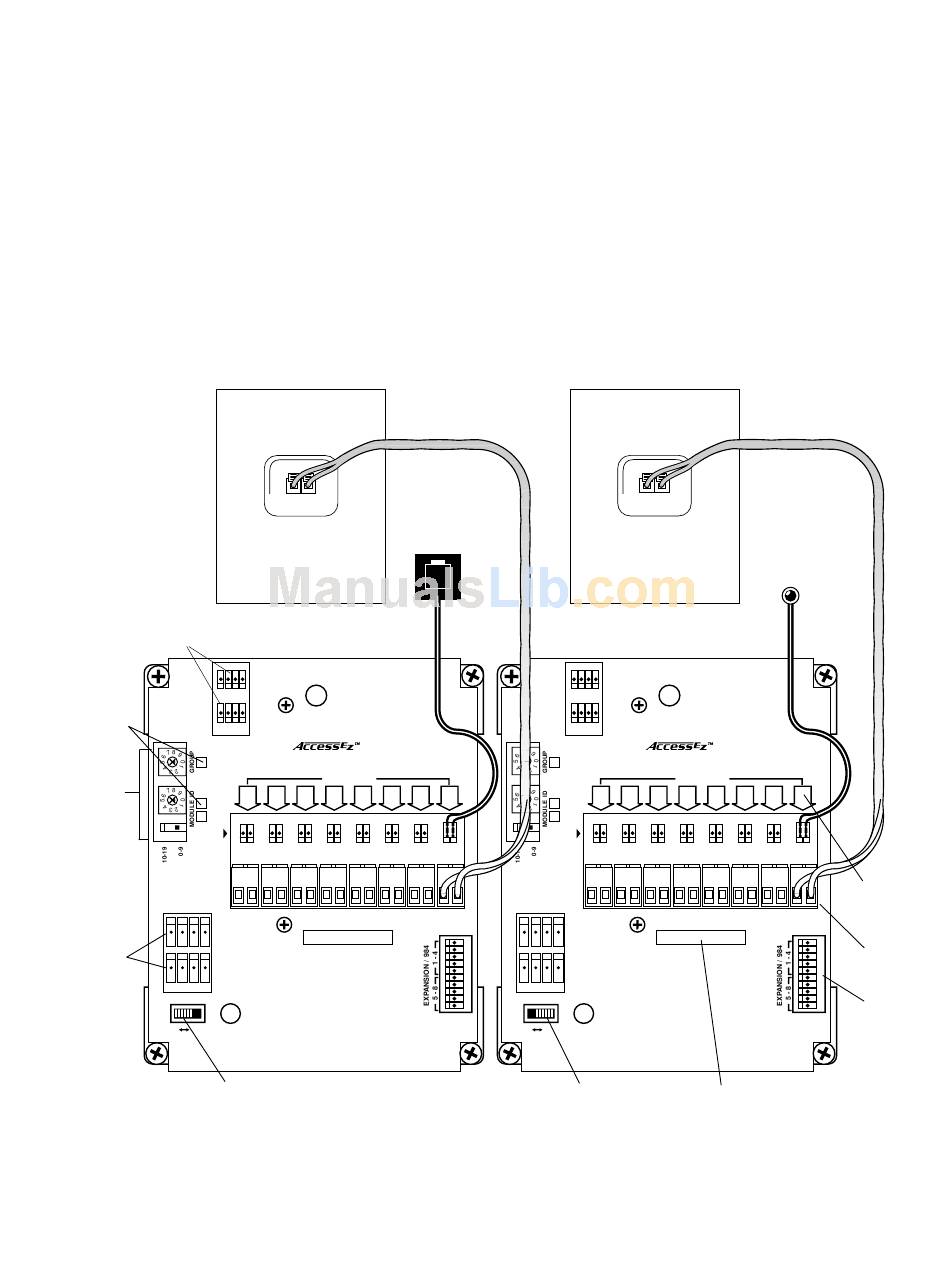

System Bus
Connections
Write in the
Product
Group and
Module ID
settings
SYSTEM
BUS
Module
Address
Settings
PSB
SPEAKER
BUS
Speaker Bus
Connections
LEFT RIGHT
Settings for
Module
as LEFT Channel
ASD
Phone: 859-233-4599 Fax: 859-233-4510
+ –
Select Button
Left Speaker
Position #8
POWER
ASD
Model 932
Speaker Selector
SPEAKERS
1 2 3 4 5 6
( + – )
FRONT, REAR, SUB, ETC:
Tech Support USA and Canada: 800-322-8346 (Mon-Fri 8:30 AM to 5:00 PM Eastern Time)
Optional
994/995
Product
S
701-1090
SYSTEM
BUS
7 8
PSB
SPEAKER
BUS
( + – )
LEFT RIGHT
Settings for
Module as
RIGHT Channel
Hookup drawings and FAQ http://www.audioauthority.com
+ –
Optional
996/997
Product
Indicator
Right Speaker
(LED)
Position #8
701-1090
POWER
ASD
Model 932
Speaker Selector
SPEAKERS
1 2 3 4 5 6 7
FRONT, REAR, SUB, ETC:
Write in the
Speaker Group
Name
8
Write in each
Speaker's
number (e.g.
16 or 24)
Connectors are
removable for
service.
Port for Model
984 Speaker
EQ Injector
