Using the Model 90 Modular Selector

®
The Audio Authority
Model 90 provides a convenient solution
for demonstrating and switching small shelf-top products. When
equipped with the appropriate AccessEZ
the Model 90 can compare four of virtually any electronic prod-
uct. If product capacity of eight or more is required, two or more
Model 90 units can be combined to form a more complex switch-
ing network.

Applications

The following applications illustrate the scope of the Model 90's capability for product demonstration:
AccessEZ
Module(s)
920X
920X + 940X
920X + 960X
933X
940X
940X + 940X
950X
960X
965X
2961

Assembly (Some Required)

Remove the top cover of the Model 90 by pulling it toward the rear. After loading the Model 90 and connect-
ing products, push the cover back on.
The Model 90 comes with its own wall power pack and assembly hard-
ware. AccessEZ switching expansion modules must be purchased
separately. To load switching expansion modules in the Model 90's
chassis, remove the black protective sleeve from the 5-pin headers
extending from the edges of the modules. Plug the first module into the
hidden 5-pin receptacle in the printed circuit board at the front of the
module compartment (Figure 2). Secure it to the floor of the compart-
ment with four of the self-tapping screws supplied. Tighten the screws just enough to prevent rattles. When
correctly tightened, the screws will protrude very slightly from the bottom of the chassis. Add a second
module if desired, plugging it into the first module and securing it to the base plate with
screws.

Mounting

The Model 90 may be set on a shelf, or
permanently mounted to the top or
bottom of a shelf with screws. Apply the
four self-adhesive feet about 1/4 inch from
the corners of the bottom surface if the
Model 90 is to be set on a shelf.
Secure the unit to the top of a shelf with the two wood screws provided
(do not use the adhesive feet with mounting screws). Place one of the
provided plastic washers under each of the large holes (Figure 3) in the
bottom plate of the Model 90, then drive a wood screw through the
plate and each washer into the shelf. Replace the top cover.
To mount the Model 90 under a shelf, pop out the hole plugs in the top cover, place plastic washers in the
holes and drive a wood screw through each one into the shelf. Load and connect the bottom plate as de-
scribed below and push it into the pre-mounted top cover (Figure 4).
expansion modules,
Application
CD and tape players or line-level subwoofers
Stereo receivers and amplifiers
S-video sources such as DVD players and satellite receivers
Personal stereos, mini speakers, headphones
Front stereo speakers, telephones
Center and rear speakers
Audio/video sources such as DVD, VCR and laserdisc players
S-VHS or (S-video)
RF sources such as VCRs
Provides TheftAlert
protection when added to a 920X or 950X.

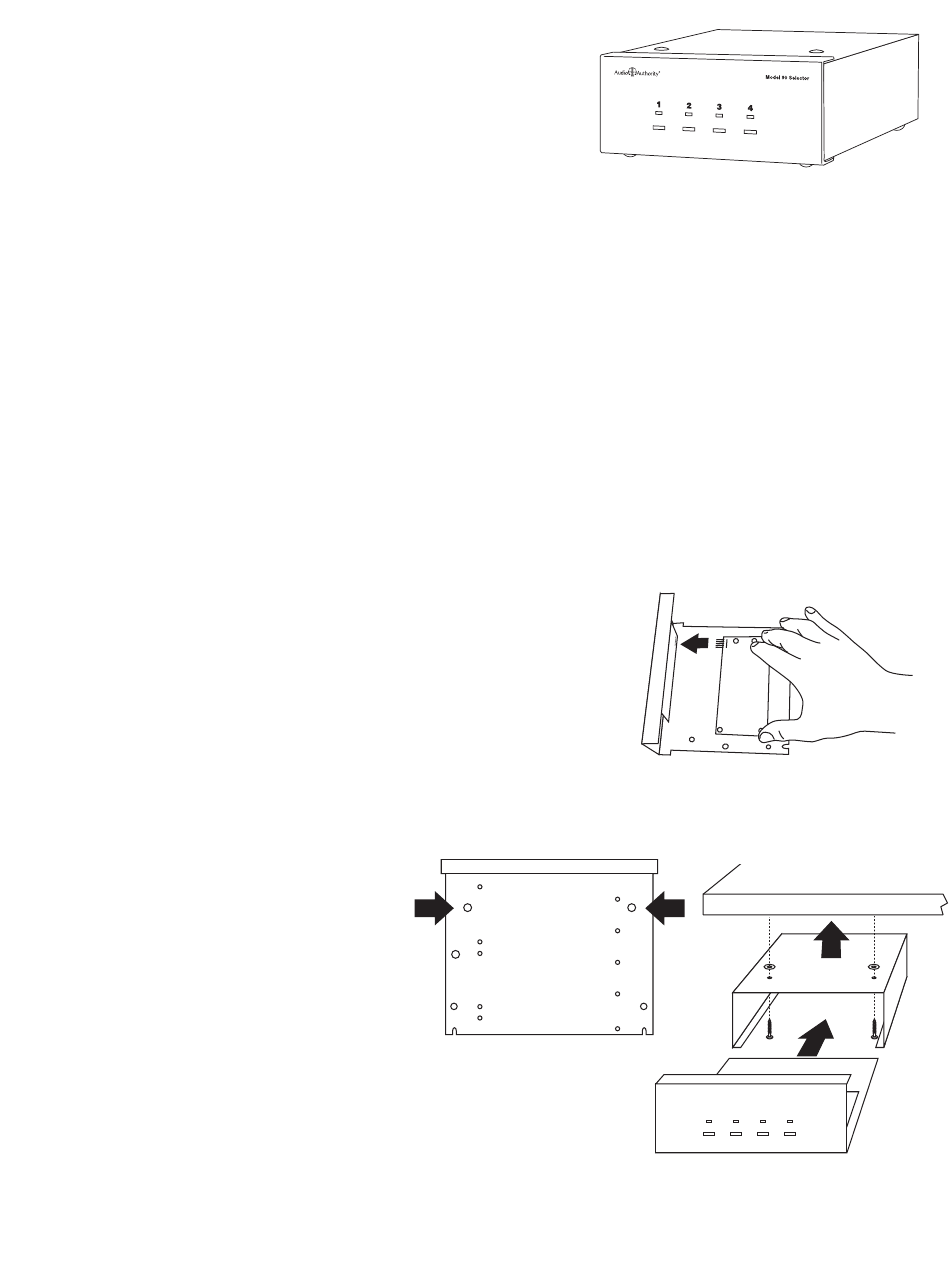

Figure 3.
Shelf-top
Mounting Holes
in Bottom Plate
Figure 1.
Figure 2.
Inserting
Expansion
Modules
Figure 4.
Under-Shelf Mounting

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90 and is the answer not in the manual?

Questions and answers

Summary of Contents for Audio Authority 90

  • Page 1 Replace the top cover. To mount the Model 90 under a shelf, pop out the hole plugs in the top cover, place plastic washers in the holes and drive a wood screw through each one into the shelf. Load and connect the bottom plate as de-...
  • Page 2 Plug the products to be demonstrated into product ports 1 through 4 on the switching module(s). Plug the associated system into the Bus ports on the modules. For example, (Figure 5) if the Model 90 is demonstrating S-video sources using a combination of 920X and 960X, plug the audio and video outputs of video player number 1 into product port 1 of the 920X and 960X, respectively, using a stereo RCA patch cord and S-video cord.
