BIRO 3334 Operating And Service Manual

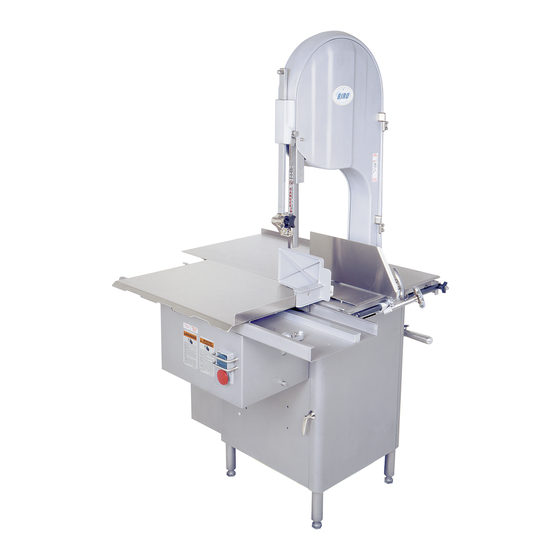

Power meat cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

+
+

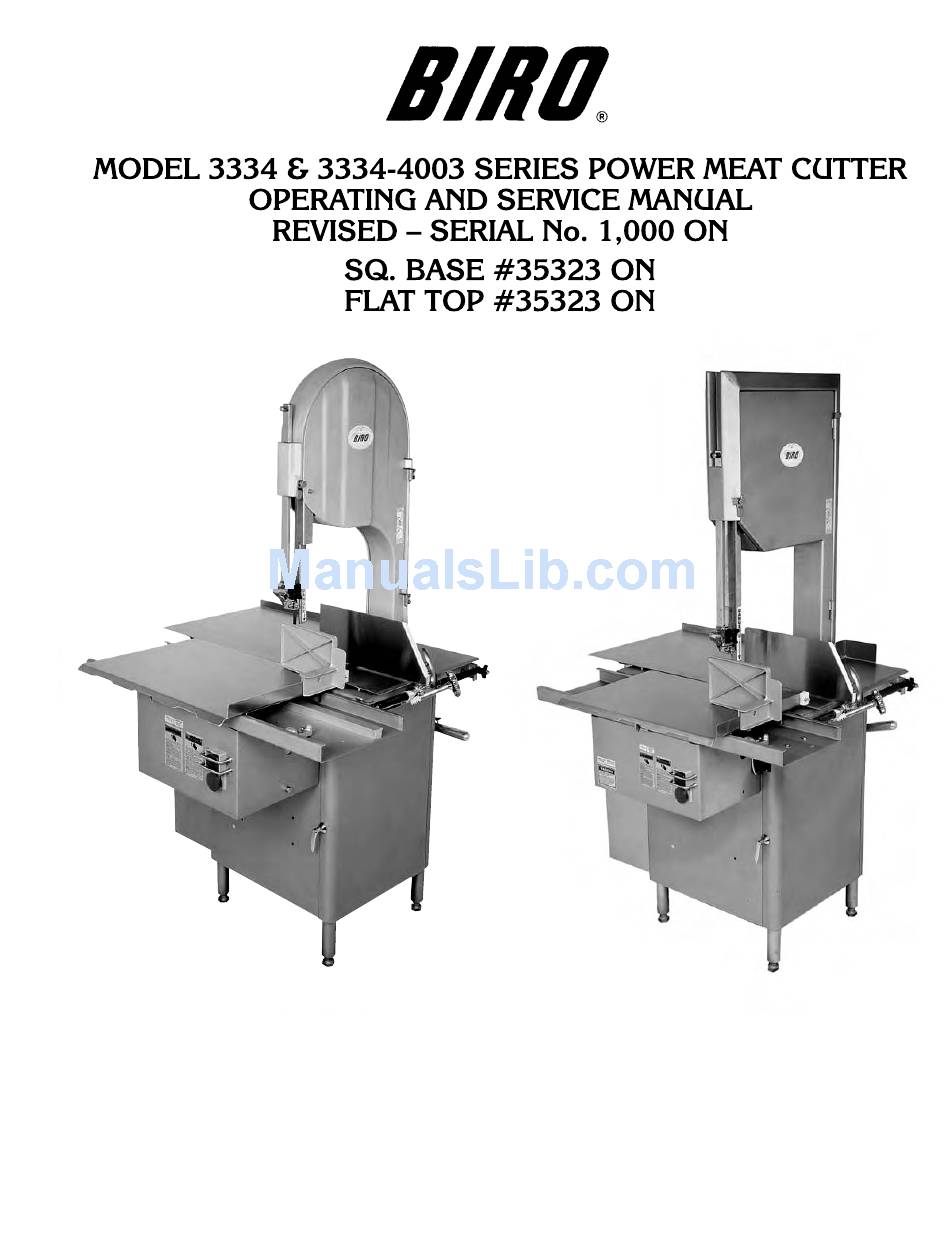

IMPORTANT NOTICE

This Manual contains important
safety instructions which must
be strictly followed when using
this equipment.
PTCT 3334
PTCT 3334
100-10-09-31
100-5-06-29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3334 and is the answer not in the manual?

Questions and answers

Related Manuals for BIRO 3334

Summary of Contents for BIRO 3334

  • Page 1: Important Notice

    IMPORTANT NOTICE This Manual contains important safety instructions which must be strictly followed when using this equipment. PTCT 3334 PTCT 3334 100-10-09-31 100-5-06-29...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page NOTICE TO OWNERS AND OPERATORS ......... 1 SAFETY TIPS .

  • Page 3: Notice To Owners And Operators

    Manual. Warnings related to your personal safety are indicated by: Warnings related to possible damage are indicated by: BIRO also has provided a wall chart to be posted near the equipment. If any warning label, wall chart, or Manual becomes misplaced, damaged, or illegible, please contact your nearest Distribu- tor or BIRO directly for a replacement.

  • Page 4: Safety Tips

    Machine BEFORE Removing Shrouds, Removable Guards, Covers, Doors, Fences or Panels for Cleaning, Servicing or Any Other Reason. NEVER Leave Machine Unattended While Operating. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY BIRO Parts and Accessories Properly Installed.

  • Page 5: Installation

    NEVER Operate Without all Warning Labels Attached and Wall Chart Posted. 1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO first.
  • Page 6 (5) The drive belt is packed loose in machine to prevent deformation, and must be installed on pulleys at time of wiring motor. (6) The BIRO Manufacturing Company is not responsible for permanent wiring, connection or installation. NOTE TO OWNER AND ELECTRICIAN: IF THIS MACHINE IS NOT CORD...

  • Page 7: Warning Labels

    16. Check placement of all warning labels, wall chart and Manual. Machine is ready for trained operators to process product. 17. Contact your local Distributor or BIRO directly if you have any questions or problems with the installation or oper- ation of this machine.

  • Page 8: Operation

    OPERATION SHARP MOVING BAND TYPE SAW BLADE TO AVOID SERIOUS PERSONAL INJURY ONLY Properly Trained Personnel Should Use This Equipment. ALWAYS Keep Hands Clear of Band Type Saw Blade and Other Moving Parts. NEVER Operate with Saw Guard on Saw Guide Bar in the Raised Position or the Saw Guard Removed from the Saw Guide Bar.
  • Page 9 6. ALWAYS use the Safety End Cut Pusher Plate (Part No. 256P) for smaller products or the last cuts of product. The pusher plate is supplied as standard on all BIRO power cutters. 7. When finished cutting, push stop button. Perform lockout/tag out procedure.

  • Page 10: Cleaning

    Electrical Components. ALWAYS Thoroughly Clean Equipment at Least Daily. CLEANING THE BIRO POWER CUTTER: Disconnect electrical power to the machine before cleaning. Parts to be removed have been made accessible and can be removed without tools. Notice in the drawing below that all parts are numbered. Each part should be removed for cleaning in the numbered sequence shown.

  • Page 11: Maintenance

    NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY GENUINE BIRO Parts and Accessories Properly Installed. A. GENERAL 1. Machine should be generally inspected every time it is cleaned (at least daily) to ensure that it is in good condition and has not been damaged or tampered with.

  • Page 12: Lubrication

    e. STATIONARY BAR ASSEMBLY: Check condition of nylon filler (Part No. 177), change every four (4) weeks. Check condition of saw guide (Part No. 119A), check tracking of blade through guide, back of blade should be centered in hole, replace every six (6) months. Check condition of lower blade back-up guide (Part No. 605).

  • Page 13: Wall Chart (Part No. 671)

    ITEM NUMBER 671 WALL CHART “BAND SAW SAFETY GUIDELINES” ATTACH TO WALL IN VICINITY OF MACHINE IN EASY VIEW OF OPERATOR WARNING ONLY PROPERLY TRAINED PERSONNEL SHOULD USE THIS EQUIPMENT This Saw Contains A Sharp Blade. To Reduce Risk of Injury: 1.

  • Page 14: Motor Adjustment

    BIRO SAW is equipped with the most current safety features available. In September 1969 production of the Model 3334 began and is current. The Model 3334 was first equipped with 19” saw guide bar until March 1973 when the length was extended to 23”. In June 1977, the bar was shortened to 22”...
  • Page 17 A16163-4 A16163-4E-COS A16163-5 15 15...
  • Page 18 Item No. Description Item No. Description A16005 Head & door assembly SSS15 Set screw -18 ´ cup point A16006 Head door assembly 112-212 Waved washer A16014L Head door hinge assembly, lower 16014L-1 Head door hinge – short pin 116KS Saw guide bar lock knob – aluminum head 14GP Head door hinge pin, 1 "...
  • Page 19 Item No. Description HHS005S Hex head screw, 8-32 ´ HHS010S Hex head screw, 10-32 ´ HN05S Hex nut 8-32 SS HN35S Hex nut -16 SS S16335X Upper wheel hinge plate, SS S229 Wheel cleaner arm torsion spring, SS S244 Wheel cleaner arm stud, SS S253 Upper wheel aligning screw, SS S295...
  • Page 20 Item No. Description A19-1 Ratchet assembly FW07S Flat washer, HHS040S Hex head screw, -20 ´ ¾ SS HN15S Hex nut, -20 SS HN35S Hex nut, -16 SS LW10S Lock washer, SS Ratchet trigger SS S189 Ratchet arm stud SS Ratchet base SS 10-1 Ratchet arm 19CB...
  • Page 21 Item No. Description A16Z Guide bracket saw cleaner assembly A295 Wheel cleaner assembly AS16290 Cleaning unit total assembly FW05S Flat washer, HHS003S Trimmed hex head screw 8-32 ´ , SS HHS005S Hex head screw, 8-32 ´ HHS035S Hex head screw, -20 ´...
  • Page 22 Item No. Description Item No. Description A415D Stationary bar assembly A130 Saw cleaner assembly HN15S Hex nut -20 SS A16132 Steel cleaner assembly, rear LW10S Lock washer, HHS003S Trimmed hex head screw 8-32 ´ , SS S268 Stationary bar headless screw HHS025S Hex head screw, -20 ´...
  • Page 23 STANDARD 3334 MEAT CARRIAGE & CHANNEL Item No. Description Item No. Description A16155 Meat carriage assembly complete 16155 Meat carriage top & angle only A175S Thumb guard assembly 16155-2A Meat carriage guide FW05S Flat washer, 16155-2B Meat carriage guide spacer,...

  • Page 24: Parts Diagrams, Series 4003 Carriage & Channel

    OPTIONAL 3334 EZ FLOW MEAT CARRIAGE & CHANNEL Item No. Description Item No. Description A16155EZ Meat carriage assembly complete – EZ Flow S155EZ-3 Hex stand-off, EZ Flow carriage A175S Thumb guard assembly 16155EZ Meat carriage top & angle only FW05S...
  • Page 25 STANDARD 3334-4003 EZ FLOW MEAT CARRIAGE & CHANNEL ALSO OPTIONAL ON ALL OTHER 3334 Item No. Description Item No. Description S181155AEZ Carriage bearing angle plate A175S Thumb guard assembly S18155EZ-1 Carriage top w/weld studs A181155EZ Meat carriage assembly, EZ Flow...

  • Page 26: Motor Cover Applications

    360B-1 Set screw, ½-13 SS The Model 3334 Lower Removable Wheel has been revised to include a keyway in the bore. Also an anti-rotation pin is now pressed into the lower shaft to prevent any in- advertent "spinning" of the wheel on the shaft.

  • Page 27: Lower Removable Wheel Installation And Removal Instructions

    LOWER REMOVABLE WHEEL INSTALLATION AND REMOVAL INSTRUCTIONS FOR MODEL 3334SS ALWAYS Turn Off, Unplug From Power Source and Perform Lockout/Tagout Procedure to the Machine BEFORE Cleaning or Servicing. Follow disassembly procedures in the Cleaning Section of the Operating and Service Manual. Removal of the Lower Wheel will be the last procedure.

  • Page 28: Switch Assemblies And Service Parts

    A609AAW-16 SWITCH ASSEMBLY Item No. Description A16226A Green/red switch button assembly w/springs A609AAW-16 Switch assembly, 1 & 3 ph less heater coils H462 Guard for switch toggle H462A Guard assembly for switch toggle H462-1 Trim ferrule, SS HHS010S Hex head screw, 10-32 ´ HHS070S Hex head screw, -16 ´...
  • Page 29 WATERTIGHT MAGNETIC SWITCH ASSEMBLIES (AEG) INCLUDES MOUNTING BRACKET AND WIRES Item No. Description Item No. Description A22616AE-506 BAEG/PC-PB/C6, 1 A22616AE-526 BAEG/PC-PB/C17, 2HP, 230-60-1 208/220/230-50/60-3 A22616AE-530 BAEG/PC-PB/F2.8, 2HP, 550-60-3 A22616AE-514 BAEG/PC-PB/C8, 2HP, A22616AE-534 BAEG/PC-PB/E6, 3HP, 440/460-60-3 208/220/230-50/60-3 A22616AE-536 BAEG/PC-PB/D8, 3HP, 380/415-50-3 A22616AE-516 BAEG/PC-PB/E4, 1 HP, 440/460-3...

  • Page 30: Wiring Diagrams

    – 115 Volt with 7 Motor Leads – Model 3334 Schematic Using 3-Pole Stromberg or AEG W.T. Switch for 115 Volts, Single Phase, 60 Cycle Baldor Motor with 7 Motor Leads TO ELIMINATE BREAKING EFFECT OF MOTOR AFTER STOP IS ENGAGED *To Reverse Rotation Interchange Leads 5 &...

  • Page 31: Wiring Diagrams

    – 230 Volt with 7 Motor Leads – Model 3334 Schematic Using 3-Pole Stromberg or AEG W.T. Switch for 230 Volts, Single Phase, 60 Cycle Baldor Motor with 7 Motor Leads TO ELIMINATE BREAKING EFFECT OF MOTOR AFTER STOP IS ENGAGED *To Reverse Rotation Interchange Leads 5 &...

  • Page 37: Parts List/Ordering

    Hex nut, -20, SS S16335X Upper wheel hinge plate, SS HN20S Hex nut, -18, SS S181155AEZ Meat carriage angle, EZ flow (3334-4003 only) HN25 Hex nut, ´ 16 S18155EZ-1 Carriage top w/weld studs (3334-4003 only) HN25S Hex nut, -16, SS...

  • Page 38: Notes

    MODEL 3334 PARTS NUMBERS AND DESCRIPTIONS (Cont.) Item No. Description Item No. Description S268 Stationary bar hdless screw, SS 16517 Inner race spacer S295 16543 Lower shaft, removable wheel Wheel cleaner arm, stainless S325 Wheel cleaner washer, SS 16547 Lower brg. hsg. removable wheel...

  • Page 39: Parts Assemblies List / Ordering

    MODEL 3334 PARTS NUMBERS AND DESCRIPTIONS (Cont.) Item No. Description *NOTE Stainless steel (S12214) side platter kits available before Ser. No. 24464 — check with Biro Service 71-1 Upper wheel hinge bracket SS Dept. Saw guard safety decal Decal, “Blade Tension”...

  • Page 40: Wearable Saw Parts

    WEARABLE SAW PARTS THAT WILL FIT BIRO POWER CUTTERS MODELS 11-22-1433-33-34-3334-44-4436-55 — EXCEPT WHERE NOTED OTHERWISE — CONTACT YOUR NEAREST BIRO AUTHORIZED DISTRIBUTOR OR CONTACT BIRO MANUFACTURING Ph.: 419-798-4451 E.Mail: service@birosaw.com...

  • Page 41: Warning Label Locations On Machine

    WARNING LABEL LOCATIONS ON MACHINE...

  • Page 43: Operator's Signature Page

    OPERATOR’S SIGNATURE PAGE MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL. I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SERIOUS INJURY TO MYSELF AND OTHERS. SUPERVISOR’S NAME (PRINT) SIGNATURE DATE INITIALS...

  • Page 44: Limited Warranty

    The warranty card must be returned to The Biro Manufacturing Com- pany for proper registration. If no warranty card is returned to BIRO, the warranty period will begin from the date the machine was originally shipped from the factory.

This manual is also suitable for:

4003 series
