– 115 Volt with 7 Motor Leads –
Model 3334 Schematic Using 3-Pole Stromberg or AEG W.T. Switch
for 115 Volts, Single Phase, 60 Cycle Baldor Motor with 7 Motor Leads
TO ELIMINATE BREAKING EFFECT OF MOTOR AFTER STOP IS ENGAGED

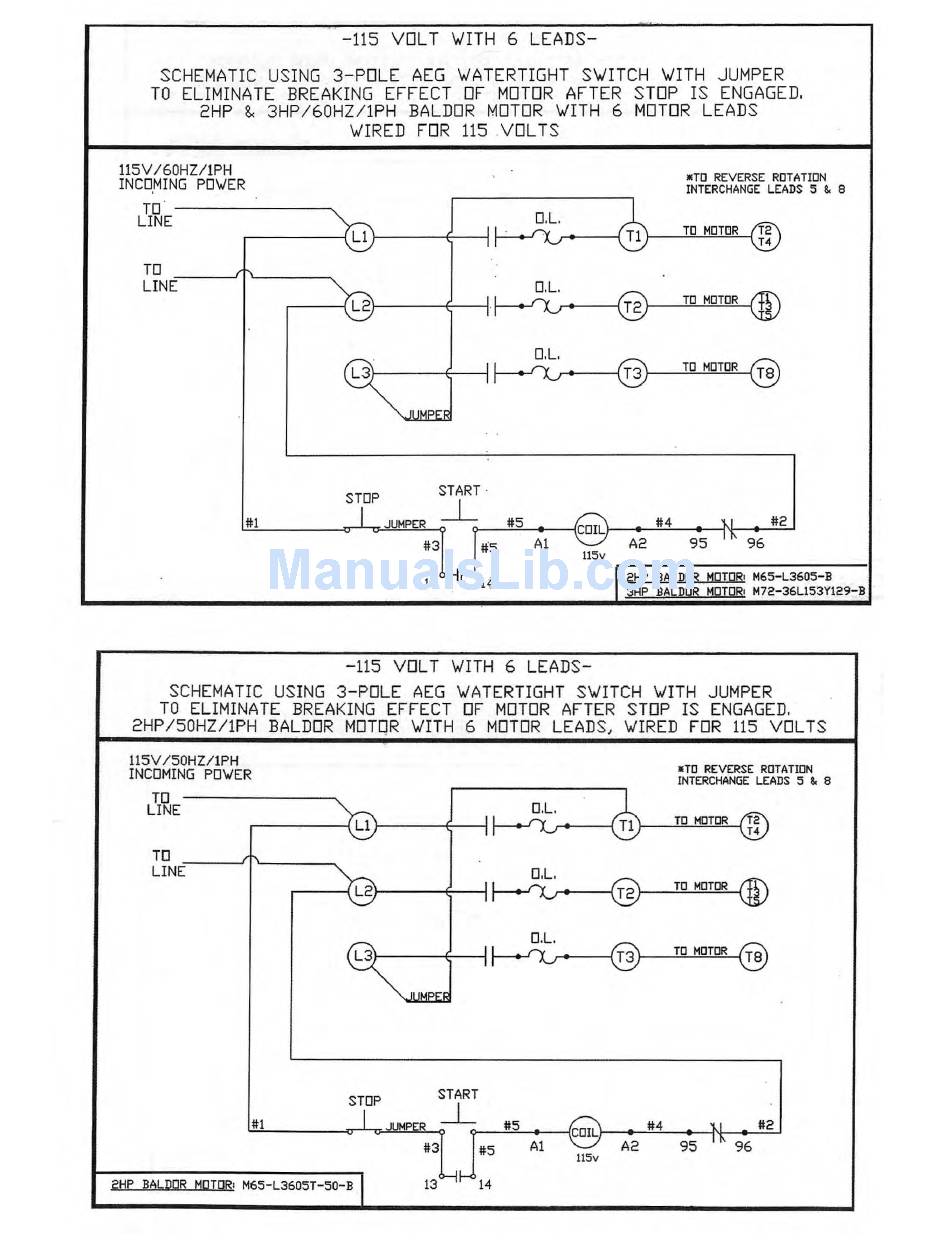

– 115 Volt with 6 Motor Leads –
Model 3334 Schematic Using 3-Pole Stromberg or AEG W.T. Switch
for 115 Volts, Single Phase, 60 Cycle Baldor Motor with 6 Motor Leads
TO ELIMINATE BREAKING EFFECT OF MOTOR AFTER STOP IS ENGAGED
28
*To Reverse Rotation
Interchange Leads 5 & 8
*To Reverse Rotation
Interchange Leads 5 & 8
