BIRO 3334 Operating And Service Manual page 29

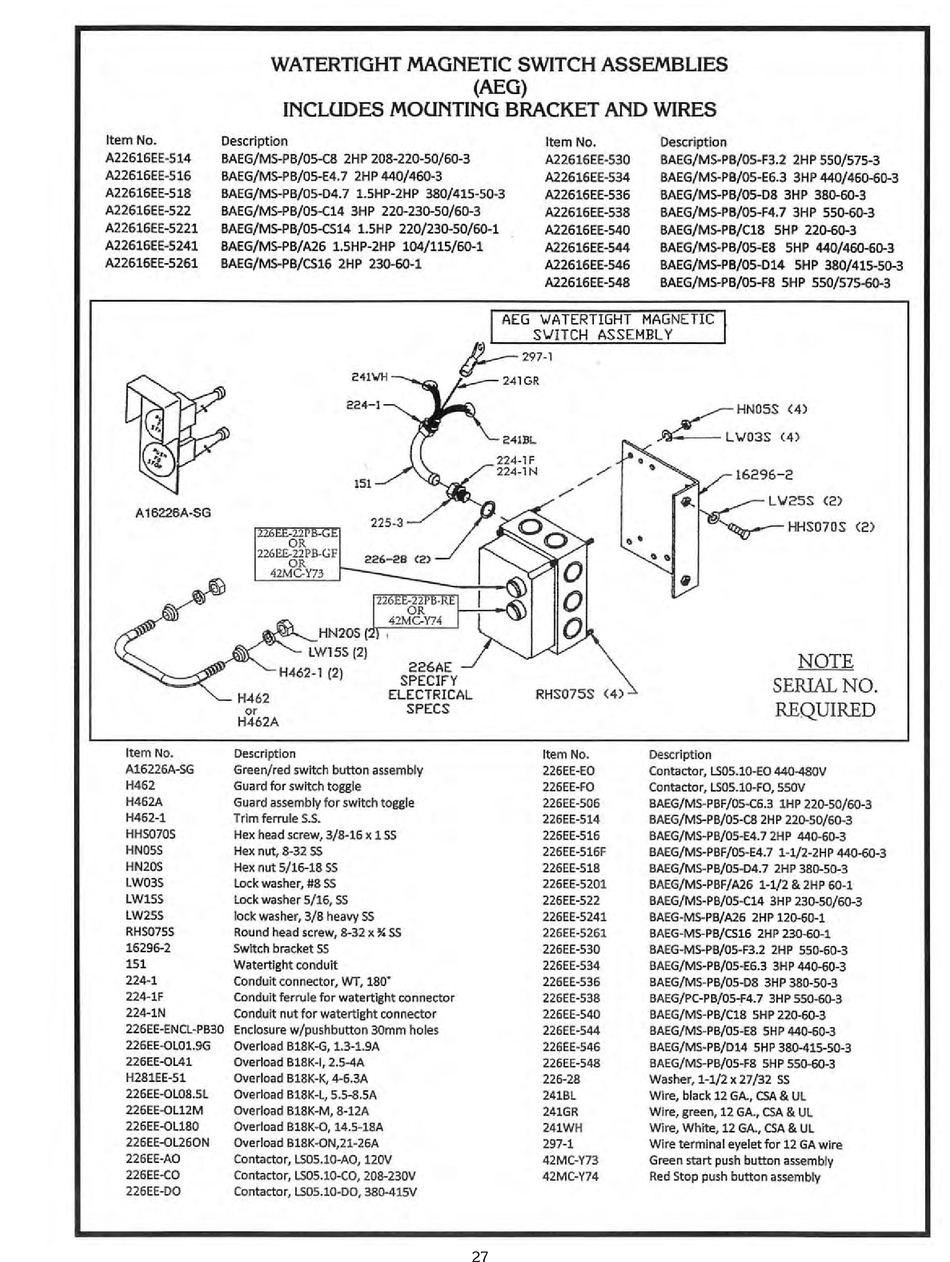

WATERTIGHT MAGNETIC SWITCH ASSEMBLIES
INCLUDES MOUNTING BRACKET AND WIRES
Item No. Description
A22616AE-506 BAEG/PC-PB/C6, 1
208/220/230-50/60-3
A22616AE-514 BAEG/PC-PB/C8, 2HP,
208/220/230-50/60-3
A22616AE-516 BAEG/PC-PB/E4, 1
A22616AE-518 BAEG/PC-PB/D6, 1
2HP, 380/415-50-3
A22616AE-520 BAEG/PC-PB/A23, 1
A22616AE-522 BAEG/PC-PB/C12, 1
208/220/230-50/60-1
A22616AE-524 BAEG/PC-PB/A32, 2HP, 115-60-1
Item No. Description
A16226A-SG Green/red switch button assembly
H462 Guard for switch toggle
H462A Guard assembly for switch toggle
H462-1 Trim ferrule S.S.
HHS070S Hex head screw,
HN05S
Hex nut, 8-32 SS
HN20S Hex nut 5 -18 S.S.
16
LW03S Lock washer, #8 SS
LW15S Lock washer
LW25S Lock washer,
RHS075S Round head screw, 8-32 ´
16296-2 Switch bracket SS
151 Watertight conduit
224-1 Conduit connector, WT, 180°
224-1F Conduit ferrule for watertight connector
224-1N Conduit nut for watertight connector
226AE-ENCL-PB Enclosure with button holes
226AE-0L02H Overload, B17S-H (1.8-2.8)
226AE-0L04I Overload, B17S-I (2.8-4)
226AE-0L06K Overload, B17S-K (4.6)
226AE-0L08L Overload, B17S-L (5.6-8)
226AE-0L12M Overload, B17S-M (8-12)
226AE-0L17N Overload, B17S-N (11-17)
226AE-0L23O Overload, B17S-O (15-23)
226AE-0L32P Overload, B17S-P (22-32)
226AE-A0 Contactor, SP17.10-A0, 110V
226AE-C0 Contactor, SP17.10-C0, 208/220/230V
(AEG)
1 HP,
2
HP, 440/460-3
1
2
1 HP, 380/415-50-3;
2
HP, 104/115-50/60-1
1
2
1 HP & 3HP,
2
3 -16 ´ 1 SS
8
S.S.
5
16
3 heavy SS
8
3 SS
4
27
Item No. Description
A22616AE-526 BAEG/PC-PB/C17, 2HP, 230-60-1
A22616AE-530 BAEG/PC-PB/F2.8, 2HP, 550-60-3
A22616AE-534 BAEG/PC-PB/E6, 3HP, 440/460-60-3
A22616AE-536 BAEG/PC-PB/D8, 3HP, 380/415-50-3
A22616AE-538 BAEG/PC-PB/F4, 3HP, 550-60-3
A22616AE-540 BAEG/PC-PB/C23, 5HP,
208/220/230-50/60-3
A22616AE-543 BAEG/PC-PB/E8, 5HP, 440-60-3
A22616AE-546 BAEG/PC-PB/D12, 5HP, 380/415-50-3
A22616AE-548
BAEG/PC-PB/F8, 5HP, 550-60-3
Item No. Description
226AE-D0 Contactor, SP17.10-D0, 380/415V
226AE-E0 Contactor, SP17.10-E0, 440V
226AE-F0 Contactor, SP17.10-F0, 550V
226AE-506 BAEG/PC-PB/C6
226AE-514 BAEG/PC-PB/C8
226AE-516 BAEG/PC-PB/E4
226AE-518 BAEG/PC-PB/D6
226AE-520 BAEG/PC-PB/A23
226AE-522 BAEG/PC-PB/C12
226AE-524 BAEG/PC-PB/A32
226AE-526 BAEG/PC-PB/C17
226AE-530 BAEG/PC-PB/F.28
226AE-534 BAEG/PC-PB/E6
226AE-536 BAEG/PC-PB/D8
226AE-538 BAEG/PC-PB/F4
226AE-540 BAEG/PC-PB/C23
226AE-543 BAEG/PC-PB/E8
226AE-546 BAEG/PC-PB/D12
226AE-548
BAEG/PC-PB/F8
226-28 Washer, 1
1
´
2
241BL Wire, black, 12 GA., CSA & UL
241GR Wire, green, 12 GA ., CSA & UL
241RD Wire, red, 12 GA., CSA & UL
241WH Wire, white, 12 GA., CSA & UL
297-1 Wire terminal eyelet for 12 Ga. wire
42MC-Y73 Green start push button assembly
42MC-Y74 Red stop push button assembly
SS
27
32
