Lower Removable Wheel Installation And Removal Instructions - BIRO 3334 Operating And Service Manual

INSTALLATION AND REMOVAL INSTRUCTIONS
ALWAYS Turn Off, Unplug From Power Source and Perform Lockout/Tagout Procedure to the
Machine BEFORE Cleaning or Servicing.
Follow disassembly procedures in the Cleaning Section of the Operating and Service Manual.
Removal of the Lower Wheel will be the last procedure.
REMOVAL

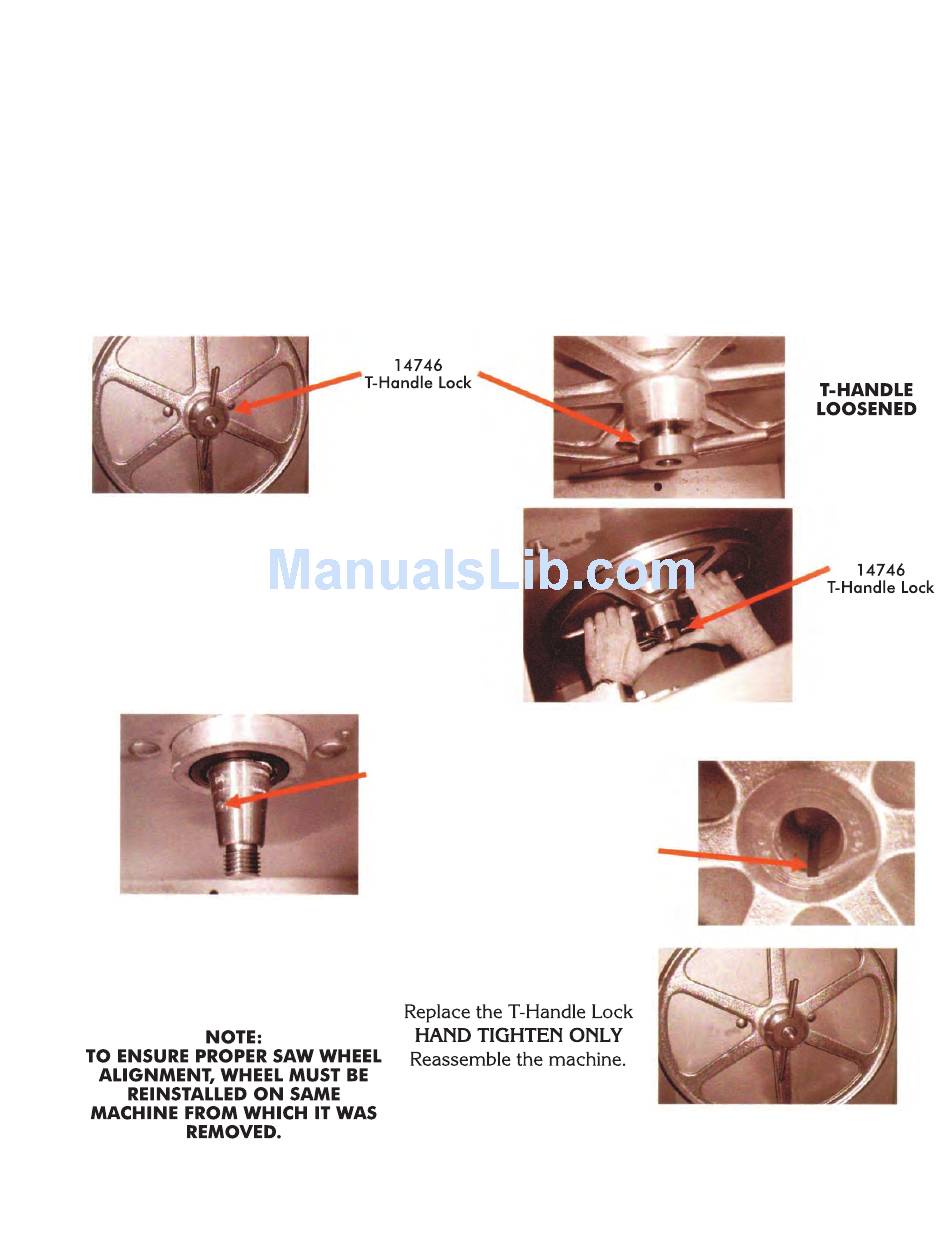

Loosen the Item No. 14746 T-Handle Lock, DO NOT REMOVE COMPLETELY FROM SHAFT.
Using thumbs for leverage, pull wheel toward
you with an even-smooth motion. Wheel is
mounted in slip fit fashion on a tapered shaft.
When the wheel is loose, complete removing
T-handle lock and wheel.
LOWER REMOVABLE WHEEL
FOR MODEL 3334SS
INSTALLATION
There is an alignment pin on
the lower shaft. And a mating
alignment groove in the hub of
the lower wheel. Align the two
as the wheel is being installed
on the tapered shaft.
25
