BIRO 3334 Operating And Service Manual page 25

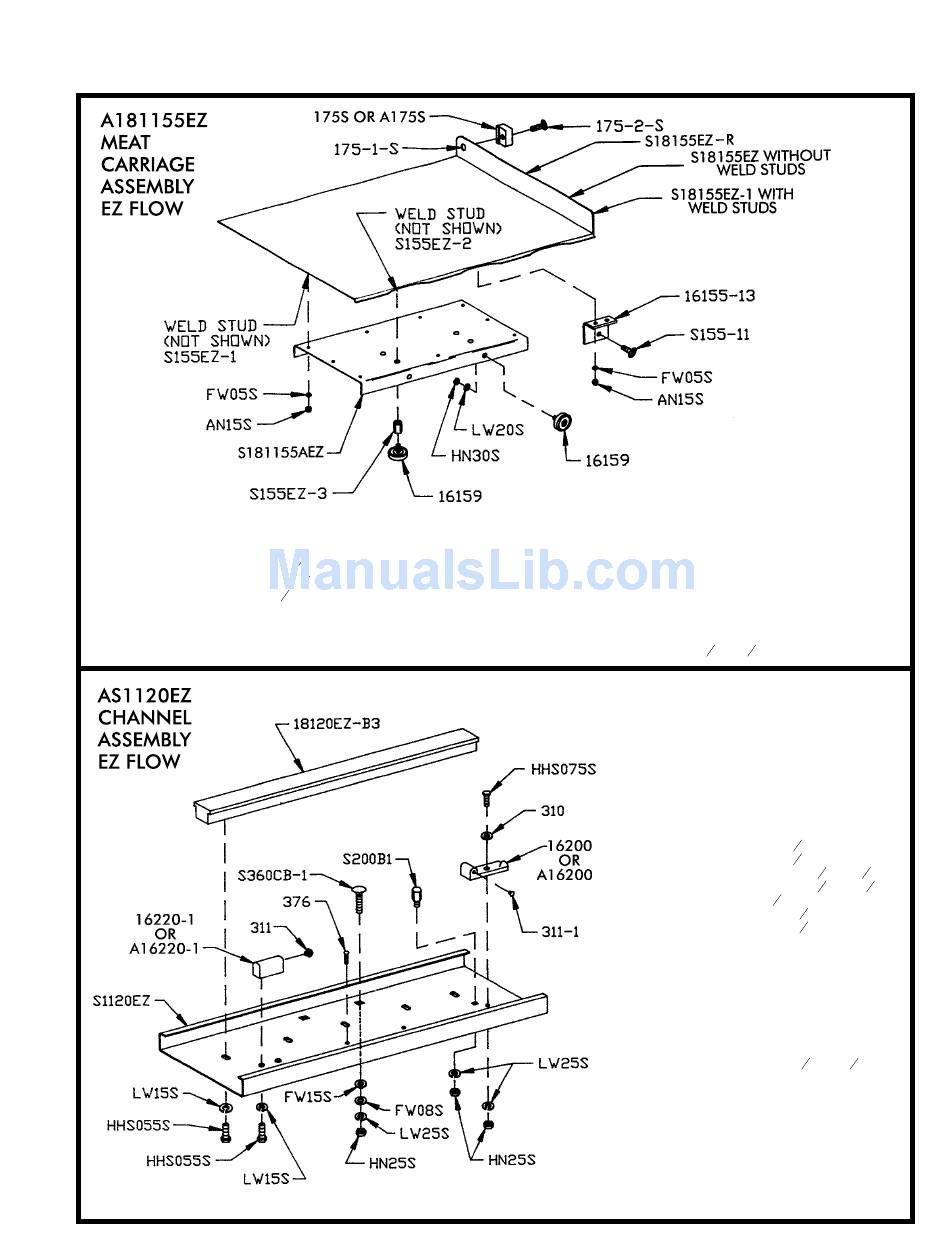

STANDARD 3334-4003 EZ FLOW MEAT CARRIAGE & CHANNEL
ALSO OPTIONAL ON ALL OTHER 3334
Item No. Description
A175S Thumb guard assembly
A181155EZ Meat carriage assembly, EZ Flow
AN15S Acorn nut, 1
4
FW05S Flat washer, 1
HN30S Hex nut, -16 light jam
3
8
LW20S Lock washer, light
S155-11 Carriage stop thumb screw
S155EZ-1 Weld stud – NSS
S155EZ-2 Weld stud – NSS
-20
4
23
Item No. Description
S181155AEZ Carriage bearing angle plate
S18155EZ-1 Carriage top w/weld studs
S18155EZ Carriage top without weld studs
S18155EZ-R Raw meat carriage top only (DNS)
S155EZ-3 Hex stand-off
16155-13 Carriage top angle SS
16159 Carriage bearing
175S Thumb guard
175-1-S Thumb guard nut
175-2-S Thumb screw
Item No.
A16200
A16220-1
AS1120EZ
FW08S
FW15S
HHS055S
HHS075S
HN25S
LW15S
LW25S
S1120EZ
16200
16220-1
18120EZ-B3
310
311
311-1
376
S200B1
S360CB-1
NOT SHOWN
S1007
-20 ´
1 1
4 2
Description
Carriage stop assembly,
movable
Carriage stop assembly, fixed
Channel assembly, EZ Flow
Flat washer,
3
8
Flat washer, 1
2
Hex head screw, 5 -18 ´ 3
16 4
Hex head screw, 3 -16 ´ 1 1
8 4
Hex nut, 3 -16
8
Lock washer,
5
16
Lock washer, 3
8
Channel, EZ Flow
Carriage stop, movable
Carriage stop, fixed
Carriage guide bar, EZ Flow
Waved washer
Rubber bumper, fixed stop
Rubber bumper, movable stop
Drive screw 10 ´ ½ SS
Stop stud, SS
Carriage bolt, -16 ´ 1
3 1
8 4
Channel bracket, SS
