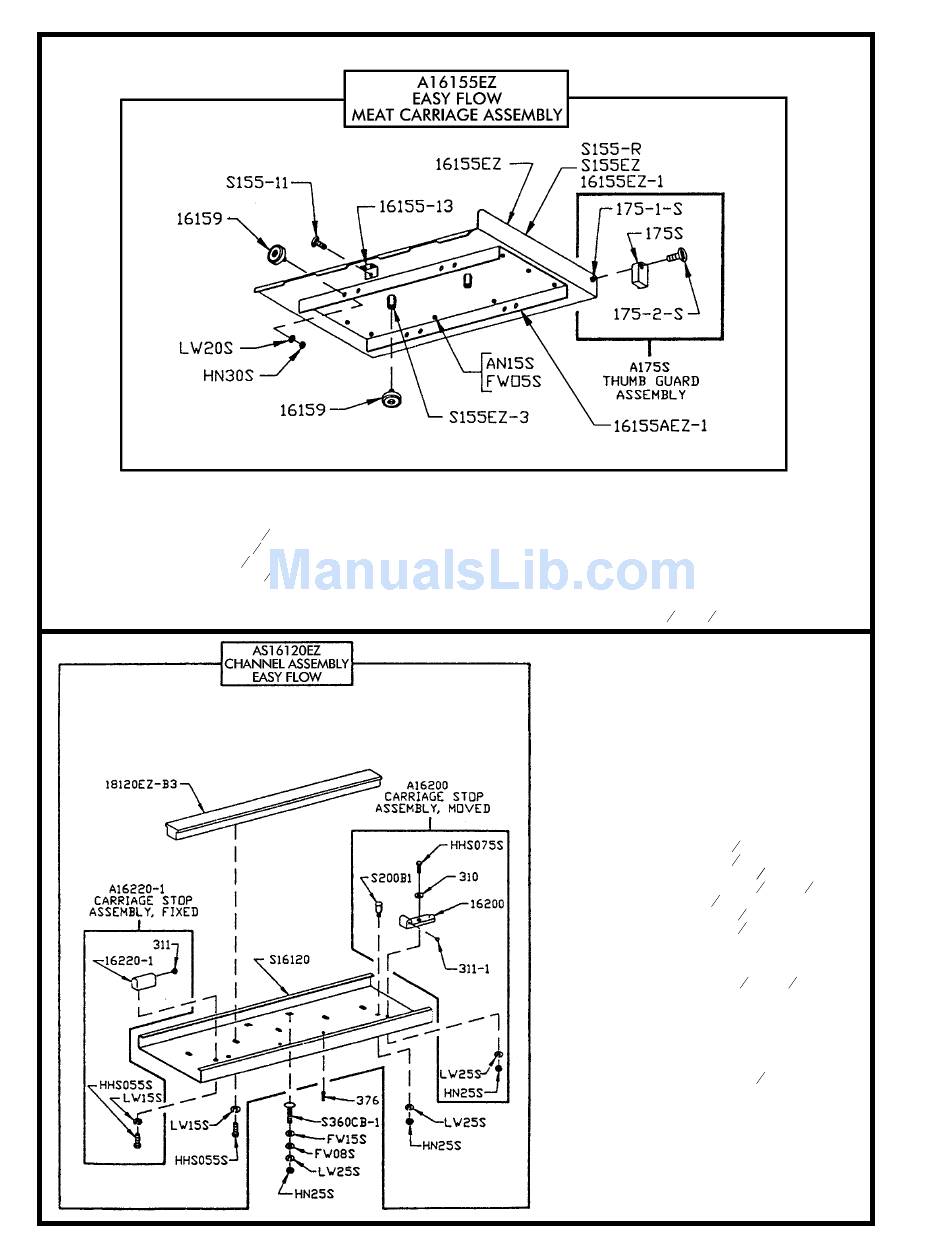

OPTIONAL 3334 EZ FLOW MEAT CARRIAGE & CHANNEL
Item No. Description
A16155EZ Meat carriage assembly complete – EZ Flow
A175S Thumb guard assembly
FW05S Flat washer,
AN15S Acorn nut, 1
4
HN30S Hex nut, 3 -16 light jam SS
8
LW20S Lock washer
S155-11 Meat carriage stop thumb screw
S155-R Raw meat carriage top only (DNS)
S155EZ Meat carriage top only (NSS)
SS
1
4
-20 SS
regular SS
3
8
Item No. Description
S155EZ-3 Hex stand-off, EZ Flow carriage
16155EZ Meat carriage top & angle only
16155EZ-1 Meat carriage top only w/weld studs (DNS)
16155-13 Carriage stop angle SS
16155AEZ-1 Meat carriage angle plate
16159 Meat carriage bearing SS
175S Thumb guard,nylon
175-1-S Thumb guard nut SS
175-2-S Thumb screw
Item No.
A16200
A16220-1
AS16120EZ
FW08S
FW15S
HHS055S
HHS075S
HN25S
LW15S
LW25S
S16120
S200B1
S360CB-1
16200
16220-1
18120EZ-B3
310
311
311-1
376
22
1 -20 ´ 1 , SS
4 2
Description
Carriage stop assembly, movable
Carriage stop assembly, fixed
Channel assembly, 37" – EZ Flow
Flat washer, 3 SS
8
Flat washer, 1 SS
2
Hex head screw, -18 ´ ¾ SS
5
16
Hex head screw, 3 -16 ´ 1 1 SS
8 4
Hex nut, 3 -16 SS
8
Lock washer, SS
5
16
Lock washer, 3 SS
8
Channel, 37" SS
Stop stud SS, guide bar &
carriage stop
Carriage bolt, -16 ´ 1 SS
3 1
8 4
Carriage stop, movable
Carriage stop, fixed
Guide bar – EZ Flow
Waved washer
Rubber bumper, fixed stop
Rubber bumper, movable stop
Drive screw 10 ´ 1 SS
2
