BIRO 3334 Operating And Service Manual page 19

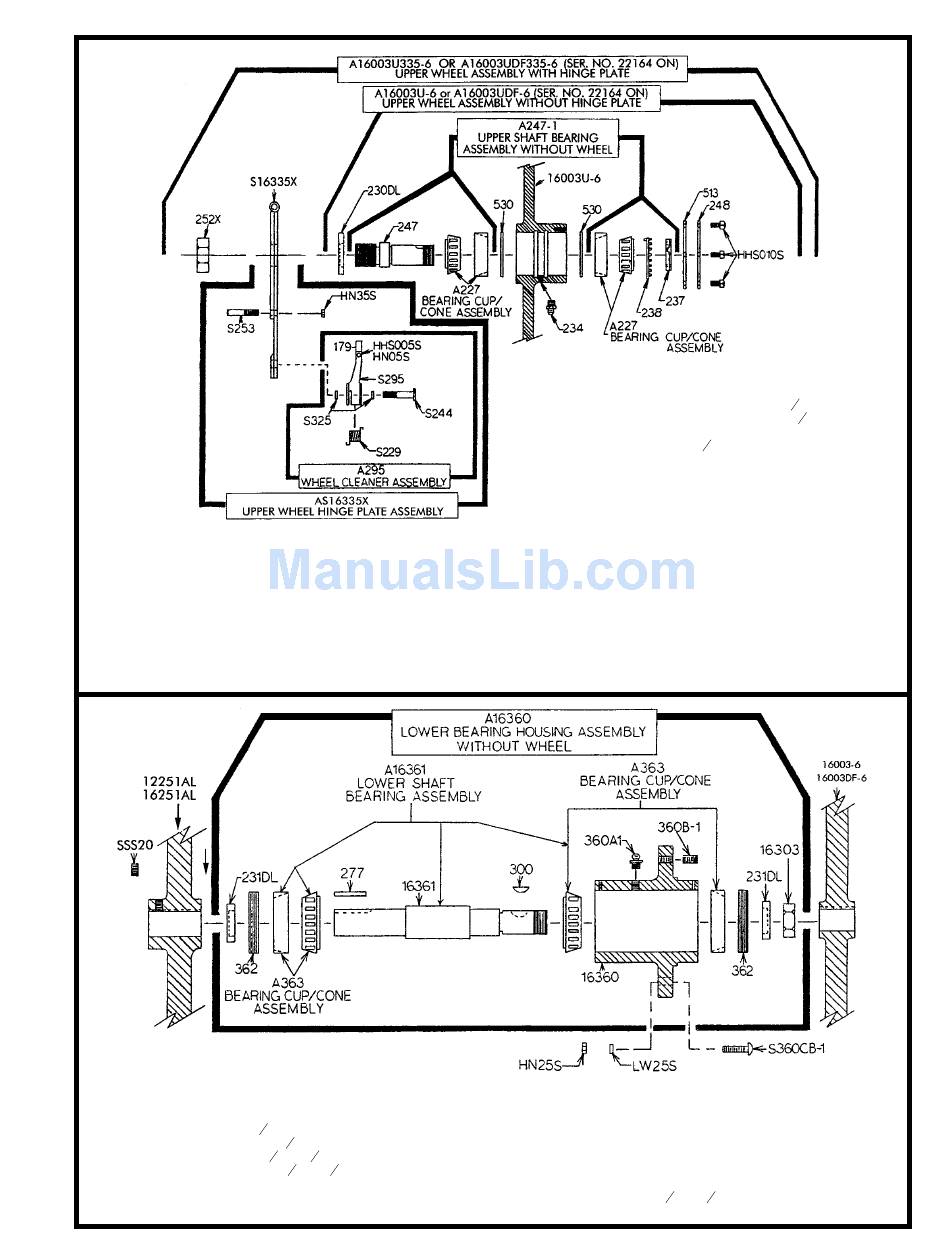

Item No. Description
A16003U-6 Upper wheel assembly without hinge plate
A16003U335-6 Upper wheel assembly with hinge plate
A16003UDF-6 Upper double flange wheel assembly without hinge plate
A16003UDF335-6 Upper double flange wheel assembly with hinge plate
A247-1 Upper shaft bearing assembly
AS16335X Upper wheel hinge plate assembly
A227 Bearing cup/cone assembly
A295 Wheel cleaner assembly
Item No. Description
A16360 Lower bearing housing assembly without
wheel
A16361 Lower shaft bearing assembly
A363 Bearing cup/cone assembly
HN25S Hex nut, 3 -16 SS
8
LW25S Lock washer,
SSS20 Set screw, 3
8
S360CB-1 Carriage bolt,
12251AL Upper V-belt pulley 9 ´ 1 AL
16003-6 Lower wheel 16", 6 spoke
16003DF-6 Lower double flange wheel 16², 6-spoke
SS
3
8
-16 ´ 3 cup point
8
3 -16 1 1 SS
8 4
Item No.
HHS005S
HHS010S
HN05S
HN35S
S16335X
S229
S244
S253
S295
S325
16003U-6
179
230DL
234
237
238
247
248
252X
513
530
16251AL Upper v-belt pulley, 11.4 ´ 1 AL
16303 Lower shaft nut
16360 Lower bearing housing
16361 Lower shaft
231DL Lower shaft seal, double lip
277 Lower shaft key
300 Lower shaft Woodruff key
360A1 Grease fitting
360B-1 Set screw,
362 Lower bearing housing adj. cap
17
Description
Hex head screw, 8-32 ´ SS
1
2
Hex head screw, 10-32 ´ 3 SS
8
Hex nut 8-32 SS
Hex nut 3 -16 SS
8
Upper wheel hinge plate, SS
Wheel cleaner arm torsion spring, SS
Wheel cleaner arm stud, SS
Upper wheel aligning screw, SS
Wheel cleaner arm, SS
Wheel cleaner washer, SS
Upper wheel, 16", 6 spoke
Wheel cleaner
Upper shaft seal, double lip
Grease fitting, upper wheel
Upper shaft castellated lock nut
Upper shaft castellated lock nut washer
Upper shaft
Upper wheel hub cap
Shaft lock nut
Upper wheel hub gasket
Retaining ring (2 req.)
1 -13 ´ 1 flat point
2 2
