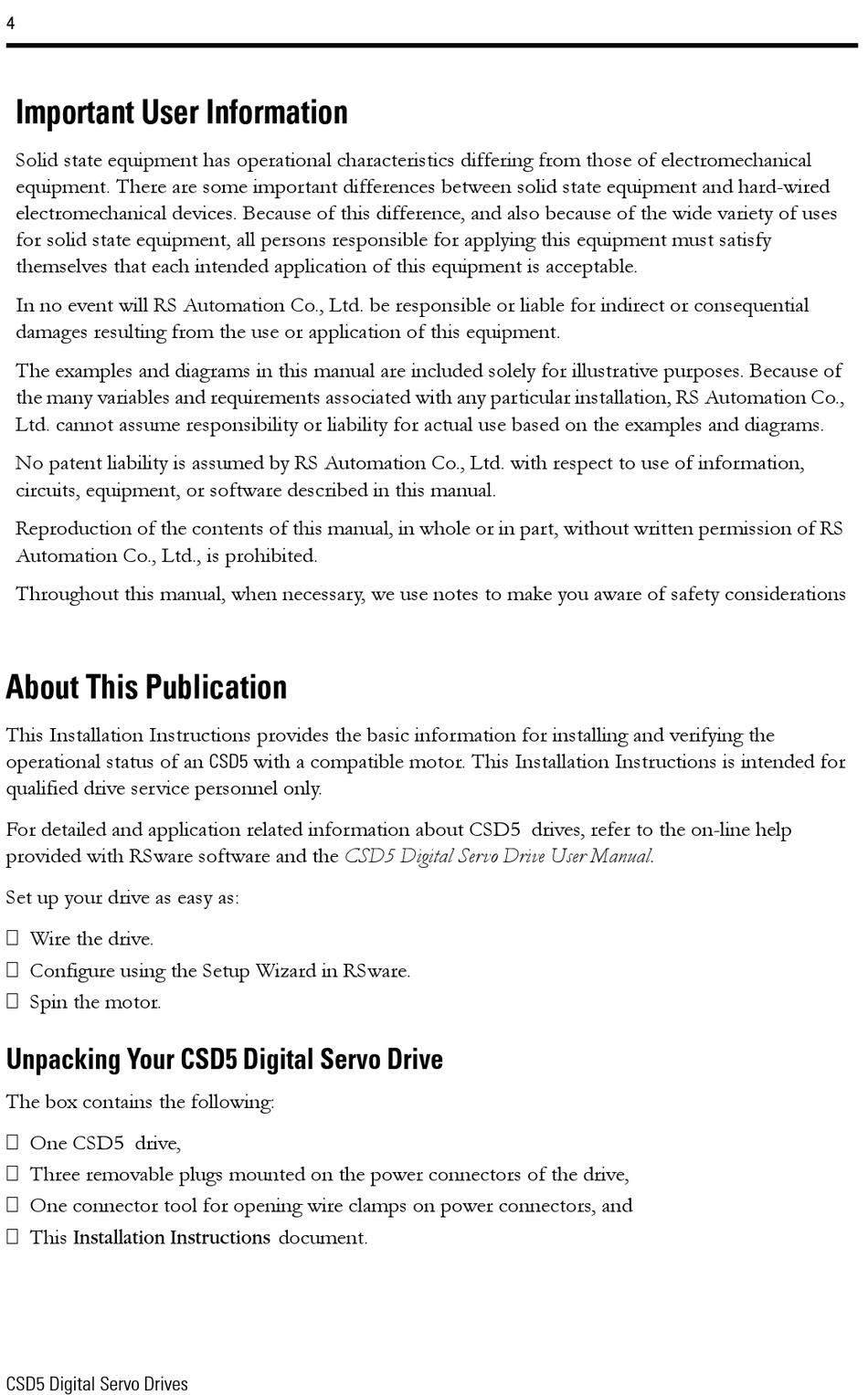

Important User Information
Solid state equipment has operational characteristics differing from those of electromechanical
equipment. There are some important differences between solid state equipment and hard-wired
electromechanical devices. Because of this difference, and also because of the wide variety of uses
for solid state equipment, all persons responsible for applying this equipment must satisfy
themselves that each intended application of this equipment is acceptable.
In no event will RS Automation Co., Ltd. be responsible or liable for indirect or consequential
damages resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of
the many variables and requirements associated with any particular installation, RS Automation Co.,
Ltd. cannot assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by RS Automation Co., Ltd. with respect to use of information,
circuits, equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of RS
Automation Co., Ltd., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations
About This Publication
This Installation Instructions provides the basic information for installing and verifying the
operational status of an
qualified drive service personnel only.
For detailed and application related information about CSD5 drives, refer to the on-line help
provided with RSware software and the CSD5 Digital Servo Drive User Manual.
Set up your drive as easy as:
Wire the drive.
Configure using the Setup Wizard in RSware.
Spin the motor.
Unpacking Your CSD5 Digital Servo Drive
The box contains the following:
One CSD5 drive,
Three removable plugs mounted on the power connectors of the drive,
One connector tool for opening wire clamps on power connectors, and
This Installation Instructions document.
CSD5 Digital Servo Drives
with a compatible motor. This Installation Instructions is intended for
CSD5
