Page 1: Warranty And Service

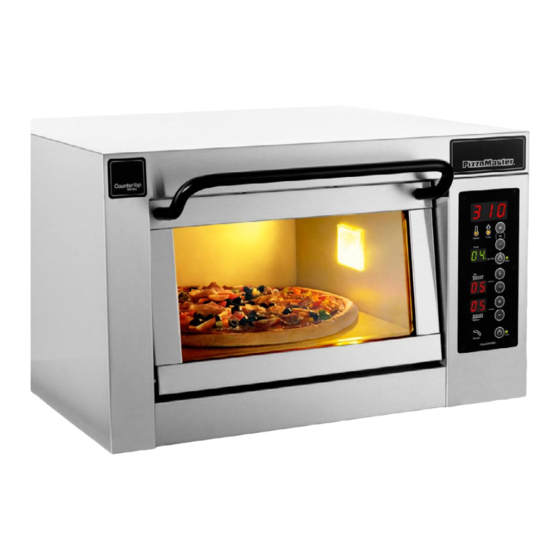

Instruction for installation, operation and maintenance Counter Top Ovens PM 351ED PM 401ED PM 451ED PM 351ED-1 PM 401ED-1 PM 451ED-1 PM 352ED PM 402ED PM 452ED PM 352ED-1 PM 402ED-1 PM 452ED-1 PM 352ED-2 PM 402ED-2 PM 452ED-2 Rev. 2008/06... -
Page 2: Table Of Contents
Index Index Page Serial No / Oven rating plate ............. 1 Warranty and service ..............2 Index ..................3 Technical data ................4 Electrical connection ..............5 Positioning the oven ..............5 First-time start-up of oven ............5 Display ..................6 Care and Maintenance .............. -
Page 3: Technical Data
No. of Power kW Model Width x Depth x Height Decks External Internal (per deck) PM 351ED 355 x 355 x 195 595 x 530 x 430 PM 351ED-1 355 x 355 x 85 PM 352ED 355 x 355 x 195... -
Page 4: Electrical Connection
3 mm gape of at least 3 mm for each power supply cable. Power and fuse ratings per oven Modell 230V 1N 400V 3N 50/60HZ 50/60HZ PM 351ED 3/10A PM 351ED-1 3/10A Before connecting the oven see the ovens rating plate PM 352ED 20A* 3/10A... -
Page 5: Display
Display This appliances is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervi- sory or instruction concerning use of the appliance by a person responsible for their safety. Children shall be supervised to ensure they not play with the appliance... - Page 6 Display Display - Instruction Oven mode - ON / OFF Timer Place the oven in desired mode by pressing Timer function can be set in two different modes. For setting individual baking/roasting times (normal ON: The display is active and the oven lights is on. mode) or common baking times (auto mode) The timer display shows whole minutes.
-
Page 7: Care And Maintenance
Care and Maintenance Care and maintenance Changing an oven lamp A well maintained oven lasts longer and looks like new 1. Turn the oven off. for a long time. We recommend cleaning and servicing 2. Loosen the lamp glass. (Stick a small screwdriver in your oven as follows: the small gap at the lamp glass short side and press gentle to loosen the glass) -
Page 8: Oven Settings
Oven settings Base settings Pizza baked directly Pizza baked We suggest using the recommended base-settings to on hearthstone in pan begin with. Then, as you gain experience with the oven, Temperature 300 °C 300 °C you can experiment with different thermostat and heat- control settings until you find the optimum settings for your brand of pizza. -
Page 9: Trouble Shooting
Trouble shooting The table below will help to make baking easier, simplify adjustments of the oven and help in the event of problem. If solution is not found please contact your nearest PizzaMaster® distributor or contact our service department. Symptom...
