Atag VA9011ZT Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ATAG VA3..
VA9011ZT / XT
VA(9)6211Q /R/S/T

Advertisement

loading
Need help?

Need help?

Do you have a question about the VA9011ZT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atag VA9011ZT

Summary of Contents for Atag VA9011ZT

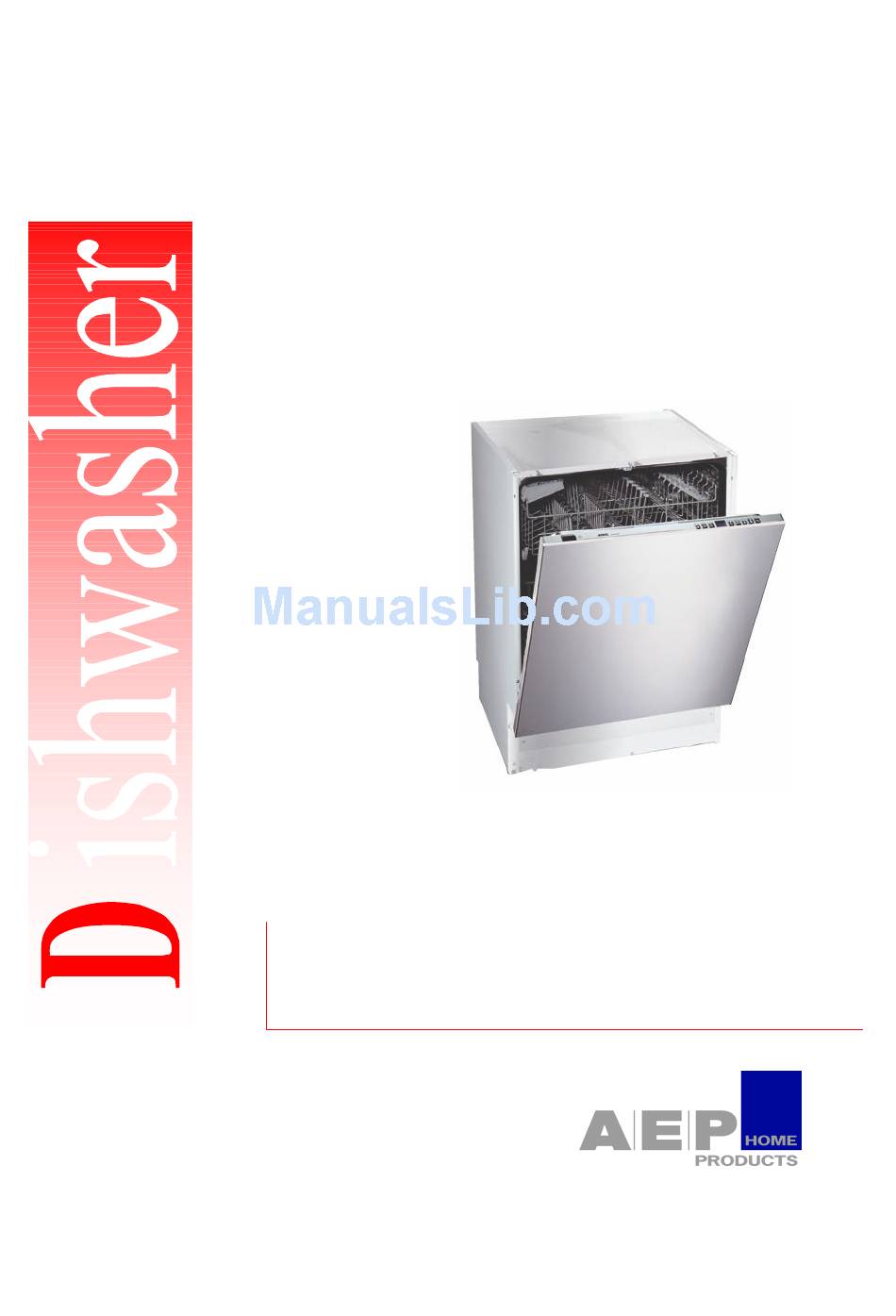

  • Page 1 ATAG VA3.. VA9011ZT / XT VA(9)6211Q /R/S/T...
  • Page 2 General information The machine may be connected to a hot water tap upto 60 °C. For cleaner and dryer results however, it is advised to connect the machine to a cold water tap Maximum heigth 90 cm with extension 80 cm a =1,3 m b=1,6 m c =1,4 m (3,6 m with extension set)
  • Page 3 Aquasensor II By means of the Aqua sensor it is decided whether or not the rinsing water will be used for the next rinsing cycle. Receiver The Aqua sensor II has two LED’s v Red LED (measures turbidity) v Green LED (measures soil remains) Because of this, more soiling (like tea or spinach) will be recognized .

  • Page 4: Fully Integrated

    Panel mounting ( new ) Integrated Fully integrated Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005...
  • Page 5 Regenerating the water softener Regeneration water Flushing the softener Hard water Reg. Water Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005...
  • Page 6 Filling with non-softened water. Hard water Soft water Filling with softened water. Hard water Soft water Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005...
  • Page 7 Load recognition How it is determined whether or not water has to be added because of toppled crockery. Circulation pump with tacho and sycasym control Single phase AC motor Capacitor Tachogenerator Tacho generator Motor RPM is measured by means of a tacho generator. Speed control is applied by means of electronic phase shifting.
  • Page 8 Load recognition Tacho recognizes shortage of water because of irregular running. After levelling the machine runs quietly again Motor RPM is measured by means of a tacho generator. Speed control is applied by means of electronic phase shifting. Load recognition. •...
  • Page 9 Filling water Inlet valve Outlet valve Circulation pump After this, water supplement depends on the tacho generator (load recognition) If tap is closed: In case level F1 is not reached after 3½ minutes, the control will stay in this position. On the display the message appears: ´Check water supply´. As soon as the tap is opened, the machine will continue running the program.

  • Page 10: Soap Dispenser

    Soap dispenser Top control. Only for ST and TT Function: At the first pulse the soap dispenser is opened. Lever A is put in the position which facilitates – at the next pulses – the operation of lever B (each pulse lasting 20 seconds). Depending on the chosen amount of rinsing aid, this lever B is being activated (2 ml per pulse)
  • Page 11 Operation Touch control with IR technology Lightconductor IR-receiver IR-transmitter-LED Common problems with IR sensors Too much distance between sensor and panel Sensor comes loose Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 10 -...

  • Page 12: Selector Buttons

    Push touch control button at least 1 second. Sensors react after ~1 seconds Main switch after ~2 seconds Selector buttons Option- / store button Start button Stand-by button Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 11 -...
  • Page 13 VA(9)6211TT control soap dispenser B water renewal regeneration valve D Aquamix valve inlet valve G outlet valve circulation pump I Opto sensor drainage valve K sicasym relay L+M mains rela y N heating relay Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 12 -...
  • Page 14 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 13 -...
  • Page 15 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 14 -...
  • Page 16 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 15 -...
  • Page 17 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 16 -...
  • Page 18 Options for the service department Activating special programs 1: Open door and switch off machine. 2: Push and hold the buttons E + F. 3: After this, push button A for at least 3 seconds. 4 Select program using +/- buttons. 5: Button F activates chosen program.

  • Page 19: Special Programs

    Special programs Functional test display By pushing B C E and F all pixels of the display will lighten up. Special programs Factory test program Test program as used in factory, not relevant for service department. Special programs Factory test program Test program as used in factory, not relevant for service department.
  • Page 20 Special programs Factory test program Test program as used in factory, not relevant for service department. Special programs Showroom program Showroom program Various items are being displayed without activating any function. Special programs Error reset Resetting all errors in memory of the machine. Product information VA3..
  • Page 21 Special programs Selection of soap dispenser Possible choices soap dispenser. 1: Normal soap dispenser 2: Luxury soap dispenser on top of machine Special programs Selection water softener Optional selection of using the water softener. Once chosen for not using the water softener, this option will not longer appear in the option menu.
  • Page 22 Special program s Selection Opto sensor Does not apply for our models. Special programs Reset of the Opto sensor After changing an Opto sensor, calibrating is necessary. Use this program. Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 21 -...

  • Page 23: The Test Program

    The test program Reading of errors After activating the test program, at first all errors are being showed that occurred during the last 8 runs. S3 = test program Error K en H occurred during the last run (00) 00 = last run 01 = the run before last, etc. The test program The test program starts after closing the door.
  • Page 24 Error codes Aqua sensor calibrating error red sensor Aqua sensor calibrating error green sensor No tacho pulse Circulation pump short circuit No pulse from water hardness sensor Filling error Triac water hardness sensor short circuit Heating error - - - - - - NTC error, interrupted / short circuit Opto sensor, error or no communication ( does not apply)
  • Page 25 24 Pumping 25 Circulating 26 Pumping 27 Circulating 28 Supply of rinsing aid 29 Filling soft water + outlet valve 1 litre 30 - 36 pumping Circulating 37 Opto sensor measurement 38 Opto sensor PTC switched on 39 Pumping 00 END Info light The modelS VA6211TT and VA9211TT feature an info light Front panel...
  • Page 26 Options for the customer Time saving program: Running the time saving program the Aqua sensor is only activated during rinsing in between. Therefore, in addition to increasing the washing temperature, no pre- rinsing is applied. Drying : 1: Energy saving drying : Drying time is being decreased and temperature of rinsing aid is lowered to 55 °C 2: Standard drying :...
  • Page 27 When selecting ´automatic´ the Opto sensor determines the regeneration. The following settings can be selected by hand: Selecting language Selecting signal: Sound can be selected in seven increasing levels (standard programs without using Aqua sensor or Opto sensor e tc.). v 0 = OFF v 1 –...
  • Page 28 Electronics VA9011ZT Triac water renewal Triac actuator motor soap dispenser Triac inlet valve Triac regeneration valve Triac outlet valve Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 27 -...
  • Page 29 100 kHz transformer Relay circulation motor Buzzer Relay outlet pomp Relay heater Relay starter circulation motor Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 28 -...
  • Page 30 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 29 -...
  • Page 31 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 30 -...
  • Page 32 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 31 -...
  • Page 33 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 32 -...
  • Page 34 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 33 -...
  • Page 35 Electronics VA9011XT hard water valve A = Triac regeneration valve B = Triac C = Triac Water renewal motor E = Triac motor slot F = Triac outlet valve G = Triac soap dispenser actuator Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 34 -...
  • Page 36 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 35 -...
  • Page 37 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 36 -...
  • Page 38 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 37 -...
  • Page 39 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 38 -...
  • Page 40 Electronics VA(9)6211QT 100 kHz transformer Relay starter Relay heating Relay drainage circulation motor pump Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 39 -...
  • Page 41 Triac soap dispenser actuator Triac circulation motor Triac water renewal motor Triac regeneration Triac inlet Triac outlet valve valve valve Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 40 -...
  • Page 42 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 41 -...
  • Page 43 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 42 -...
  • Page 44 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 43 -...
  • Page 45 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 44 -...
  • Page 46 Electronics VA(9)6211ST A = Triac water renewal motor B = Triac inlet valve C = Triac hard water valve E = -- F = Triac outlet valve G = Triac soap dispenser actuator H = Triac regeneration valve Product information VA3..
  • Page 47 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 46 -...
  • Page 48 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 47 -...
  • Page 49 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 48 -...
  • Page 50 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 49 -...
  • Page 51 Electronics VA311F 50 Hz transformer Relay drainage Transistor pump power supply Relay heating Triac outlet valve Triac soap dispenser actuator Triac inlet Triac regeneration Relay circulation Triac upper basket valve valve motor actuator Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 50 -...
  • Page 52 Electronics VA301I Buzzer 50 Hz Relay transformer drainage pump Transistor power supply Relay heating Triac outlet valve Triac soap dispenser actuator Triac regeneration Triac inlet Relay circulation Triac upper basket valve valve motor actuator Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 51 -...
  • Page 53 Total failure of the machine may be caused by a poor solder joint on the printed circuit board, especially near the transistor power supply. Not fitting the red jumper may affect the program sequence. Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 52 -...
  • Page 54 Product information VA3.. VA9011XT..ZT..VA..VA(9)6211Q..R..S.. T MPr 28112005 53 -...
